Kwik Lok 086A - Page 33

E
Item
No.
Part
No.

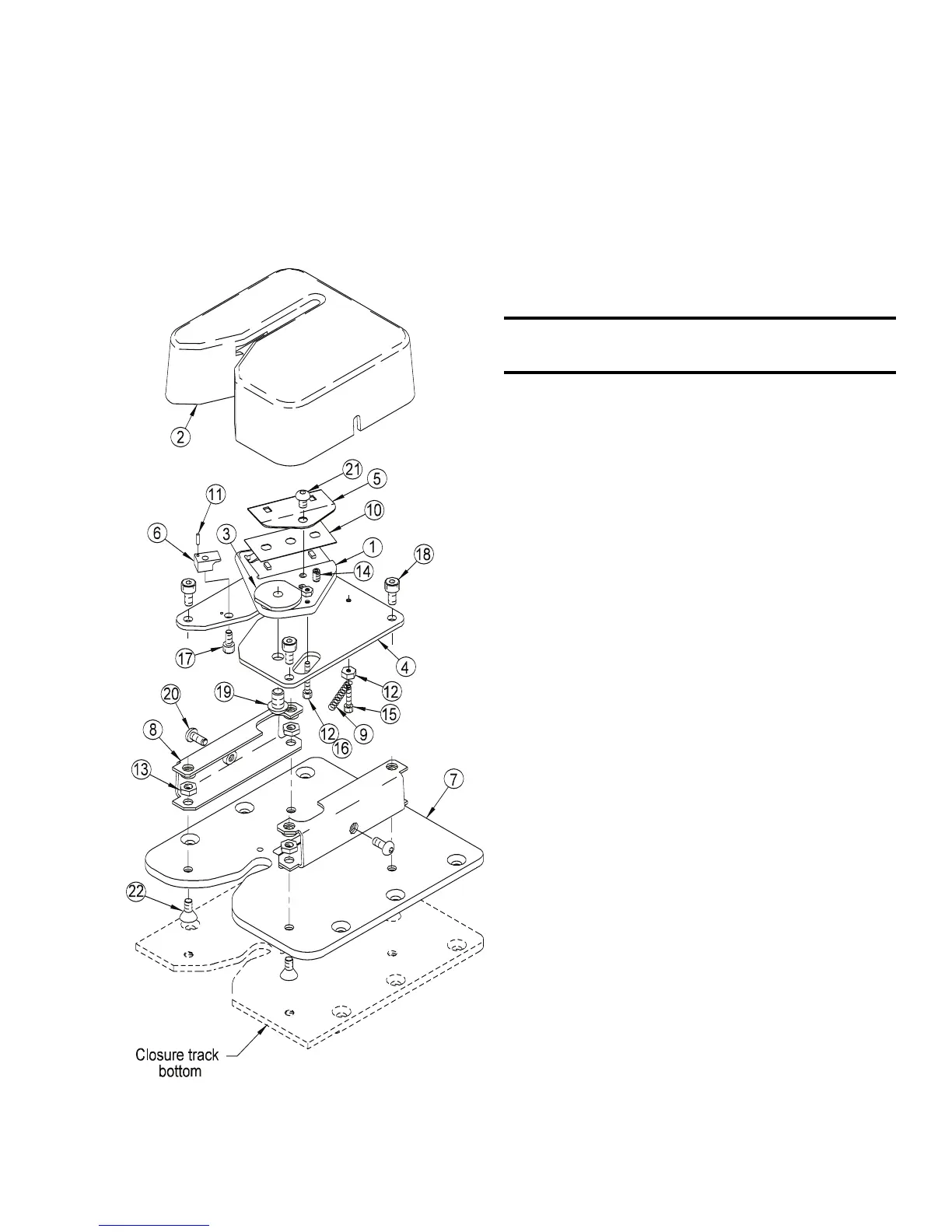

Description Qty.
1 00-001030 Carriage - Blade 1
2 00-001031 Guard 1
3 00-001033 Pivot - Carriage 1
4 00-001034 Plate - Shear Blade 1
5 00-001035 Retainer - Blade 1
6 00-001036 Stop - Carriage 1
7 00-001037 Track - Top - Lok 1
00-001040 Track - Top Label 1
8 00-001039 Mount 2
9 OS-082 Spring 1
10 P17-00123 Blade - Shear 1
11 P23-00216 Pin - 1/16 x 1/4 1
12 P23-00262 Nut - 6-32UNC x 1/4” Hex 2
13 F03-190FS Nut - 10-32UNF - Hex 4
14 F06-190C04N Screw - 10-24UNC x 1/4 Lg
Skt Set 1
15 F10-138C08S Screw - 6-32UNC x 1/2 Lg
Skt Hd Cap 1
16 F10-138C12S Screw - 6-32UNC x 3/4 Lg
Skt Hd Cap 1
17 F10-164C06S Screw - 8-32UNC x 3/8 Lg
Skt Hd Cap 1
18 F10-190F06S Screw - 10-32UNF x 3/8 Lg
Skt Hd Cap 4
19 F10-250F06 Screw - 1/4-28UNF x 3/8 Lg
Skt Hd Cap 1
20 F11-190F06S Screw - 10-32UNF x 3/8 Lg
Skt Btn Hd 2
21 F11-190C03S Screw - 10-24UNC x 3/16 Lg
Skt Btn Hd 1
22 F12-190F06S Screw - 10-32UNF x 3/8 Lg
Skt Flt Hd 4
KIT Z0086007 - TRIMMER - BAG NECK LOK
KIT Z0086008- TRIMMER - BAG NECK LABEL
