Kwikee 888 - Page 11

Rev: 08.04.2017
Page 11
Kwikee® 888 Electric Step Owner's Manual

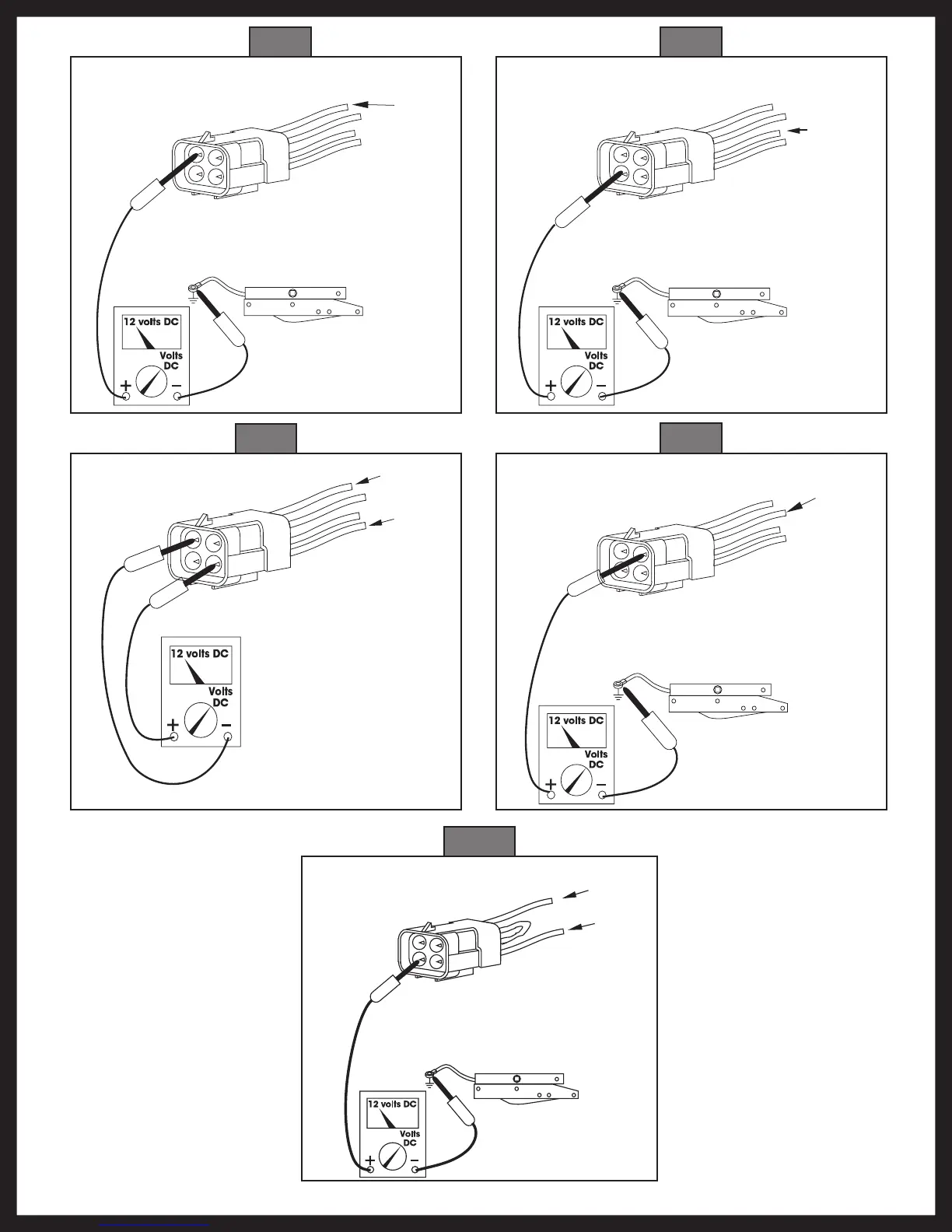

Voltmeter should read
0 volts DC / step
switch Automatic Mode or
12 volts DC / step
switch Lock Position.
White
4-way connector
(vehicle-side)
Ground wire: green ground wire
must be attached to vehicle
chassis; a good ground is needed
for proper step operatio
Fig. 6
Voltmeter should read
12 volts DC when door
is closed
Voltmeter should read
0 volts DC when door
is open
4-way connector
(vehicle-side)
Red
Brow
n
Fig. 7
Fig. 8
Red
4-way connector
(vehicle-side)
Ground wire: green ground wire
must be attached to vehicle
chassis; a good ground is needed
for proper step operation
Voltmeter should
read 12 volts DC
Yellow
4-way connector
(vehicle-side)
Ground wire: green ground wire
must be attached to vehicle
chassis; a good ground is needed
for proper step operation
Voltmeter should read
12 volts DC / ignition 'on'
0 volts DC / ignition 'off'
Fig. 9
Fig. 10
Red
Brow
n
4-way connector
(vehicle-side)
Ground wire: green ground wire
must be attached to vehicle
chassis; a good ground is needed
for proper step operation
Voltmeter should
read 0 volts DC
