Kwikee® 888 Electric Step Owner's Manual
Motor Assembly Identification
NOTE: This information was obtained from Kwikee manual 1422279 Rev OI and manual updates dated
April 2005 through May 2012. This manual does not apply and should not be used as a reference to
previous versions of a Kwikee electric step prior to April 2005.

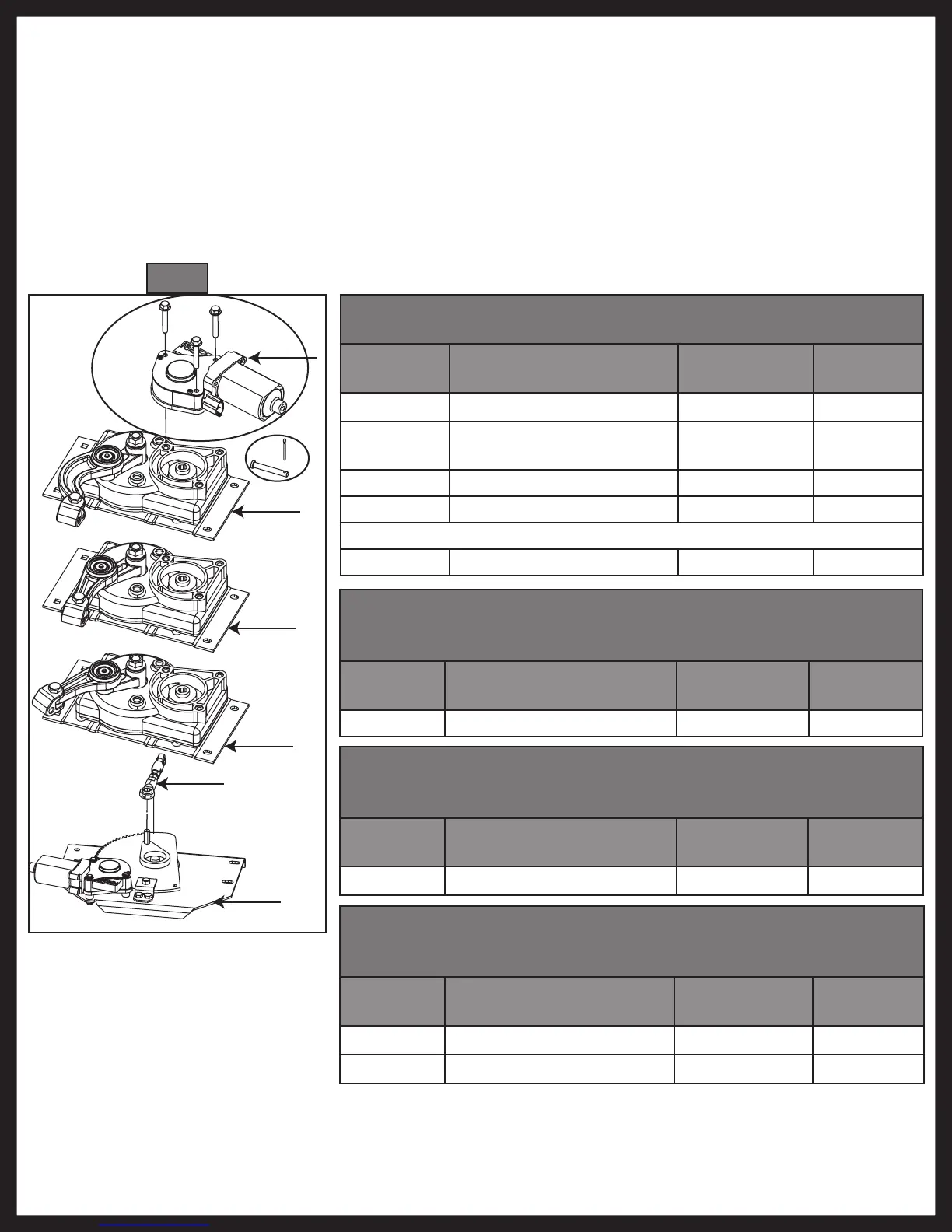

To determine replacement parts, refer to Figure 1 and Replacement Parts Charts 1-4 for your Series Step.
Replacement part numbers for steps equipped with older style motor/gearbox are available on-line.
Replacement Part Chart 1 —
Kits for Series Steps 22, 23, 28A*, 30, 32, 33, 34, 35, 36, 38 and 40
Call-out Description
Kwikee Part
Number
LCI Part
Number
1 Motor and Screws 214 1101428 379147
2
Cotter Pin and Clevis
Pin
905205000 379178
3 Gear/Linkage 'A' Curved 1101425 379160
Step Frame only 9080**000
** Insert 2-digit Step Series number
Step Light 909004000 379414
Replacement Part Chart 2 —
Kits for Series Steps 28, 31, 37 and 39
As shown in Chart 1 except for the following:
Call-out Description
Kwikee Part
Number
LCI Part
Number
4 Gear/Linkage 'B' Straight 1101426 379161
Replacement Part Chart 3 —
Kits for Series Steps 26
As shown in Chart 1 except for the following:
Call-out Description
Kwikee Part
Number
LCI Part
Number
5 Gear/Linkage 'C' Straight 1101427 379162
Replacement Part Chart 4 —
Kits for Series Steps 24 and 25
As shown in Chart 1 except for the following:
Call-out Description
Kwikee Part
Number
LCI Part
Number
6 Link/Assembly 24 / 25 3380050 369488
7 Motor Table 24 / 25 3392152 369529
Fig. 1
1
2
3
4
5
6
7
28A* is Step Part Number 902829000
