Kwikset SMARTCODE - Page 11

11
B
C D

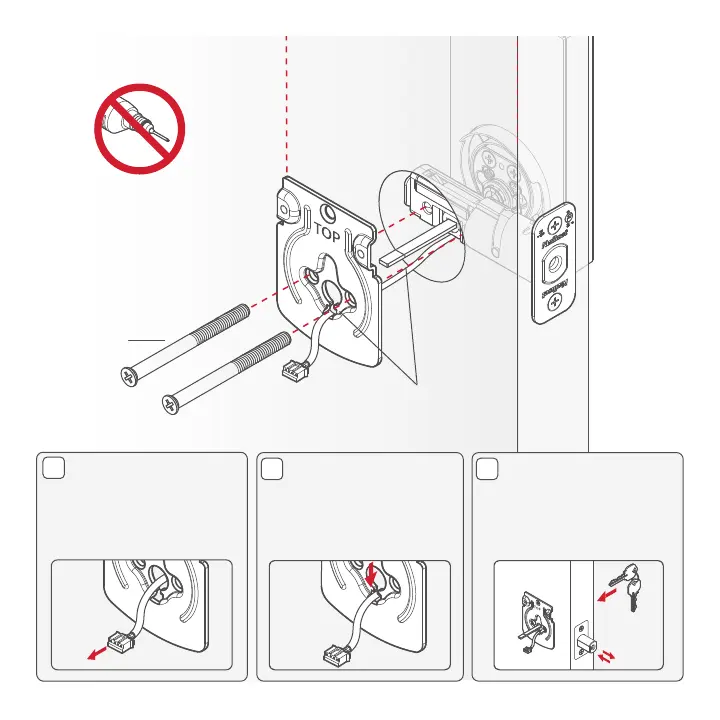

Install the exterior assembly
[INSIDE]
Tighten the screws evenly.
DO NOT over-tighten.
Make sure the flat
blade is centered in the
mounting plate hole.
Keep parallel to
the door edge
Route the cable
through the
center hole of the
mounting plate.
Push the cable into
the bottom hole of
the mounting plate.
Insert the key and test
the latch. If the latch
does not extend or
retract smoothly, adjust
the screws. Leave bolt
LOCKED/EXTENDED.
52367
(2X)
TOP on the
mounting plate
should be visible
