Kwikset SMARTCODE - Page 13

13
A
C
B

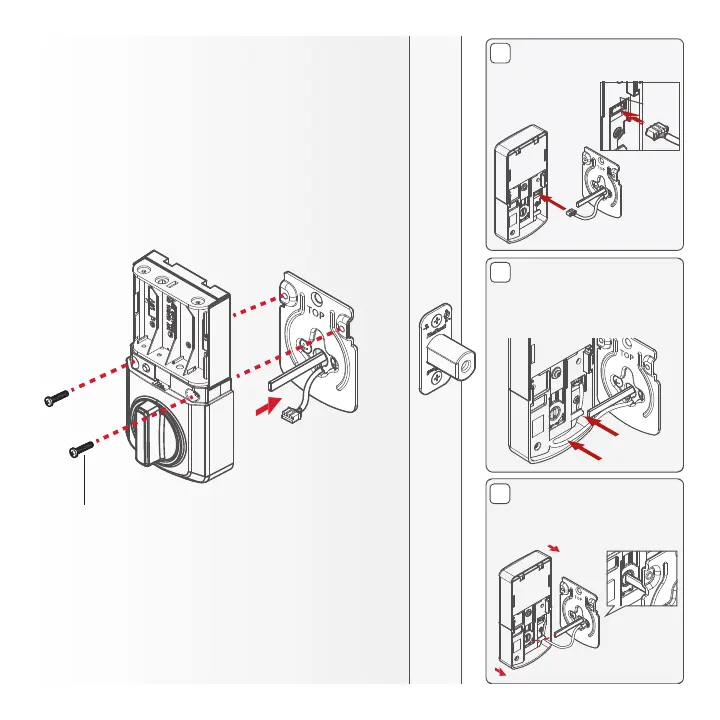

Secure the interior assembly
onto the mounting plate.
Connect the cable.
Ensure a tight cable
connection.
Route cable around
the side notch and
bottom of the interior
assembly.
Insert the flat blade
into the turnpiece shaft.
[INSIDE]
52502
(2X)
