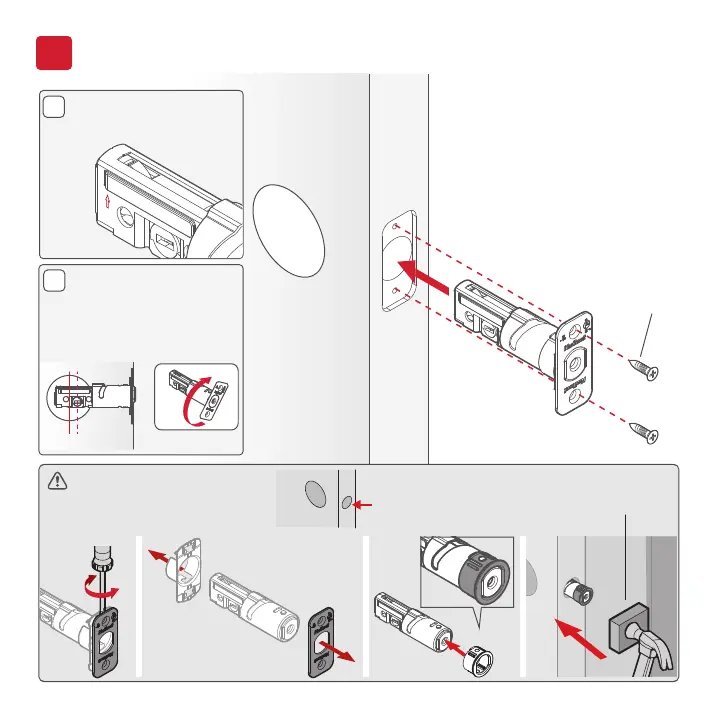

Kwikset SMARTCODE - Install the Latch

8
B
UP
A
*Use the longer
screws if the holes
are worn out.
You will have two
extra screws.
If the rectangle shaped
hole is not centered in
the door hole, rotate
the latch face to extend
the latch.
03809*
(2X)
If your door is not chiseled,
install the drive-in collar.
1
Install the latch
[OUTSIDE]
UP is on top.
wood block
