4

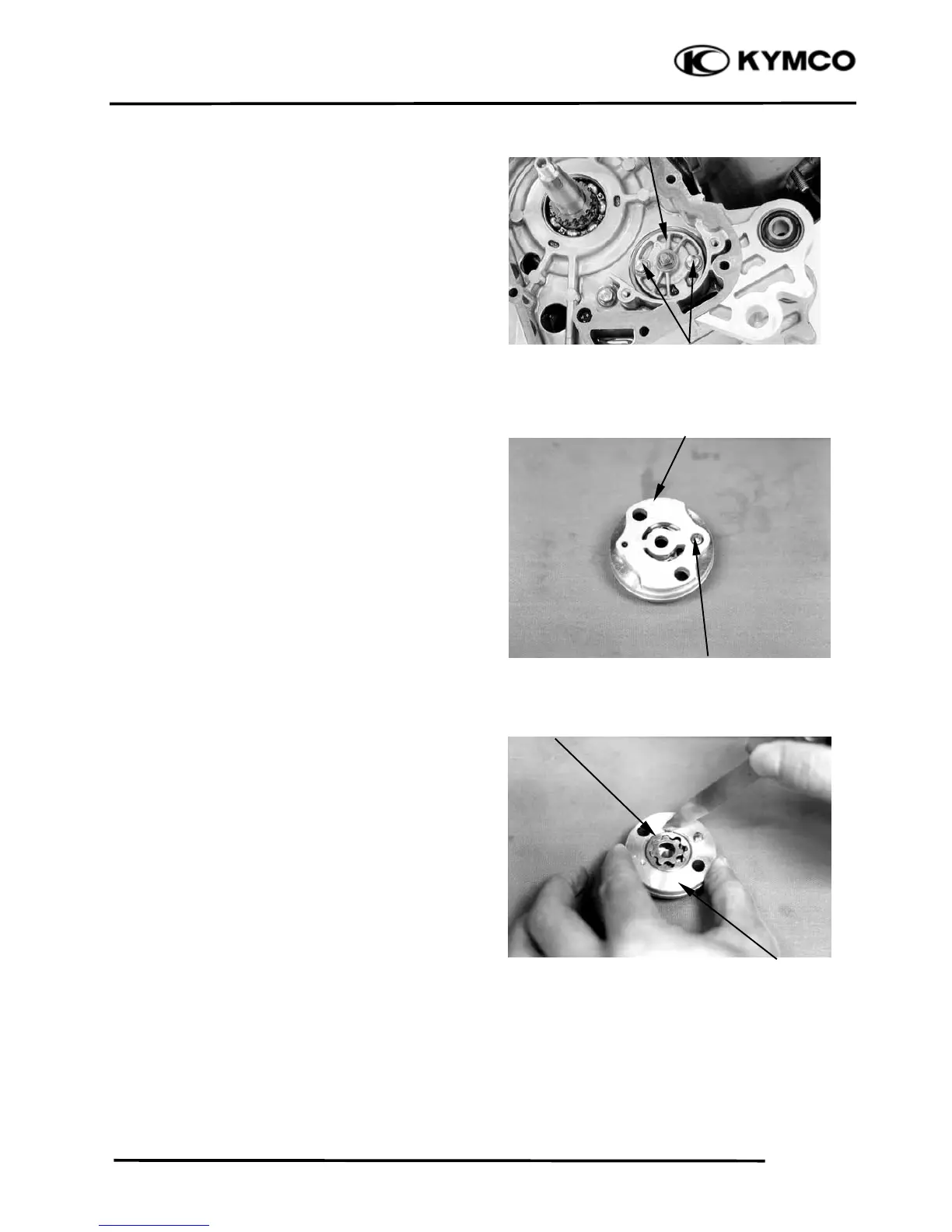

. LUBRICATION SYSTEM
4-6
Oil Pump
Bolts
Outer Roto
r
Oil Pump Body
Screws
Remove the two oil pump m
ounting bolts
and the oil pump.
DISASSEMBLY
Remove the screw and disassemble the oil
pump.
INSPECTION
Measure the pump body-to-outer rotor
clearance.
Service Limit:
0.25 mm (0.01 in)
Oil Pump Body
73
75
