5. FUEL SYSTEM
5-4

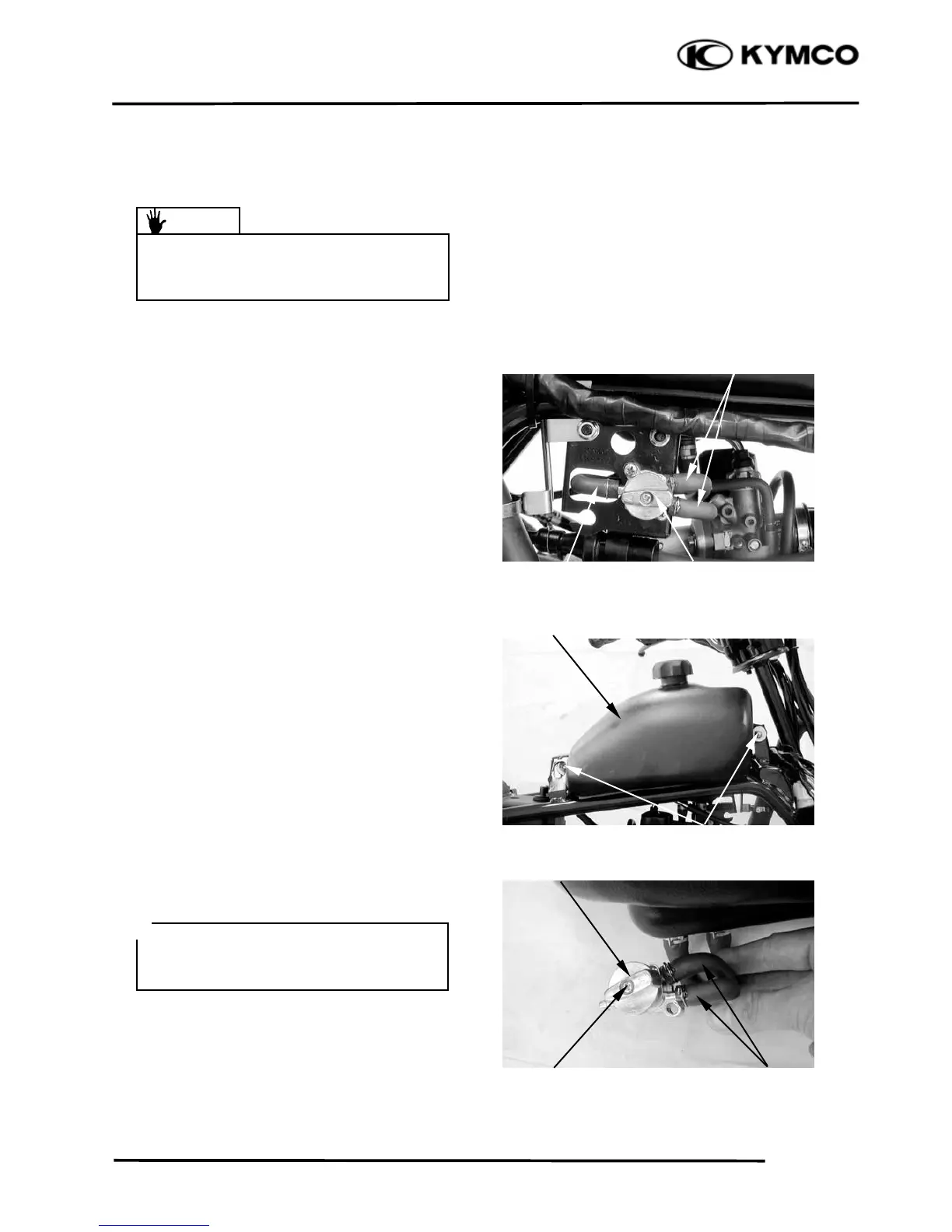

FUEL TANK
REMOVAL
Remove front fender (See page 2-5).
Switch the fuel valve “OFF”.
Disconnect the fuel outlet tube from fuel
valve.
Remove two screws attaching the fuel valve
and holder.
Remove the two bolts and then remove the
fuel tank.
INSTALLATION
Reverse the “FUEL TANK REMOVAL”
procedures.
FUEL VALVE
REMOVAL
Remove the screw and then remove control
switch.
Disconnect all fuel tubes and then remove
fuel valve.
Warnin
Fuel Tank
Screw
Fuel Valve
Bolts
Fuel Outlet Tube
• Keep sparks and flames away from the
work area.
• Wipe off any spilled gasoline.
Control Switch
Fuel Tubes
Screws
• Keep sparks and flames away from the
work area.
• Drain gasoline into a clean container.
＊
To Next Page
