KYMCO NEXXON 50 Service Manual

9. CLUTCH/GEAR SHIFT MECHANISM
9-12
NEXXON 50

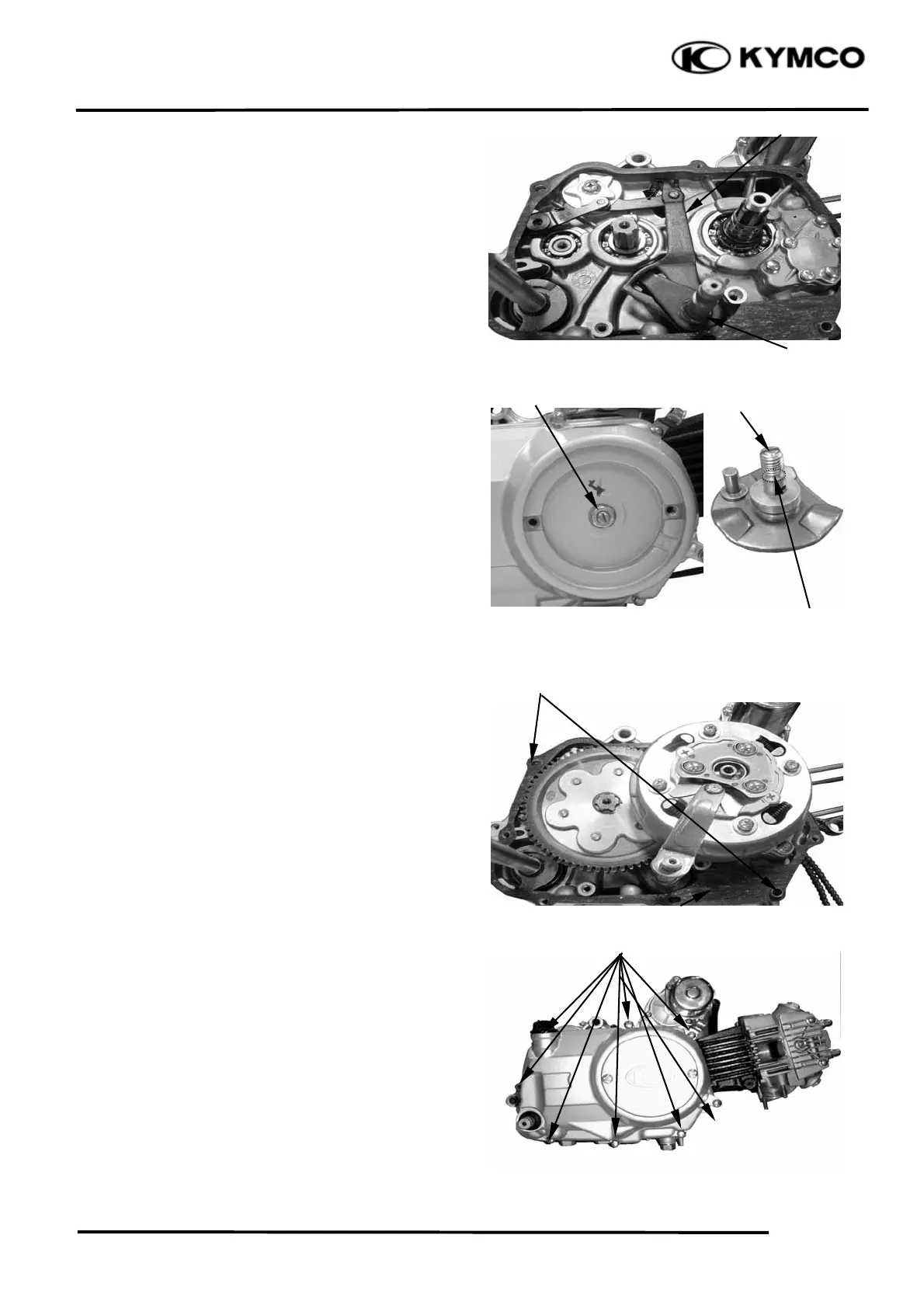

Install the gear shift spindle and washer.
During installation, make sure that the return
spring aligns with the crankcase tab.
RIGHT CRANKCASE COVER
INSTALLATION
Install the new O-ring and lock nut.
Install the dowel pin and a new gasket.
Install the right crankcase cover and tighten
the cover bolts.
Install the kickstarter pedal.
Adjust the clutch (page 2-8).
Gear Shift Spindle
Spring
Adjusting Bol
t
Lock Nu
t
O-ring
Dowel Pins
Gaske
t
Bolts

KYMCO NEXXON 50 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	49.5 cc
Fuel System	Carburetor
Brakes (Front)	Disc
Brakes (Rear)	Drum
Front Suspension	Telescopic Fork
Front Tire	120/70-12
Rear Tire	130/70-12
Starter	Electric & Kick
Transmission	CVT
Engine	4-Stroke
