KYMCO NEXXON 50 Service Manual

8. ALTERNATOR/STARTER CLUTCH/
9. CAM CHAIN TENSIONER
8-4
NEXXON 50

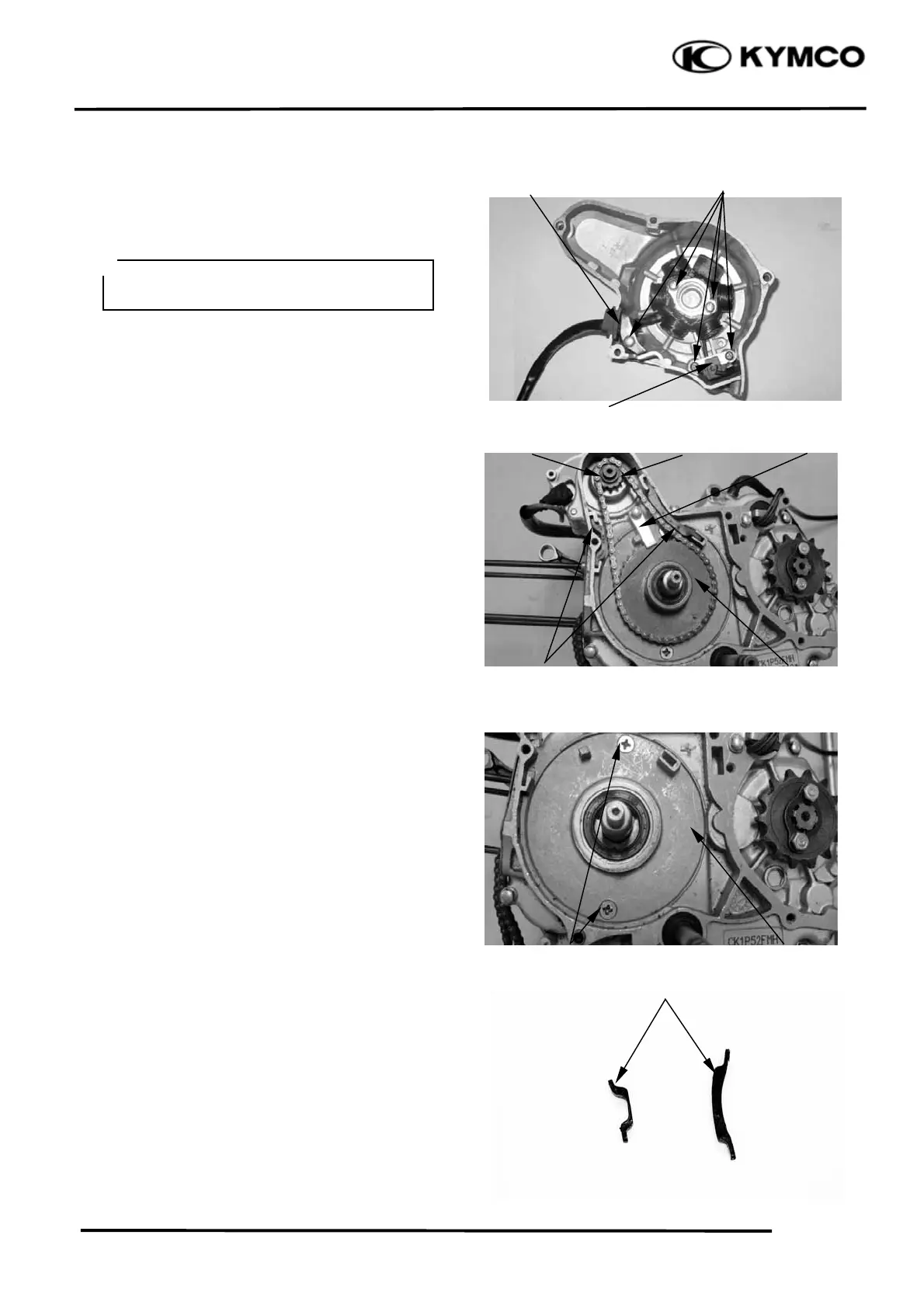

Remove the clamp.
Remove the five bolts and alternator stator
base from the crankcase cover.
STARTER CLUTCH REMOVAL
REMOVAL
Drain the engine oil (page 3-3)
Remove the alternator (page 8-3)
Remove the stopper plate and chain sliders.
Remove the snap ring.
Remove the chain, starter drive sprocket and
driven sprocket as an assembly.
Remove the two screws, base plate and three
O-rings.
INSPECTION
Inspect the chain sliders for wear or damage.
Replace them if necessary.
Bolts
Clamp
Chain Sliders
Stator Base
• Do not disassemble the stator and pulse
generator coils.
＊
Sna
p
Rin
g
Drive Sprocke
t
Stopper Plate
Chain Sliders
Driven Sprocke
t
Screws Base Plate

KYMCO NEXXON 50 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	49.5 cc
Fuel System	Carburetor
Brakes (Front)	Disc
Brakes (Rear)	Drum
Front Suspension	Telescopic Fork
Front Tire	120/70-12
Rear Tire	130/70-12
Starter	Electric & Kick
Transmission	CVT
Engine	4-Stroke
