KYMCO NEXXON 50 Service Manual

11. FRONT WHEEL/SUSPENSION/
STEERING
11-16
NEXXON 50
INSTALLATION
Install the front shock absorbers onto the
steering stem.
Tighten the lower mount bolts.
Install the front fender.
Install the front wheel.

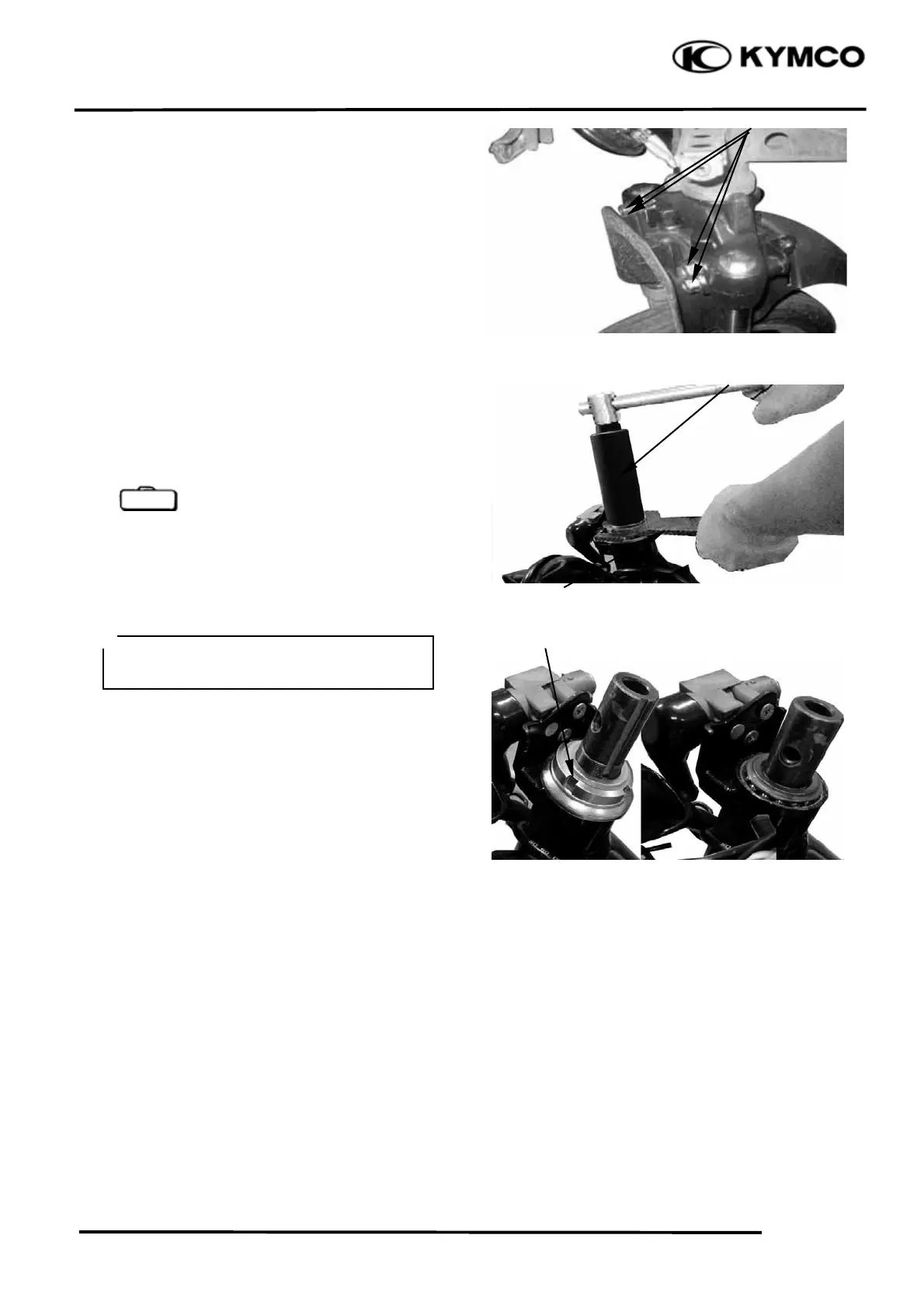

STEERING STEM
REMOVAL
Remove the steering handlebar.
Disconnect the speedometer cable and front
brake fluid pipe and remove the front brake
caliper.
Remove the front wheel.
Hold the steering stem top cone race and
remove the steering stem lock nut.
Lock nut socket wrench
Remove the top cone race and remove the
steering stem.
Inspect the ball races, cone races and steel
balls for wear or damage.
Replace if necessary.
Bolts
Be careful not to lose the steel balls (26
on top race and 19 on bottom race).
＊
Lock Nut Socket Wrench
Top Cone Race
Lock Nut Wrench
Special

KYMCO NEXXON 50 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	49.5 cc
Fuel System	Carburetor
Brakes (Front)	Disc
Brakes (Rear)	Drum
Front Suspension	Telescopic Fork
Front Tire	120/70-12
Rear Tire	130/70-12
Starter	Electric & Kick
Transmission	CVT
Engine	4-Stroke
