14. BATTERY/CHARGING SYSTEM/
A.C. GENERATOR
14-9
PEOPL E 12 5/150

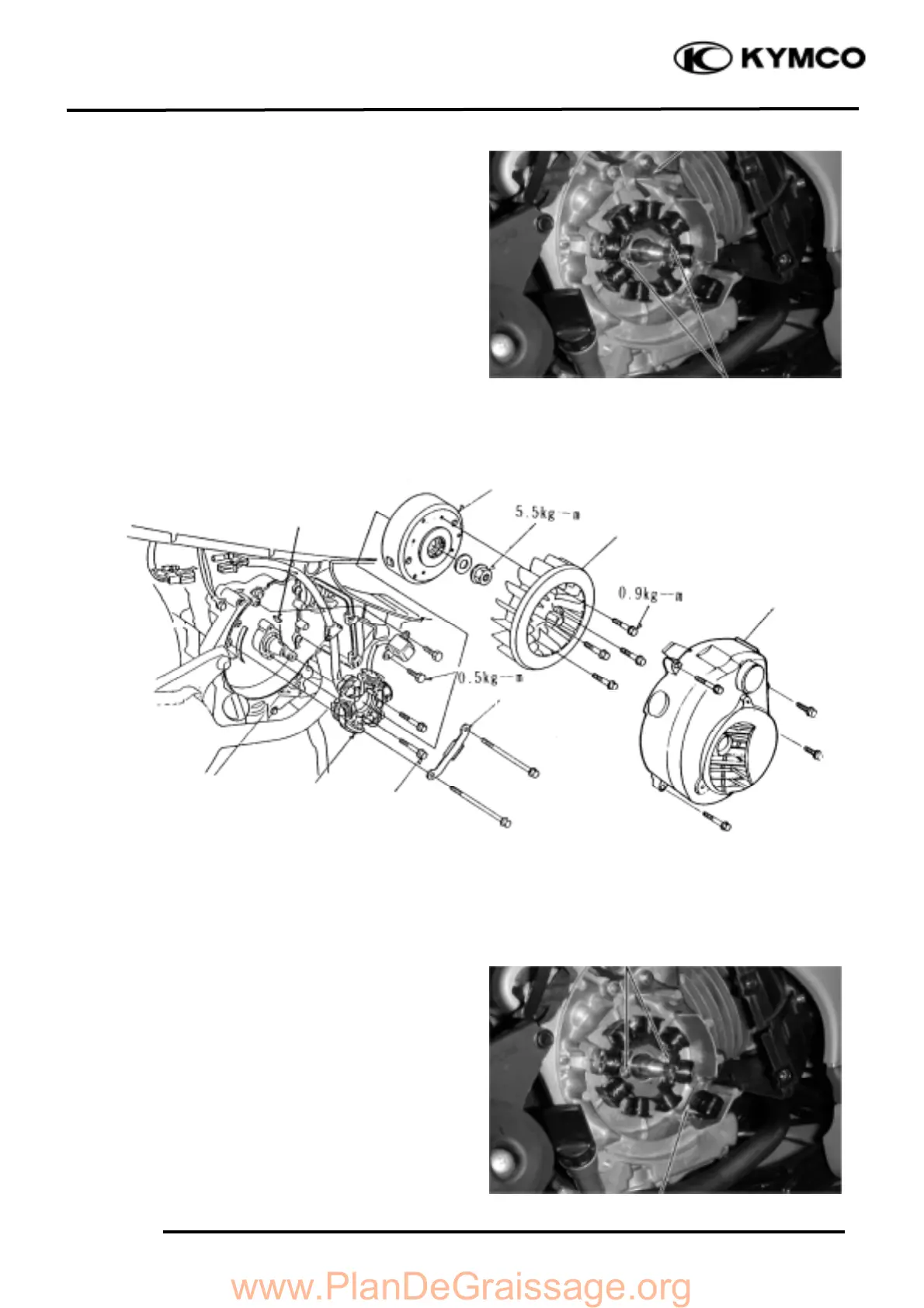

Remove the A.C. generator wire set plate.
Remove the pulser coil bolts.
Remove the A.C. generator wire rubber sleeve
and pulser coil from the right crankcase.
Remove the two bolts and A.C. generator
stator.
INSTALLATION
Install the A.C. generator stator and pulser
coil onto the right crankcase.
Tighten the stator and pulser coil bolts.
Torques: Pulser Coil: 0.5kg-m
Stator : 0.9kg-m
Install the A.C. generator wire rubber sleeve
and A.C. generator wire set plate.
A.C. Generator Wire
Rubber Sleeve
Bolts
Wire Set Plate
Woodruff Key
Flywheel
Cooling Fan
Fan Cover
Stator
A.C. Generator
Wire Set Plate
Bolts
Pulser Coil Set Plate
