KYMCO PEOPLE 150 User Manual

5. FUEL SYSTEM
5-6
PEOPL E 12 5/150

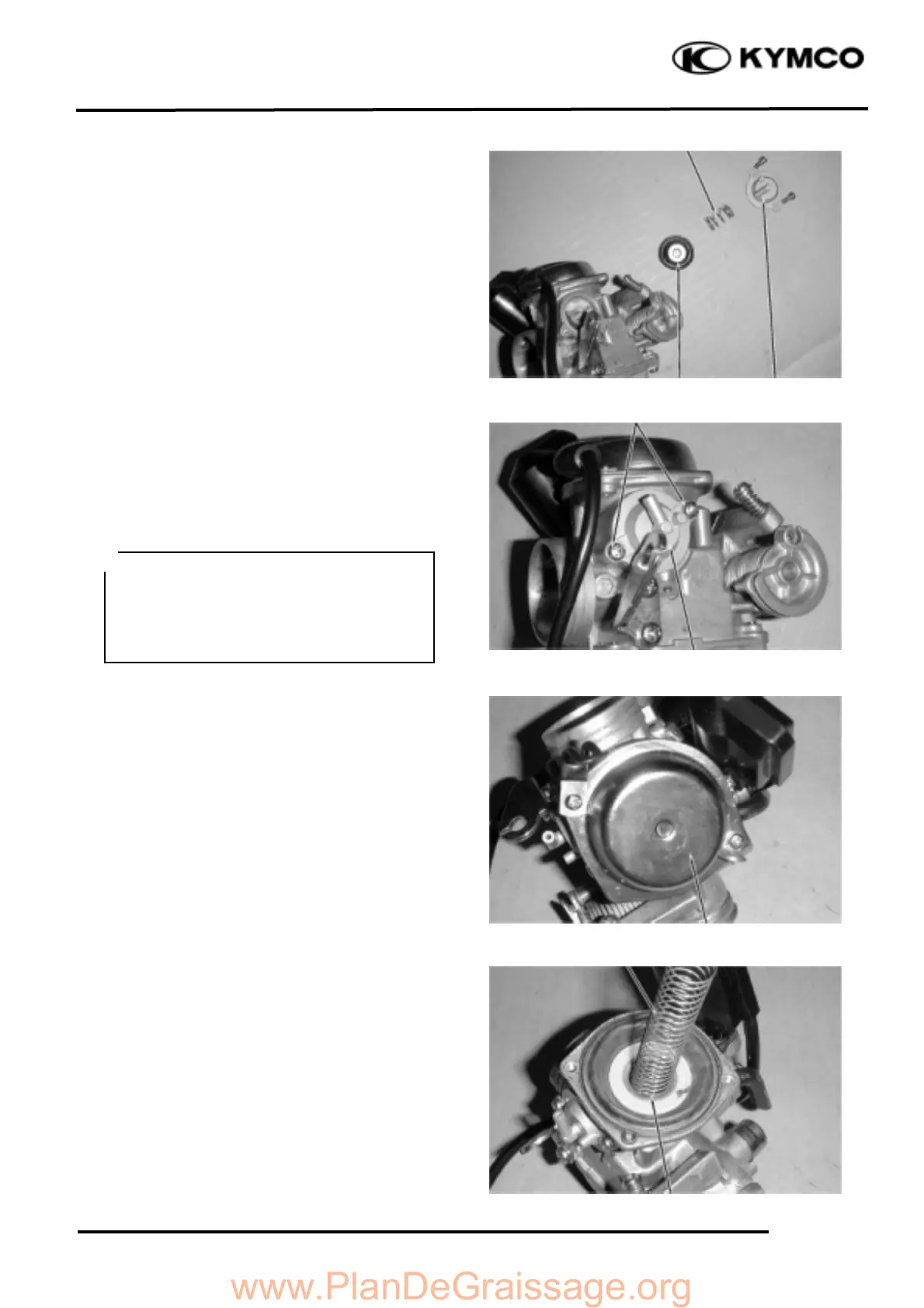

AIR CUT-OFF VALVE
DISASSEMBLY
Disconnect the vacuum tube from the air cut-
off valve.
Remove the two screws to remove the air cut-
off valve cover, spring and vacuum
diaphragm.
ASSEMBLY
Install the vacuum diaphragm onto the
carburetor.
Install the spring and air cut-off valve cover
and then tighten the two screws.
VACUUM CHAMBER
DISASSEMBLY
Remove the two vacuum chamber cover
screws and the cover.
Remove the spring and vacuum diaphragm/
piston.
Spring
Screws
Vacuum Diaphragm
• Be sure to set the vacuum diaphragm
lip into the groove on the carburetor.
• When installing the air cut-off valve
cover, make sure that the vacuum
diaphragm is properly installed.
＊
Air Cut-off valve
Cover
Spring
Vacuum Chamber Cover
Air Cut-off valve Cover
Set Plate
www.PlanDeGraissage.org

KYMCO PEOPLE 150 Specifications

General

Ignition	CDI
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Fuel Capacity	7.5 Liters
Wheelbase	1380 mm
Cooling System	Air Cooled
Starter	Electric
Transmission	CVT
