Troubleshooting > Clearing Paper Jams

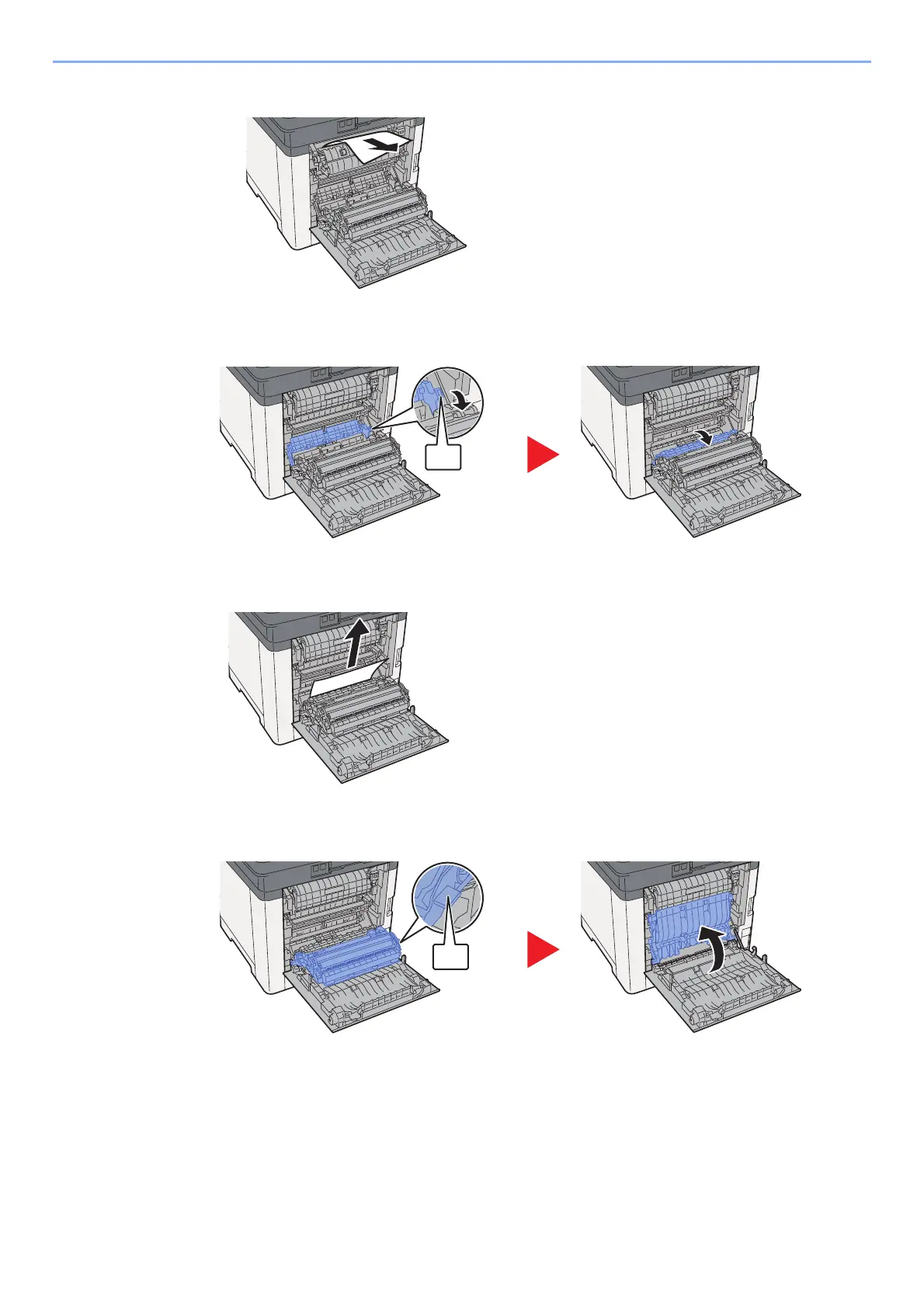

Remove any jammed paper.

Open the feed cover (B).

Remove any jammed paper.

Open the duplex unit (C).
