Troubleshooting 4-15

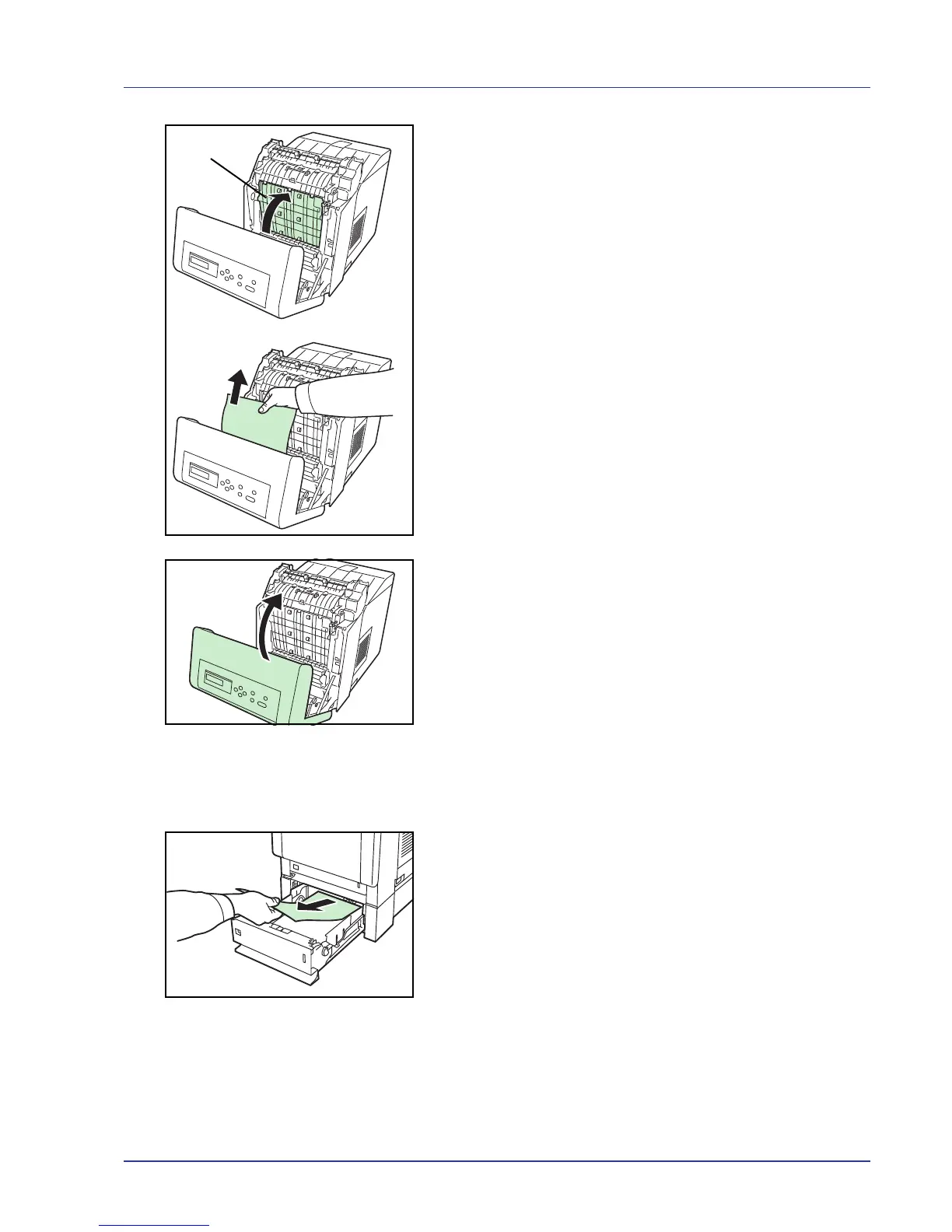

If the paper has jammed inside the duplex unit, as shown in C, lift the
duplex unit and remove the paper by holding it in the middle.
4 Close the front cover.
Paper Jam at Cassette 2 (to 4)
Paper is jammed at the paper cassette. Remove the jammed paper using
the procedure given below.
Pull out the paper feeder and remove the jammed paper.
To Next Page
