2HL/2HM/2HN
1-5-7
5. Open the front cover.
6. Remove the two screws and then remove
the right upper cover.
7. Slide the right front cover and then remove
it.

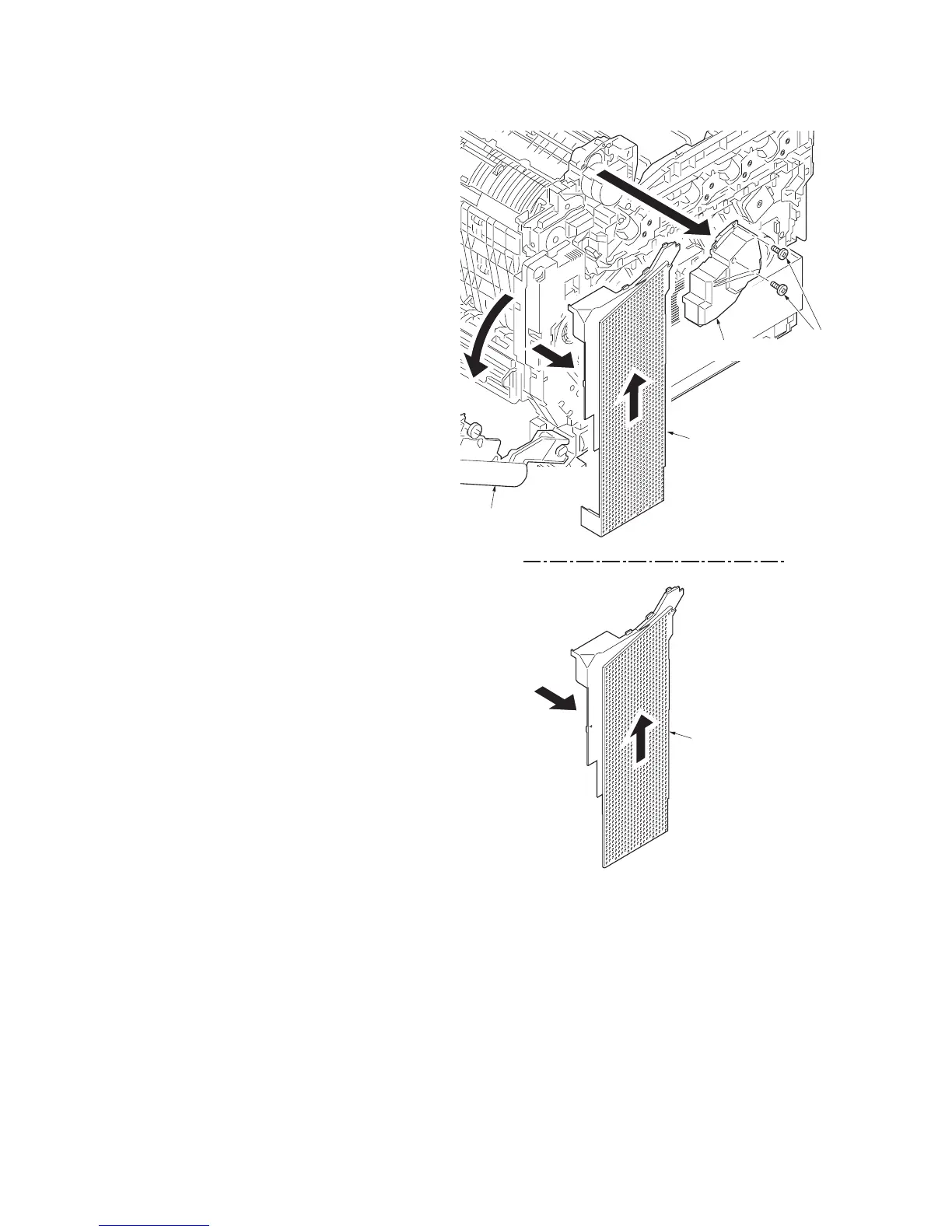

Figure 1-5-7
Right front cover
Right front cover
Front cover
Right upper cover
Screw
s
26/28 ppm (500-sheet) model
21/23 ppm (500-sheet) model
21/23 ppm (250-sheet) model
