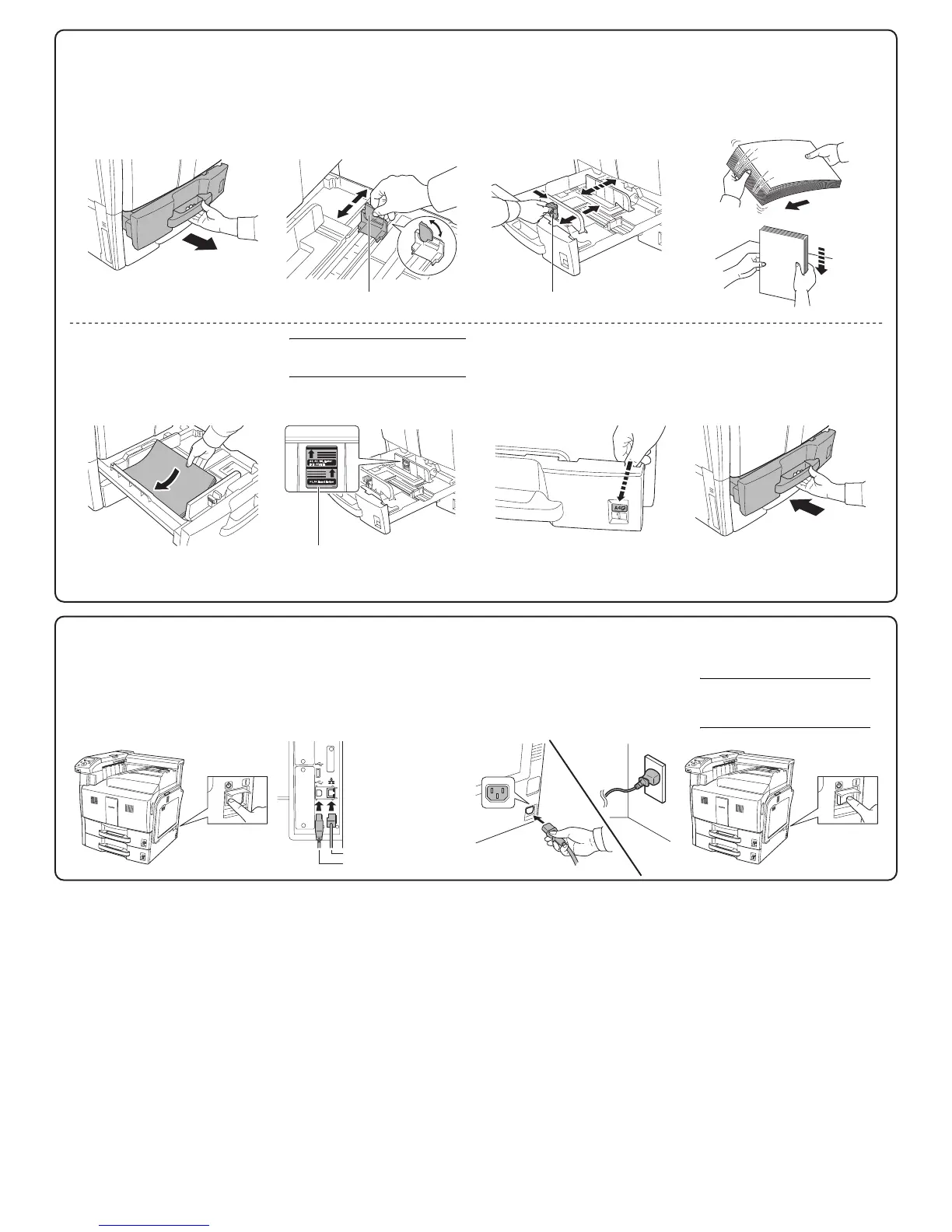

Kyocera FS-C8500DN Installation Guide

Pull the paper cassette out toward you
until it stops.
Paper Width Adjustment Knob
Loading Paper
Fan the paper, then tap it on a level
surface to avoid media jams or skewed
printing.
Grasp the paper width adjustment
knob and adjust the paper width guides
to the width of the paper.
Adjust the paper length guide to the
length of the paper.
When loading A4/Letter or smaller paper
into paper cassette 1, raise the paper
length guide. For B4/Legal or larger
paper, lower the paper length guide.
Paper Length Guide
Align the paper against the left side of
the paper cassette.
Important: Ensure that the loaded paper
is not higher than the level indicator (see
illustration below).
Gently push the paper cassette back
in.
4
2
5
31
7
4
Connect the power cord to the printer
and the other end into a power outlet.
Turn the power switch off (O). Connect the printer to the PC or your
network device. Use shielded interface
cables. These cables are sold
separately.
Connecting Cables
5
132
© 2009 by KYOCERA MITA Corporation All rights reserved. 2-28, 1-Chome, Tamatsukuri, Chuo-ku, Osaka 540-8585, Japan Printed in China 302KA56030 First edition 2009.10
Refer to the Operation Guide to install the printer driver and to set network parameters.
Network Interface
USB Interface
Turn the power switch on (|).
Important: When the printer is first
switched on after installation, the printer
will begin cleaning the LSU; this will take
approximately 70 seconds.
4
Insert the appropriate paper size card
in the slot to indicate the size of the
paper.
6
Level Indicator

Kyocera FS-C8500DN Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	5.2 s
Time to first page (color, normal)	6.7 s
Print speed (black, normal quality, A3)	28 ppm
Print speed (color, normal quality, A3)	25 ppm
Print speed (black, normal quality, A4/US Letter)	55 ppm
Print speed (color, normal quality, A4/US Letter)	50 ppm
Internal memory	1024 MB
Processor model	PowerPC 750GL
Maximum internal memory	2048 MB
Sound power level (standby)	27, 26 dB
Sound pressure level (printing)	55 dB
Total input capacity	- sheets
Total output capacity	500 sheets
Maximum input capacity	100 sheets
Multi-Purpose tray input capacity	4100 sheets
Maximum print size	297 x 420 mm
Paper tray media types	Envelopes, Plain paper
Paper tray media weight	60 - 220 g/m²
Non-ISO print media sizes	Folio (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A3, A4, A5
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A3
Standard interfaces	USB 2.0
USB 2.0 ports quantity	3
Network ready	No
Power requirements	220/240 V, 50/60 Hz
Wireless option type	Wireless LAN (802.11b/g)
Power consumption (active)	1250 W
Compatible operating systems	Windows, Mac OS X 10.2 +, UNIX, LINUX
Maximum duty cycle	150000 pages per month
Recommended duty cycle	25000 pages per month
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	200 W
Power consumption (PowerSave)	15 W
Display	LCD
Certification	GS, TÜV, CE

Weight and Dimensions

Dimensions (WxDxH)	605 x 680 x 691 mm
