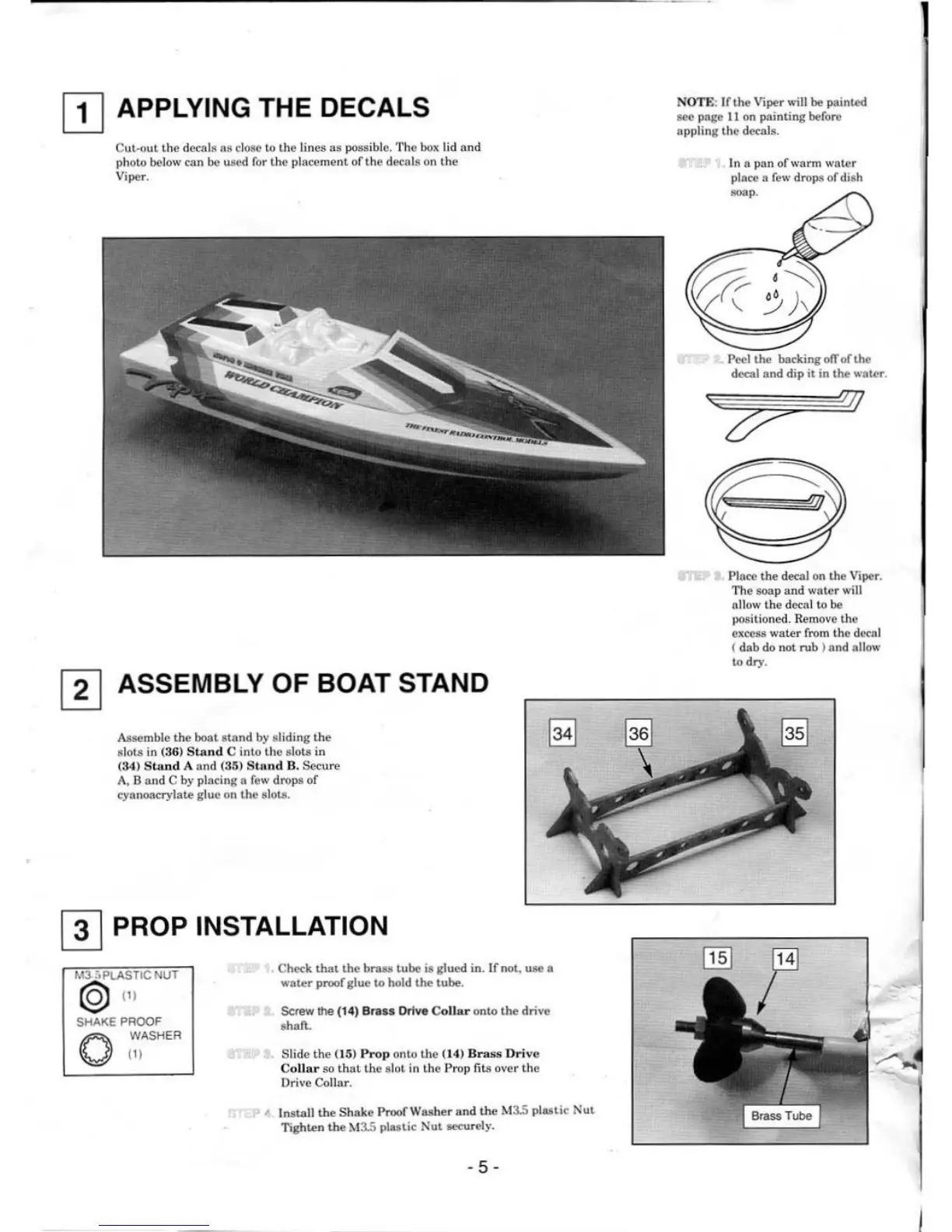

[I) APPLYING THE DECALS
Cut-out th e decals as close to the L ines as po ss ible. Th o box lid and
photo be low can be used for Lhe placement of the decals on the
Viper.
[Ij ASSEMBLY OF BOAT STAND
Assemble the boat stand by sliding the
slots in ( 36 ) Stand C into the slots in
(34) Stan d A and (35) St ond B. Secw·e
A, Band C by placing a few drops of
cyanoacrylate g
lu e on the sl ots .
[Ij PROP INSTALLATION
MJ Z"oP LA STIC NUT
© (1)
SH AKE PROOF
~ WASHER
'V (1)
Check that the bra ss tube is glued in . lf not, use o
water proof glue to hold th e tube .
Screw the
(14) Bn!SS Drive Co ll ar onto the drive
s han.
Slide the ( 15) Po· op o nt o the ( 14) Br ass Dri ve
Collar so that the slot in the Prop fits over the
Drive
Co llar .
'
Lnstall the Shake Proof W as h er and the M3.5 plastic Nut
Tighten the M3.5 plas tic Nut secure!)'·
- 5 -
NOTE : If the Viper will be painted
sec
pag e 11 on painting before
appling
the decals.
In a pan of wa rm water
place a few drops of dish
soap.
Peel
th e backing o fT of th e
dccal and dip it in th e water.
Place
the decal on the Viper.
Th e soap and wnter will
allow the decal to be
positioned. Remove Lhc
excess water from the decal
(
dab do not rub ) and allow
to dry.
