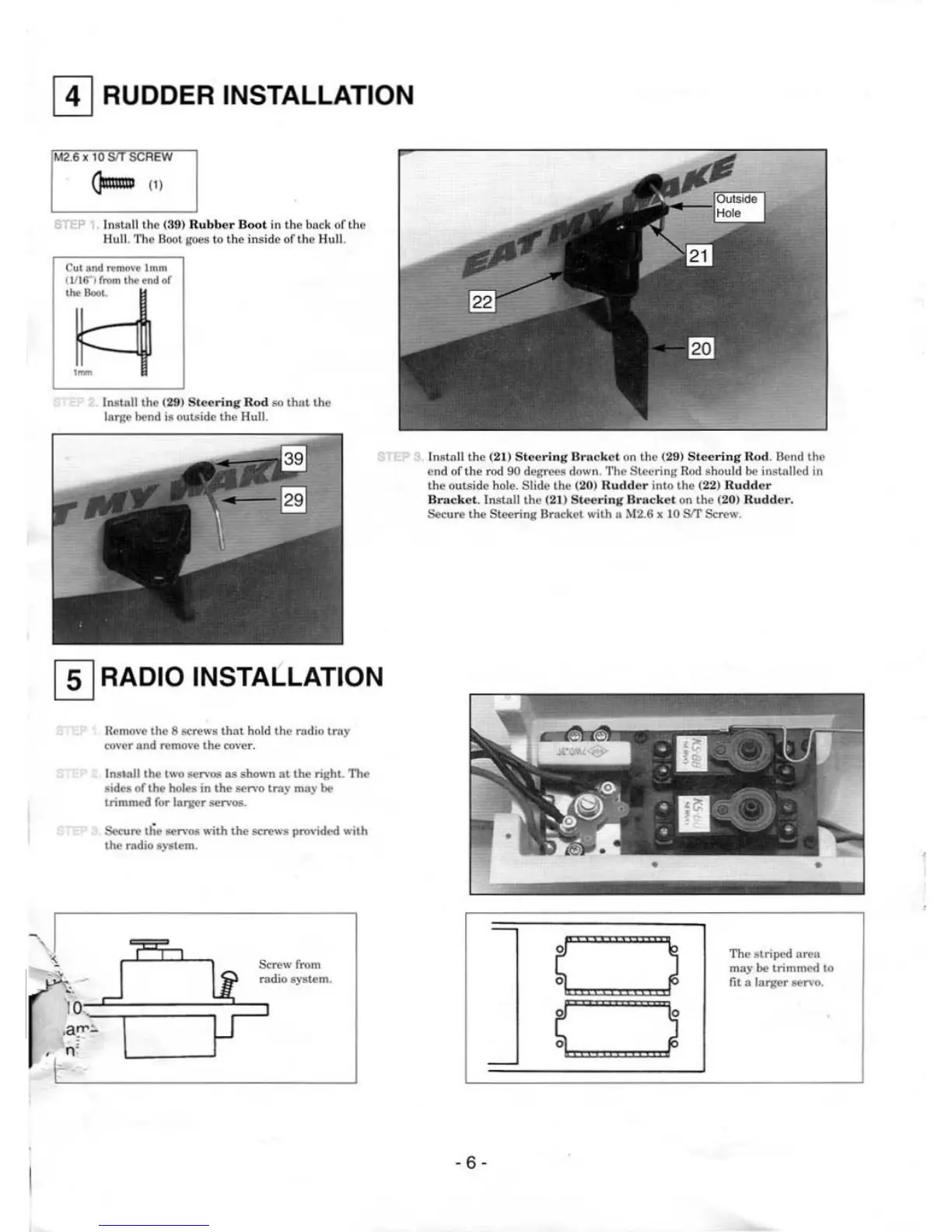

Kyosho VIPER - MODEL ASSEMBLY STEPS (2); RADIO INSTALLATION

•
I
•
(1] RUDDER INSTALLATION
M2.6 x 10 SIT SCREW
~ (1)
1 I"' In stall the {39) Rub b er Boot in the back of the
Hull. The Boot goes to the in si de of the Hull .
Cut ond remove I mm
( 1116 ") rrom the end or
the Boot.
lmm
lnstllllthc (29) Steering Rod so that the
large bend is outside the Hull.
[Ij RADIO INSTALLATION
• a!'f' ~
.
Remove the 8 screws that hold the radio trny
cover and remove the cover.
lnstnllthe two servos as shown at the right . The
sides of the holes in the se.r"o tray may be
trimmed for larger servos.
Secure the sei"'OS with the serews provided with
the radio system.
Screw from
radio system .
I nstall the { 21) Steeri ng Bracket on the (29) Steering RQd. Bend lhe
en d of the rod 90 deg1·ees down. The Stee•·ing Rod sho uld be installed in
the outside hole. Slide the ( 20 ) Rudd er into the ( 22 ) Rudder
Bracket . Install the (2 1) Steeri ng Brack et on the ( 20 ) Rudder .
Secure the Steering Brockel wilh II M2.6 X 10 srr Screw.
0
~
The striped area
~
may be trimmed to
0
fit a larger servo.
0
1
•
0
(0
- 6 -
