L-Acoustics 112XT - 5.2 CPL112 XT, CPL115 XT Coupling Adapter Bar Attachment

L-ACOUSTICS XT Manual V1.1 2/11/2003 38

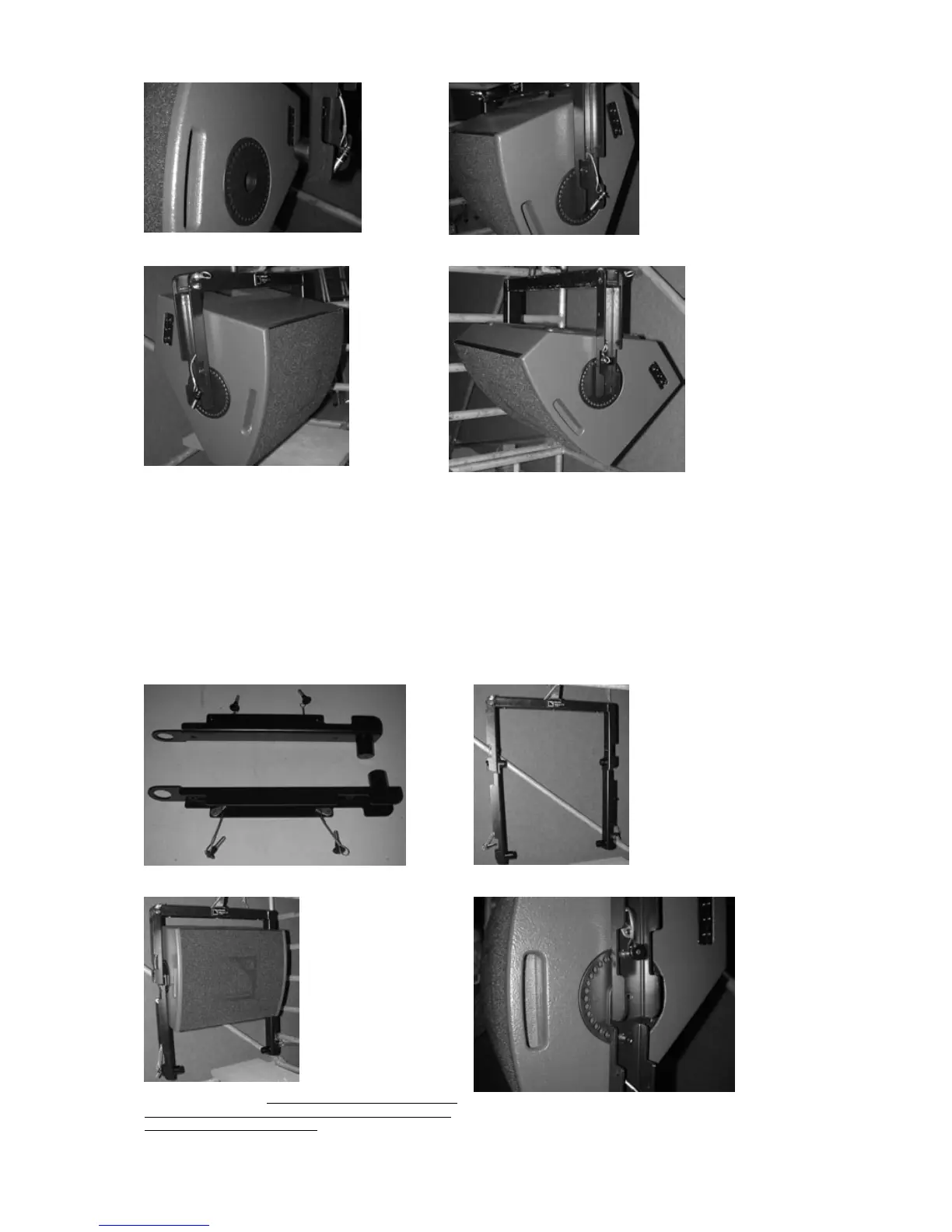

(7) 112XT pole mount sockets mate with U-bracket studs
(8) Mount the 112XT in the fixed arm side first
(9) Rotate the pivoting arm into position – the locking pin
automatically secures the U-bracket
(10) Rotate the loudspeaker into position to select the desired angle. Secure
using the locking pins on both fixed and pivoting arms
Figure 18: ETR112XT, ETR115XT U-bracket installation procedure
5.2 CPL112XT, CPL115XT COUPLING ADAPTER BAR ATTACHMENT
The CPL112XT or CPL115XT coupling adapter bars are optional accessories that can be used in
conjunction with ETR112XT or ETR115XT U-brackets to array two 112XT or 115XT enclosures
vertically (with independent tilt adjustment for both enclosures).
(1) CPL112XT coupling adapter bar kit
(2) CPL112XT pre-installed with ETR112XT
(3) Install the top 112XT. Ensure that the ETR112XT rotating arm
is properly secured by verifying that the spring-loaded locking pin
at the pivot point is correctly seated.
(4) Select angle and secure top locking pins on both sides for the
upper 112XT (do not attach middle locking pins for the CPL112XT)
