L-ACOUSTICS XT Manual V1.1 2/11/2003 7
XT RIGGING ACCESSORIES
(7) ETR112XT
Adjustable U-Bracket for ceiling, wall or scaffold mounting of the 112XT in either horizontal or
vertical orientations
(8) CPL112XT
Coupling adapter bars used in conjunction with ETR112XT to array two 112XT enclosures
vertically with independent tilt adjustment for both enclosures
(9) ETR115XT
Adjustable U-Bracket for ceiling, wall or scaffold mounting of the 115XT in either horizontal or
vertical orientations
(10) CPL115XT
Coupling adapter bars used in conjunction with ETR115XT to array two 115XT enclosures
vertically with independent tilt adjustment for both enclosures
(11) XTLIFTBAR
Allows for single point rigging of 112XT or 115XT loudspeaker enclosures with 5 pick points
available for tilt adjustment
(12) PION 2
Double stud Aeroquip flytrack fitting-to-ring for permanent installation of 112XT or 115XT
enclosures or for use in conjunction with ETR112XT or ETR115XT as a safety attachment
LOUDSPEAKER CABLES
(13) F-CABLE (SP7, SP25)
Loudspeaker cable, 4 conductor, 4mm
2
conductor cross-section, 7 m (20 ft) or 25 m (80 ft)
length, equipped with 2 x Speakon connectors
(14) F-LINK CABLE (SP.7)
Loudspeaker link cable, 4 conductor, 4mm
2
conductor cross-section, 0.7 m (2 ft) length,
equipped with 2 x Speakon connectors (for paralleling XT enclosures).

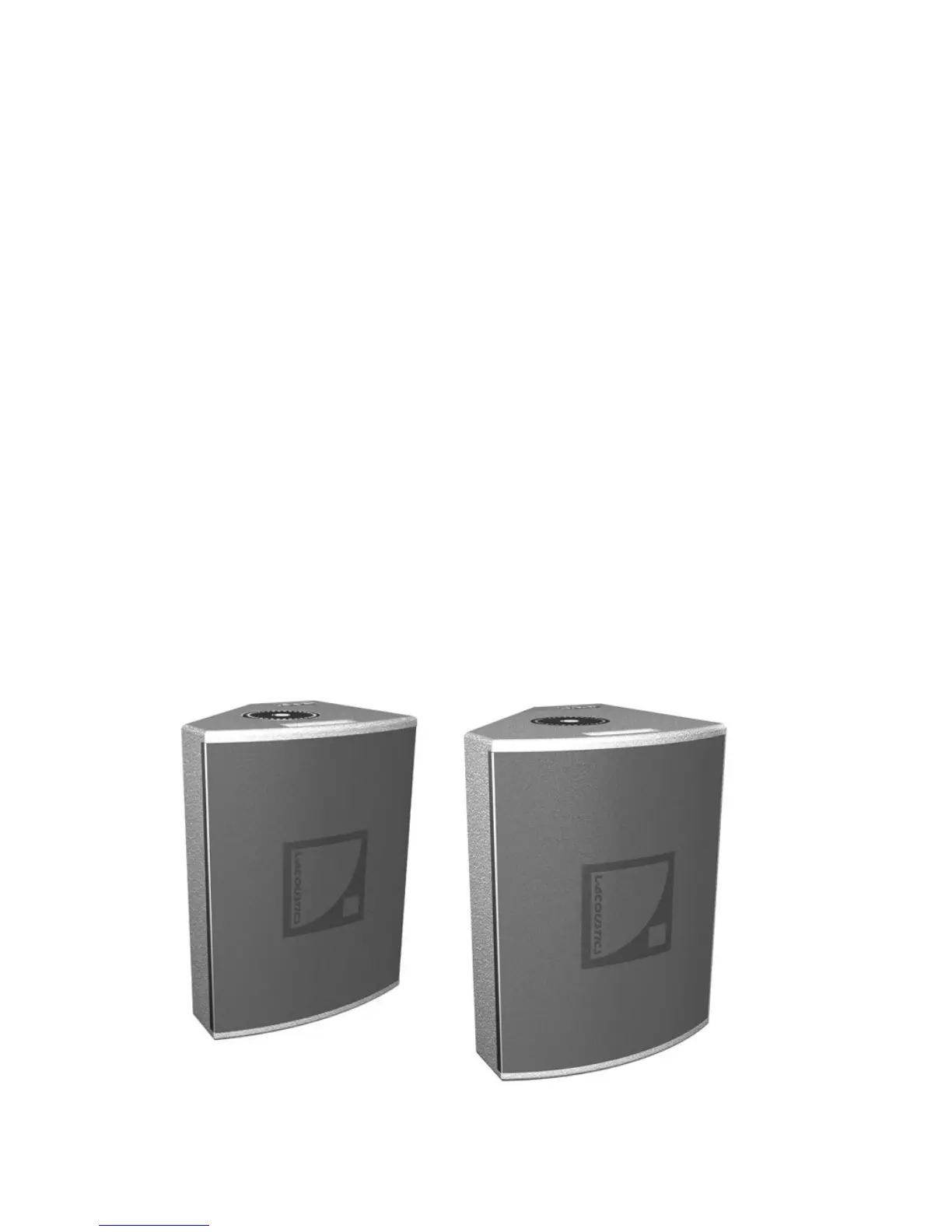

112XT
115XT
