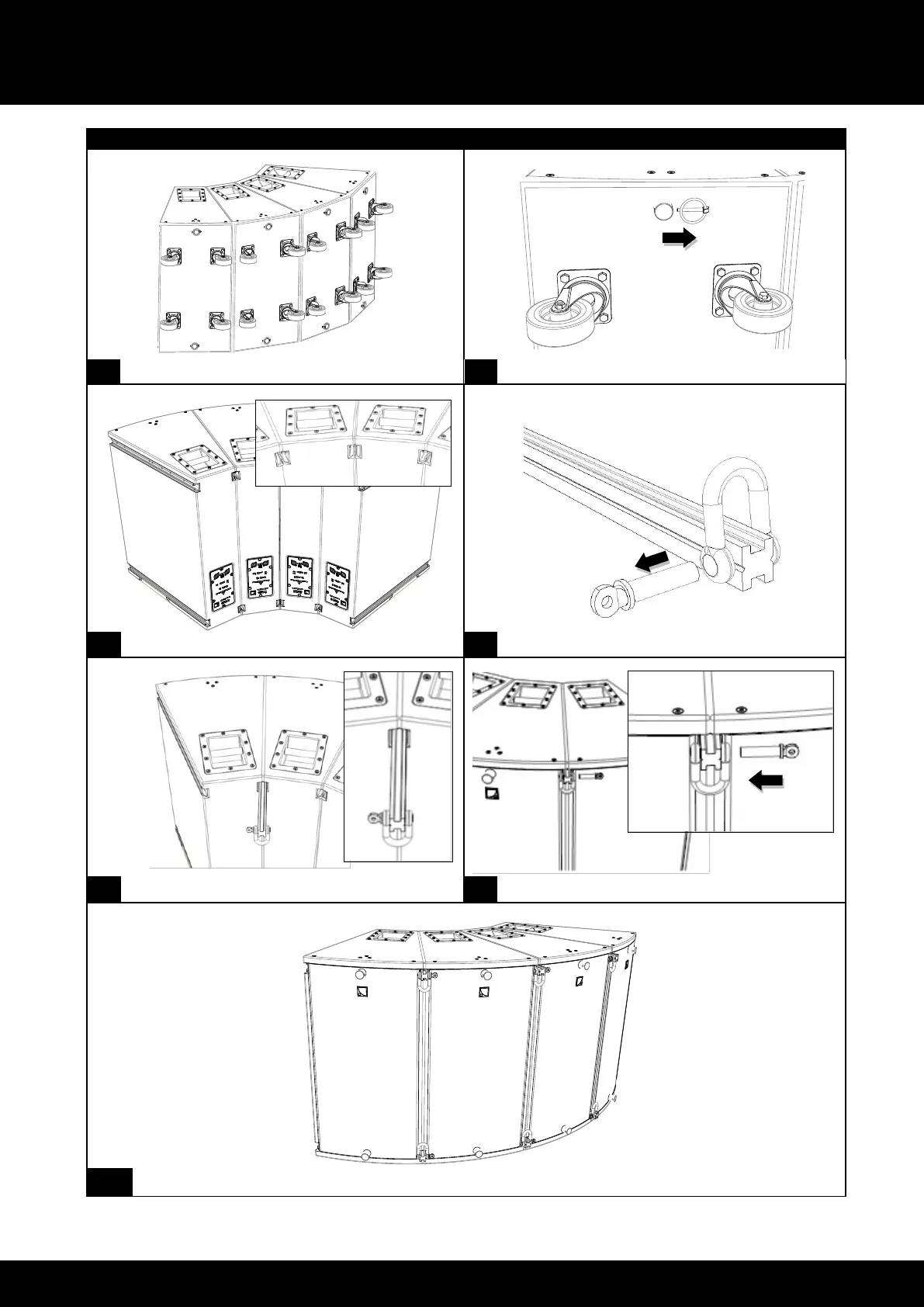

 PROCEDURE A : Assembling an enclosure array
a
Enclosures placed at the rigging position
b
A safety pin being removed to detach the dolly-board
a
Adjacent rigging rails aligned
b
The front shackle being removed from an ARCOUPL bar
c
An ARCOUPL bar being slid from the rear of the array
d
An ARCOUPL bar being secured (schackle Ø12mm)
END
The ARCS
®
II assembly ready for the next procedure
