L-Acoustics MTD112b - Mtd115 B (PASSIVE) FOH SYSTEM (STEREO SUBS); Figure 15 A: Mtd115 B (Passive) FOH System Block Diagram (Stereo Subwoofers); Figure 15 B: Mtd112 B (Passive) FOH System Cabling Detail (Stereo Subwoofers)

L-ACOUSTICS MTD Manual V1.2 11/30/2004 35
4.9 MTD115b (PASSIVE) FOH SYSTEM (STEREO SUBS)

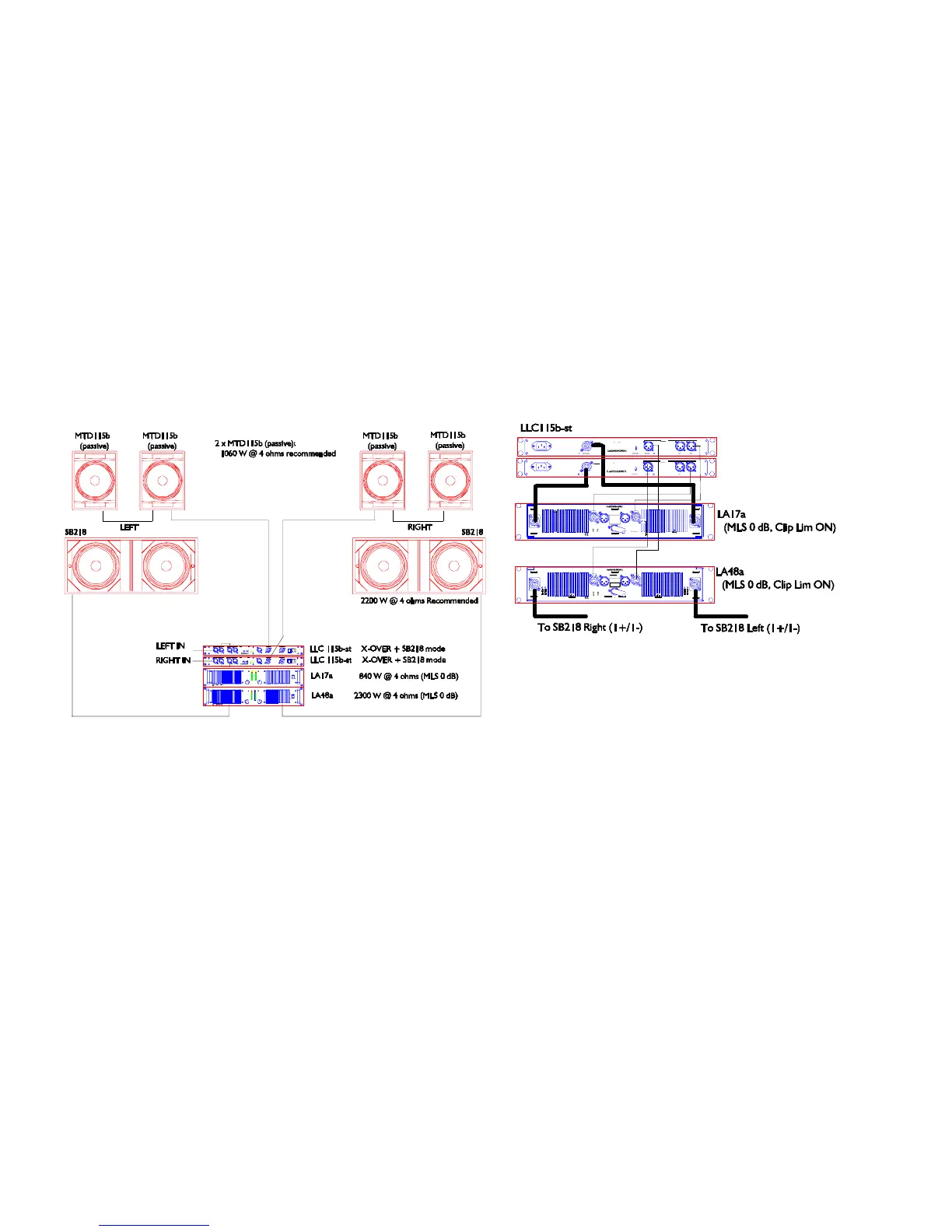

Figure 15a: MTD115b (passive) FOH System Block Diagram (stereo subs)
(note: LLC ChA to ChB link provides +6 dB increase for subwoofer drive)
Figure 15b: MTD115b (passive) FOH System Cabling Detail (stereo subs)
