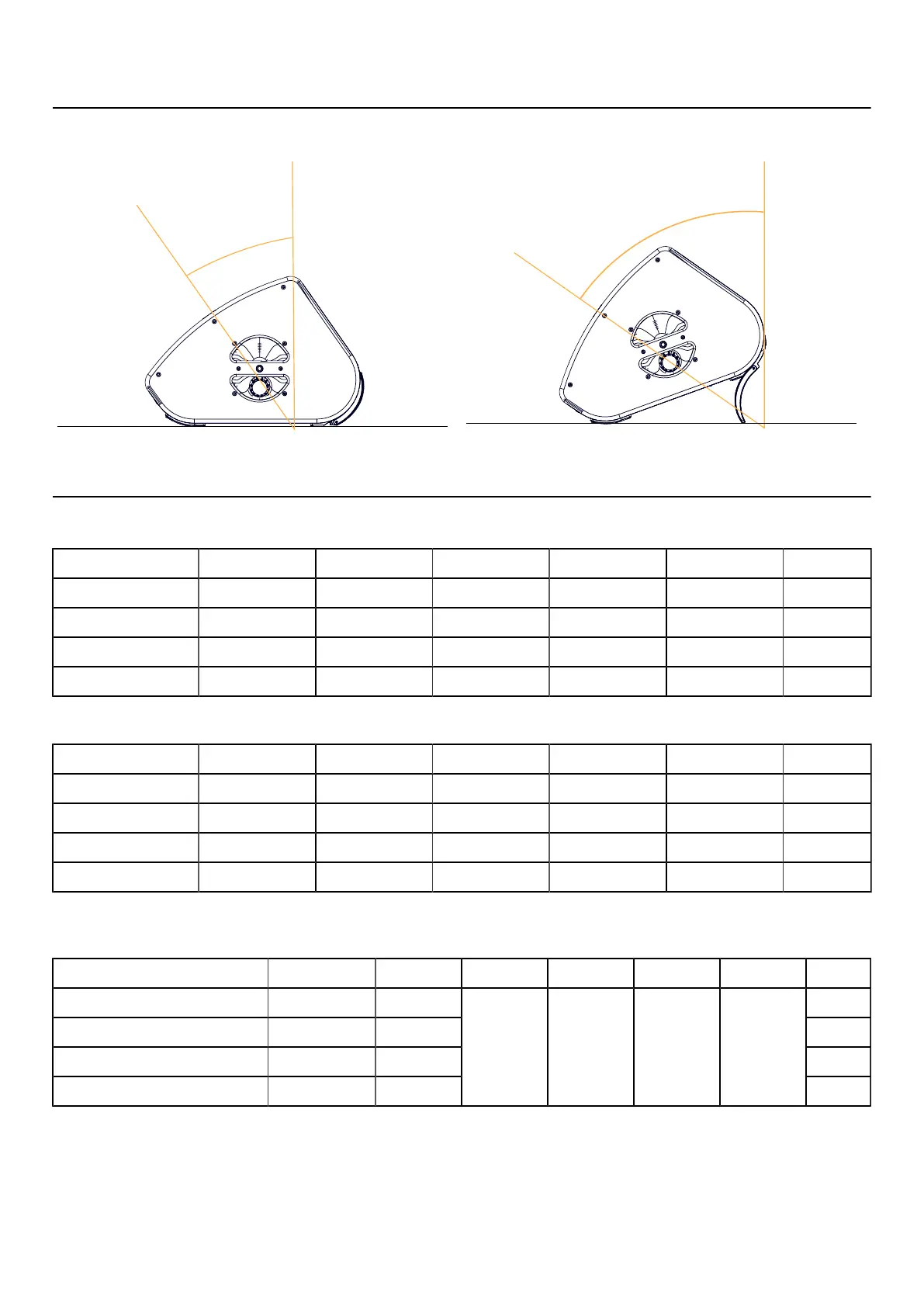

Electro-acoustical description
Monitor angles
X12 system features risers that allow to change the monitor angle from 35° to 55°.
35°
55°
Preset description
[X12] [X12_MO]
outputs channels routing gain delay polarity mute
OUT 1 PA IN A 0 dB 0 ms + ON
OUT 2 PA IN A 0 dB 0 ms + ON
OUT 3 PA IN B 0 dB 0 ms + ON
OUT 4 PA IN B 0 dB 0 ms + ON
[KS21_60] [KS21_100] [SB18_100] [SB15_100]
outputs channels routing gain delay polarity mute
OUT 1 SB IN A 0 dB 0 ms + ON
OUT 2 SB IN A 0 dB 0 ms + ON
OUT 3 SB IN A 0 dB 0 ms + ON
OUT 4 SB IN A 0 dB 0 ms + ON
[KS21_60_C] [KS21_100_C] [KS21_60_Cx] [KS21_100_Cx] [SB18_100_C] [SB18_100_Cx]
[SB15_100_C] [SB15_100_Cx]
loudspeaker elements outputs channels routing gain delay polarity mute
SR OUT 1 SR ON
SB OUT 2 SB ON
SB OUT 3 SB ON
SB OUT 4 SB
IN A 0 dB 0 ms +
ON
12 X12 owner's manual (EN) version 1.0
