L-TEC PCM-70 - Specifications

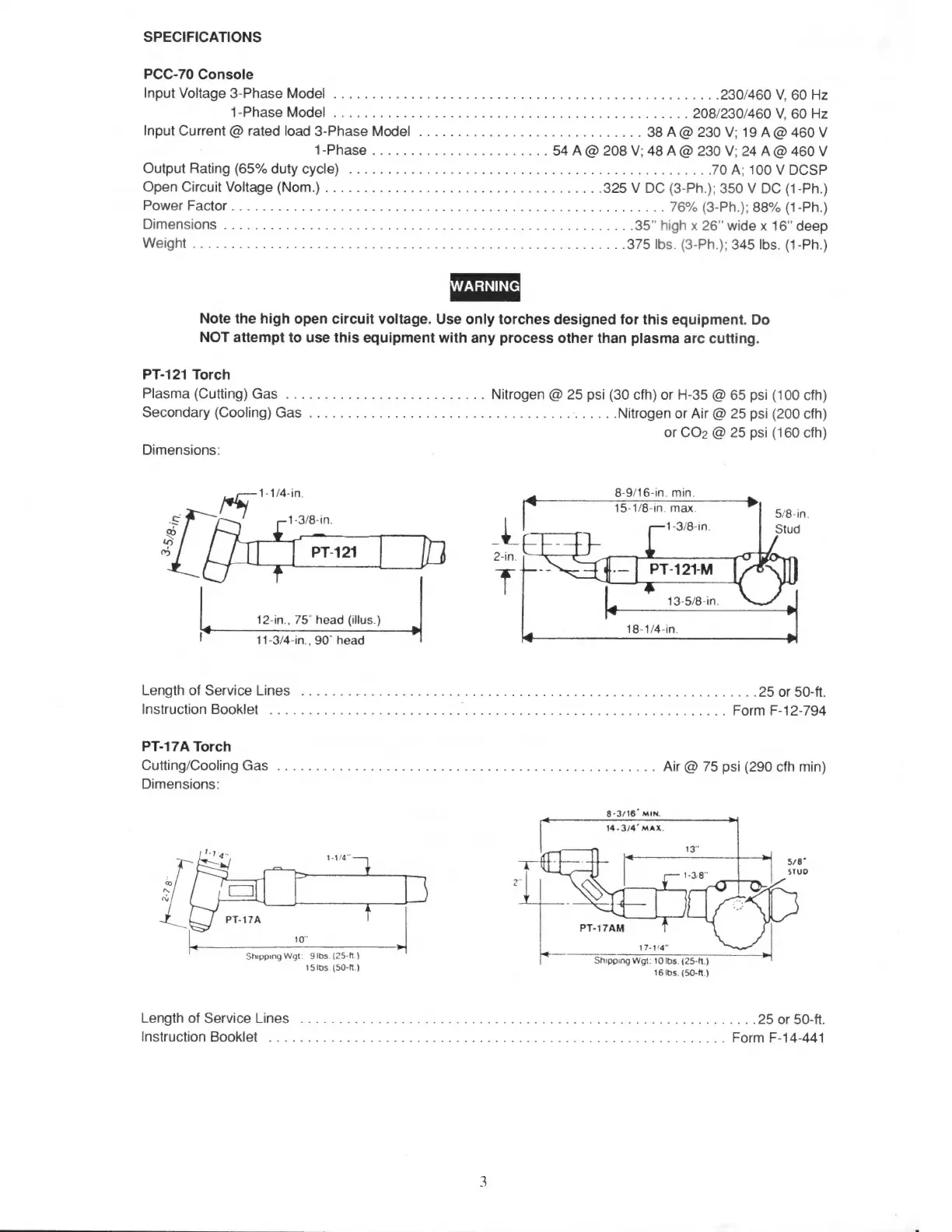

SPECIFICATIONS
PCC-70 Console
Input Voltage 3-Phase Model `... 230/460 V, 60 Hz
1-Phase Model 9 ose RR mm ei ENEE ER PEE 208/230/460 V, 60 Hz
Input Current @ rated load 3-Phase Model `... 38 A @ 230 V; 19 A @ 460 V
T2PNASC 22:252 o rice ERES 54 A @ 208 V; 48 A @ 230 V; 24 A @ 460 V
Output Rating (65% duty Cycle). 2:3 en ore bd SE Saas eet gen E Sn 70 A; 100 V DCSP
Open Circuit Voltage (Nom)... 325 V DC (3-Ph.); 350 V DC (1-Ph.)
ros" "-"-—-—————E— 76% (3-Ph.); 88% (1-Ph.)
DIMENSIONS 3.10 vvcos cov ee PISO cR GRE E cee Peewee ae eee 35" high x 26" wide x 16" deep
Welglit |. ie sencen weceaist chose dcateeas ix ru URS p4 SA 375 Ibs. (3-Ph.); 345 Ibs. (1-Ph.)
Note the high open circuit voltage. Use only torches designed for this equipment. Do
NOT attempt to use this equipment with any process other than plasma arc cutting.
PT-121 Torch
Plasma (Cutting) Gas. Nitrogen (9 25 psi (30 cfh) or H-35 (9 65 psi (100 cfh)
Secondary (Cooling) GaS «sica cota beanies cosas ted peus Nitrogen or Air @ 25 psi (200 cfh)
or CO» (9 25 psi (160 cfh)
Dimensions:
8-9/16-in. min.
5/8-in.
1-1/4-in.
. 15-1/8-in. max.
SS, j| 1-3/8-in. Stud
Satie eee yl
13-5/8-in.
12-in., 75° head illus.)
11-3/4-in., 90° head
18-1/4-in.
Lengthiot Service: DEE 25 or 50-ft.
Instruction Booklet `... EE Binh Sci Ebest Saco sat I AE Form F-12-794
PT-17A Torch
Cutting/Cooling Gas: ue o Eege NEE AER eee ea PES Air @ 75 psi (290 cfh min)
Dimensions:
8-3/16 MIN.
14- 3/4' MAX.
ER 5/8°
stud
E) Kä
^
EN - q
PT-17AM
"m 17-1/4"
Shipping Wgt: 9 Ibs. (25- Sh Wat. 101bs. (25-A.
151bs.
(50-ft.)
iod
ep
äs
Length of Service Lines 22.4... eee ec ce ene ence ene thea 25 or 50-ft.
Instruction Booklet `, Form F-14-441
