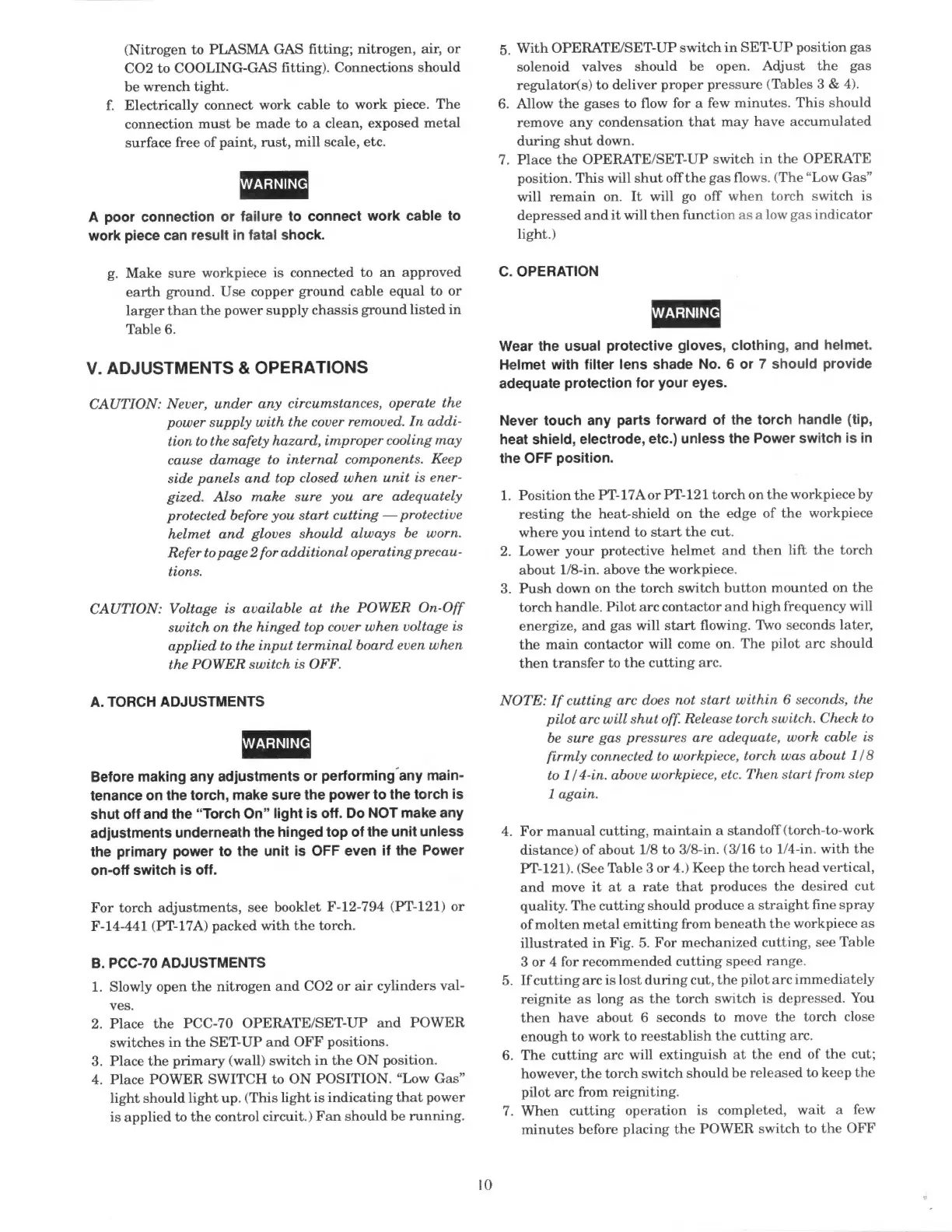

(Nitrogen
to
PLASMA
GAS
fitting;
nitrogen,
air,
or
CO2
to
COOLING-GAS
fitting).
Connections
should
be
wrench
tight.
f.
Electrically
connect
work
cable
to
work
piece.
The
connection
must
be
made
to
a
clean,
exposed
metal
surface
free
of
paint,
rust,
mill
scale,
etc.
WARNING
A
poor
connection
or
failure
to
connect
work
cable
to
Work
piece
can
result
in
fatal
shock.
g.
Make
sure
workpiece
is
connected
to
an
approved
earth
ground.
Use
copper
ground
cable
equal
to
or
larger
than
the
power
supply
chassis
ground
listed
in
Table
6.
V.
ADJUSTMENTS
&
OPERATIONS
CAUTION:
Never,
under
any
circumstances,
operate
the
power
supply
with
the
cover
removed.
In
addi-
tion
to
the
safety
hazard,
improper
cooling
may
cause
damage
to
internal
components.
Keep
side
panels
and
top
closed
when
unit
is
ener-
gized.
Also
make
sure
you
are
adequately
protected
before
you
start
cutting
—
protective
helmet
and
gloves
should
always
be
worn.
Refer
to
page
2
for
additional
operating
precau-
tions.
CAUTION:
Voltage
is
available
at
the
POWER
On-Off
switch
on
the
hinged
top
cover
when
voltage
is
applied
to
the
input
terminal
board
even
when
the
POWER
switch
is
OFF.
A.
TORCH
ADJUSTMENTS
WARNING
Before
making
any
adjustments
or
performing
any
main-
tenance
on
the
torch,
make
sure
the
power
to
the
torch
is
shut
off
and
the
"Torch
On"
light
is
off.
Do
NOT
make
any
adjustments
underneath
the
hinged
top
of
the
unit
unless
the
primary
power
to
the
unit
is
OFF
even
if
the
Power
on-off
switch
is
off.
For
torch
adjustments,
see
booklet
F-12-794
(PT-121)
or
F-14-441
(PT-17A)
packed
with
the
torch.
B.
PCC-70
ADJUSTMENTS
1.
Slowly
open
the
nitrogen
and
CO2
or
air
cylinders
val-
ves.
2.
Place
the
PCC-70
OPERATE/SET-UP
and
POWER
switches
in
the
SET-UP
and
OFF
positions.
.
Place
the
primary
(wall)
switch
in
the
ON
position.
4.
Place
POWER
SWITCH
to
ON
POSITION.
"Low
Gas"
light
should
light
up.
(This
light
is
indicating
that
power
is
applied
to
the
control
circuit.)
Fan
should
be
running.
Wi
5.
With
OPERATE/SET-UP
switch
in
SET-UP
position
gas
solenoid
valves
should
be
open.
Adjust
the
gas
regulator(s)
to
deliver
proper
pressure
(Tables
3
&
4).
6.
Allow
the
gases
to
flow
for
a
few
minutes.
This
should
remove
any
condensation
that
may
have
accumulated
during
shut
down.
7.
Place
the
OPERATE/SET-UP
switch
in
the
OPERATE
position.
This
will
shut
offthe
gas
flows.
(The
*Low
Gas"
will
remain
on.
It
will
go
off
when
torch
switch
is
depressed
and
it
will
then
function
as
a
low
gas
indicator
light.)
C.
OPERATION
ARNING
Wear
the
usual
protective
gloves,
clothing,
and
helmet.
Helmet
with
filter
lens
shade
No.
6
or
7
should
provide
adequate
protection
for
your
eyes.
Never
touch
any
parts
forward
of
the
torch
handle
(tip,
heat
shield,
electrode,
etc.)
unless
the
Power
switch
is
in
the
OFF
position.
1.
Position
the
PT-17A
or
PT-121
torch
on
the
workpiece
by
resting
the
heat-shield
on
the
edge
of
the
workpiece
where
you
intend
to
start
the
cut.
2.
Lower
your
protective
helmet
and
then
lift
the
torch
about
1/8-in.
above
the
workpiece.
3.
Push
down
on
the
torch
switch
button
mounted
on
the
torch
handle.
Pilot
arc
contactor
and
high
frequency
will
energize,
and
gas
will
start
flowing.
Two
seconds
later,
the
main
contactor
will
come
on.
The
pilot
arc
should
then
transfer
to
the
cutting
arc.
NOTE:
If
cutting
arc
does
not
start
within
6
seconds,
the
pilot
arc
will
shut
off.
Release
torch
switch.
Check
to
be
sure
gas
pressures
are
adequate,
work
cable
is
firmly
connected
to
workpiece,
torch
was
about
1/8
to
1/4-in.
above
workpiece,
etc.
Then
start
from
step
1
again.
4.
For
manual
cutting,
maintain
a
standoff
(torch-to-work
distance)
of
about
1/8
to
3/8-in.
(3/16
to
1/4-in.
with
the
PT-121).
(See
Table
3
or
4.)
Keep
the
torch
head
vertical,
and
move
it
at
a
rate
that
produces
the
desired
cut
quality.
The
cutting
should
produce
a
straight
fine
spray
of
molten
metal
emitting
from
beneath
the
workpiece
as
illustrated
in
Fig.
5.
For
mechanized
cutting,
see
Table
3
or
4
for
recommended
cutting
speed
range.
5.
If
cutting
arc
is
lost
during
cut,
the
pilot
arcimmediately
reignite
as
long
as
the
torch
switch
is
depressed.
You
then
have
about
6
seconds
to
move
the
torch
close
enough
to
work
to
reestablish
the
cutting
arc.
6.
The
cutting
arc
will
extinguish
at
the
end
of
the
cut;
however,
the
torch
switch
should
be
released
to
keep
the
pilot
arc
from
reigniting.
7.
When
cutting
operation
is
completed,
wait
a
few
minutes
before
placing
the
POWER
switch
to
the
OFF
