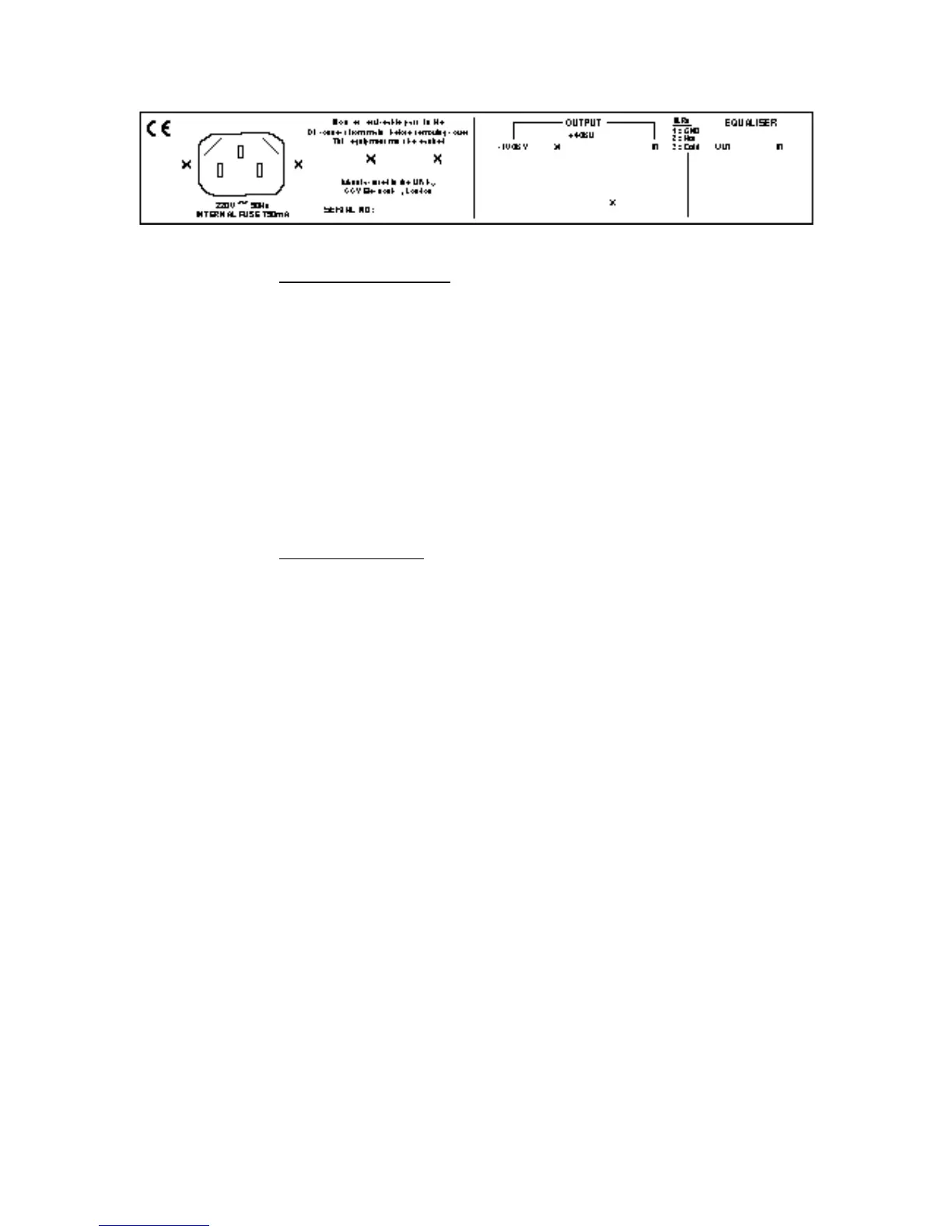

Page 12
EQUALISER SECTION
INPUT
jack Tip Hot (signal +)
SleeveScreen (signal ground)
Unbalanced input to the EQ section. Half-Normalled to the output of the
Compressor section
OUTPUT
jack Tip Hot (signal +)
SleeveScreen (signal ground)
Unbalanced output from the EQ section.
OUTPUT SECTION
INPUT
jack Tip Hot (signal +)
SleeveScreen (signal ground)
Unbalanced input to the Output section. Half-Normalled to the output of the
EQ section.
+4dBu
XLR Pin 1 Screen (Signal ground)
Pin 2 Hot (+ve)
Pin 3 Cold (-ve)
For un-balanced operation join Pins 1 and 3 on your connecting cable.
-10dBV
TRS Tip Hot (signal +)
Ring Cold (signal -)
SleeveScreen (signal ground)
For un-balanced operation join Ring and Sleeve on your connecting cable.
