Page 9

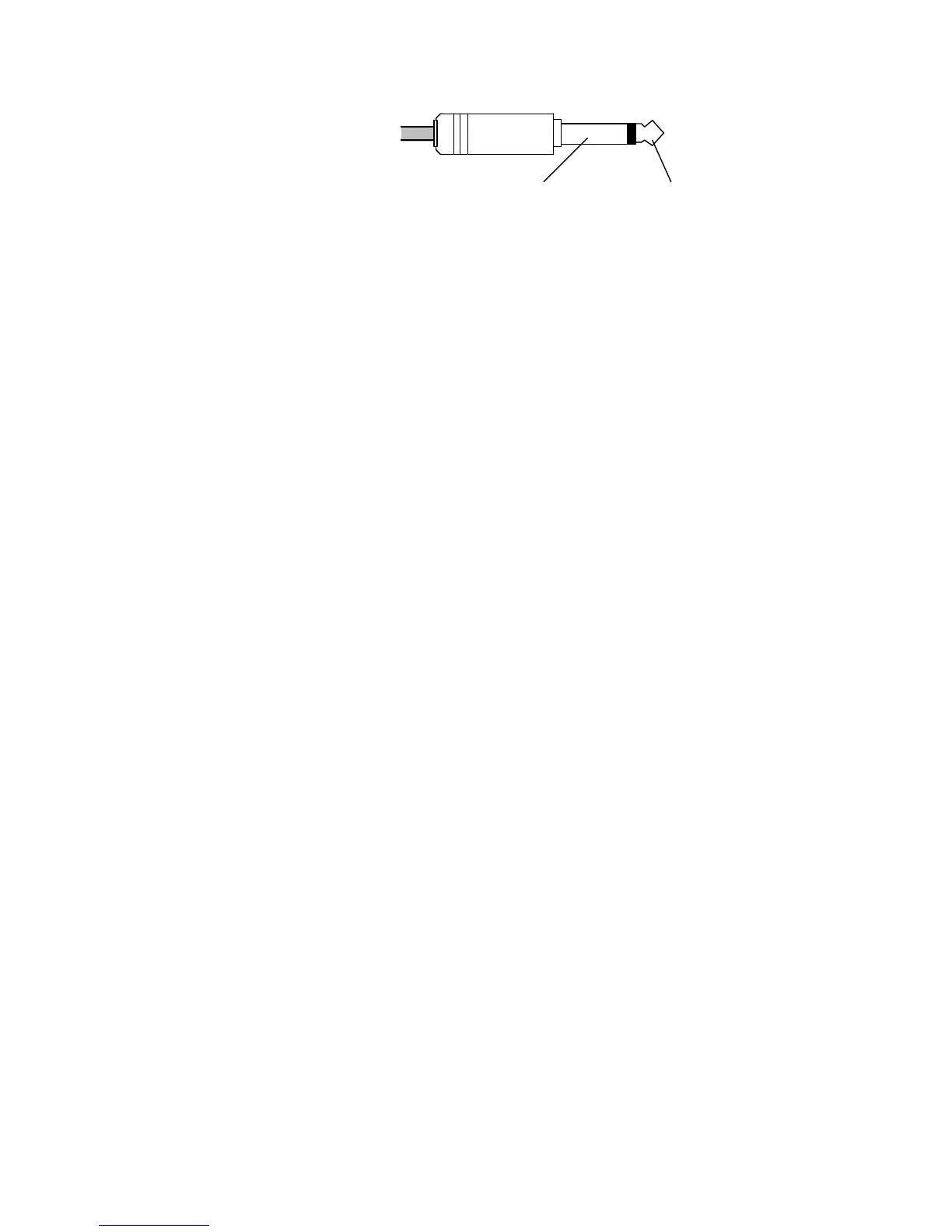

Sleeve
Screen
Tip
Hot (+)
Fig 2.6.4: DI Input connections
This a high impedance (0.5M) input primarily intended for connecting
directly to electric guitars.
OUTPUT
jack Tip Hot (signal +)
SleeveScreen (signal ground)
This connector provides an unbalanced line level output from the
Mic/Line/DI preamplifier. Plugging a jack into this connector does not effect
the signal path through the MPX10. Source impedance is 100 which is
suitable for driving loads of 1k and greater.
