LTV-W1 or LTV-W2 Wind Speed Sensor

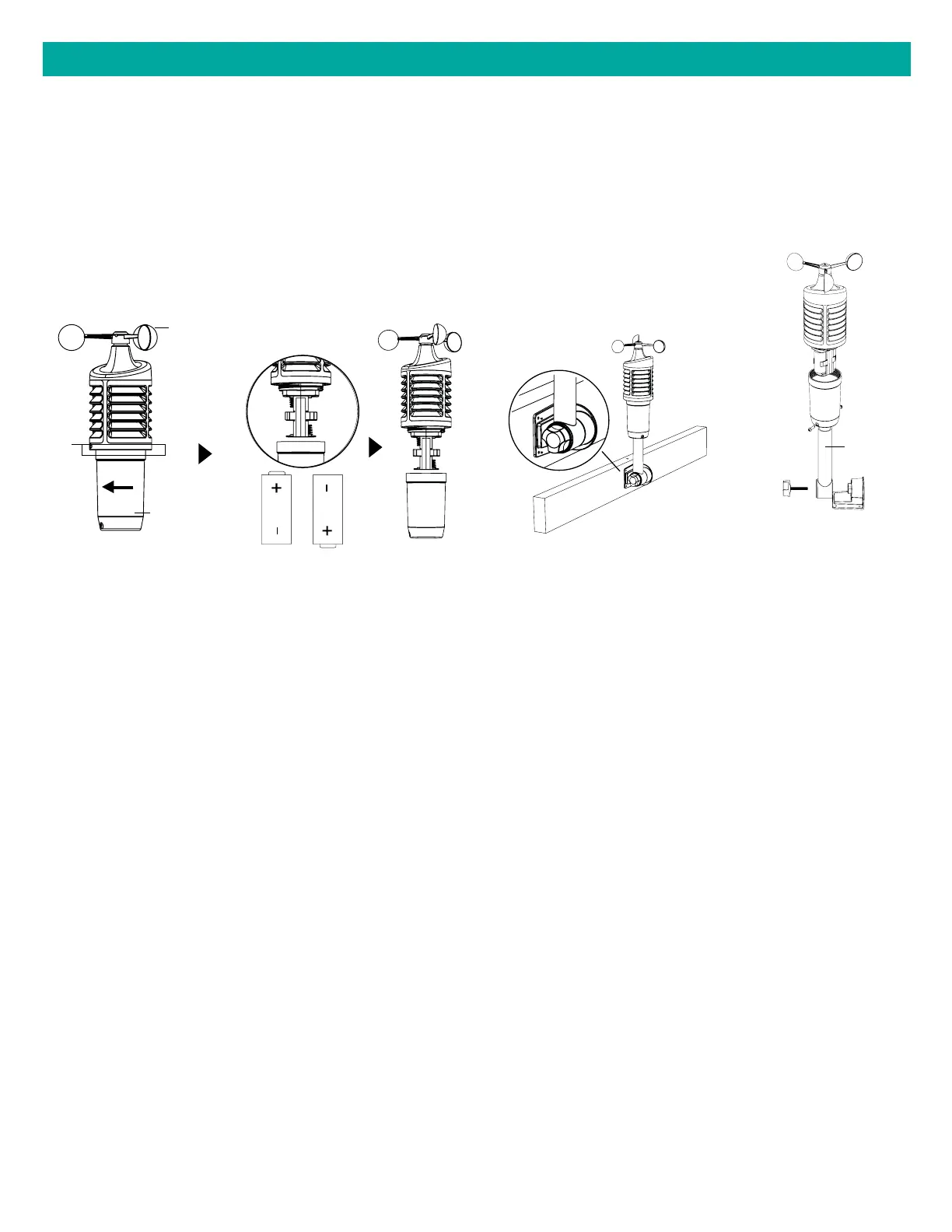

1. Turn the battery cover of your wind sensor to the left.
2. Install fresh “C” batteries.
3. Carefully align and turn battery cover right to tighten.
4. There is a blue LED light on the sensor that will flash when transmitting.
Mounting:
• Position in an open area that will have the least amount of interference with wind speed.
• Mount your sensor vertically with the wind cups on top.
• The maximum wireless transmission range to the station is up to 400 feet (121 meters) in open air, not
including walls or trees.
1. Use screws through the bottom of the mounting bracket to attach.
2. Insert bottom of pole into mounting bracket. Tighten knob to secure
3. Insert the included mounting pole into your sensor.
4. Tighten screws.
Alternatively:
1. Insert your own mounting pole (no more than 1 inch outside diameter”) into the sensor.
2. Tighten screws
Twist
Left
Side Mount
Option
LED
Light
Wind Cups
Battery
Cover
Mounting
pole
Mounting
Bracket
Knob
C
C
Screws
DETAILED SETUP & MOUNTING
