25

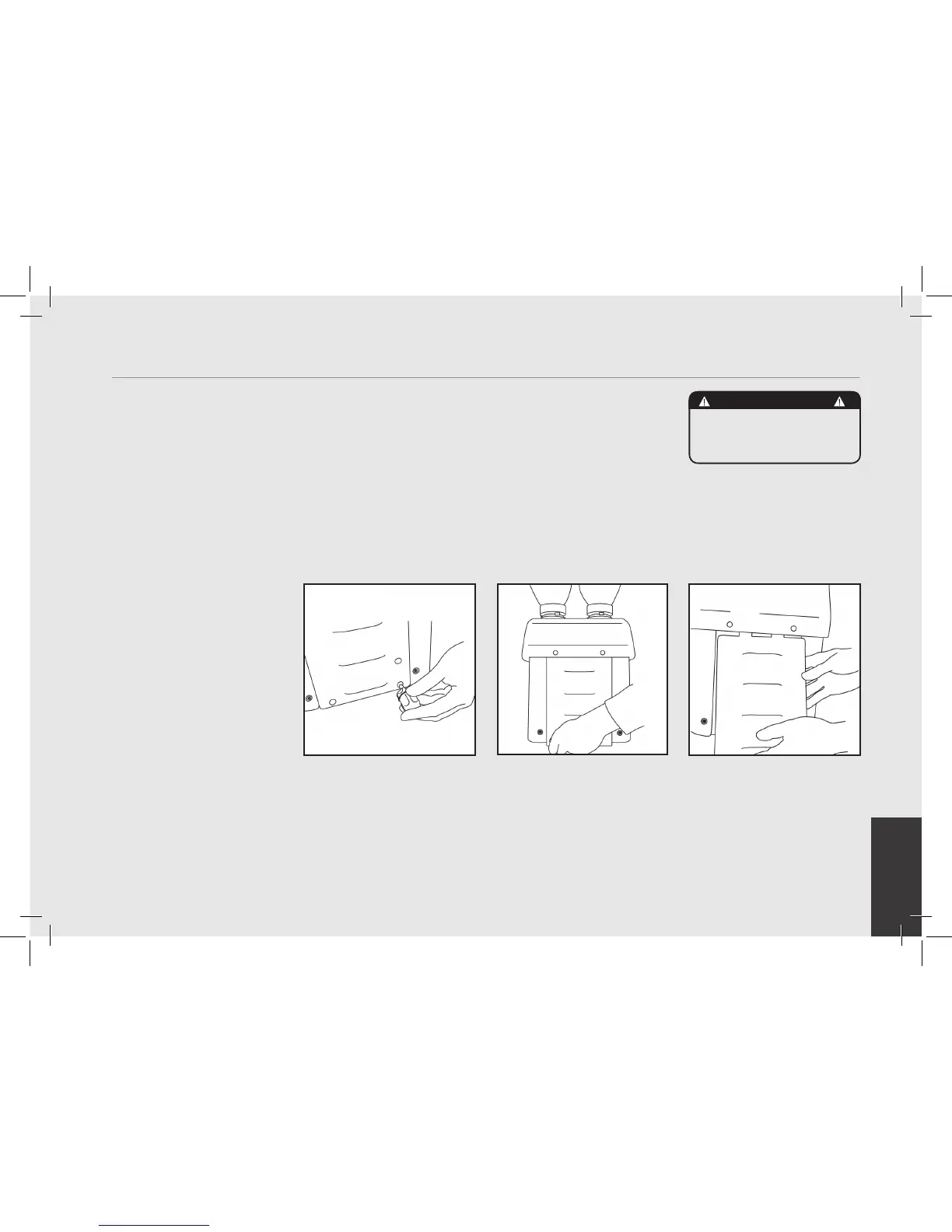

Remove screws (2) Pull outPull down
(1) Disconnect the SWIFT
EPS
B
from its power
supply.
(2) Access the fuse area by
removing the two screws
located at the lower part
of the rear panel door. Do
not remove the ground
wire screw on the rear
panel door.
(3) Pull the panel door
down and away, then
unplug the ground wire,
to expose the control
electronics.
The Swi EPSbhas four
fuses located at the rear
of the machine behind the
removable panel. These
correspond to each of the
grinder motors, the tamping
motor, and the electronic
controls. Occasionally it may
be necessary to replace a
fuse. When switching fuses
besuretouseonlycorrectly
rated replacement fuses.
Electronics = 1 ea. @ 125m
amps (normal); motor,
grinder = 2 ea. @ 10 amps
GDC; motor, tamper = 1 ea.
@1ampGDC.
On machines with serial
numbers 656 and higher,
the 10 amp motor fuses are
replaced with reset switches
ontheexterorofthegrinder.
The head of the switch will
protrude when it needs to be
reset.
Note: See page 31-32 for fuse
sizesandlocaons.
13. Fuse Replacement and Reset Switches
WARNING
HAZARDOUS VOLTAGE
DISCONNECT FROM
POWER SUPPLY BEFORE
SERVICING
To Next Page
