Lab.gruppen FP 2200 User Manual

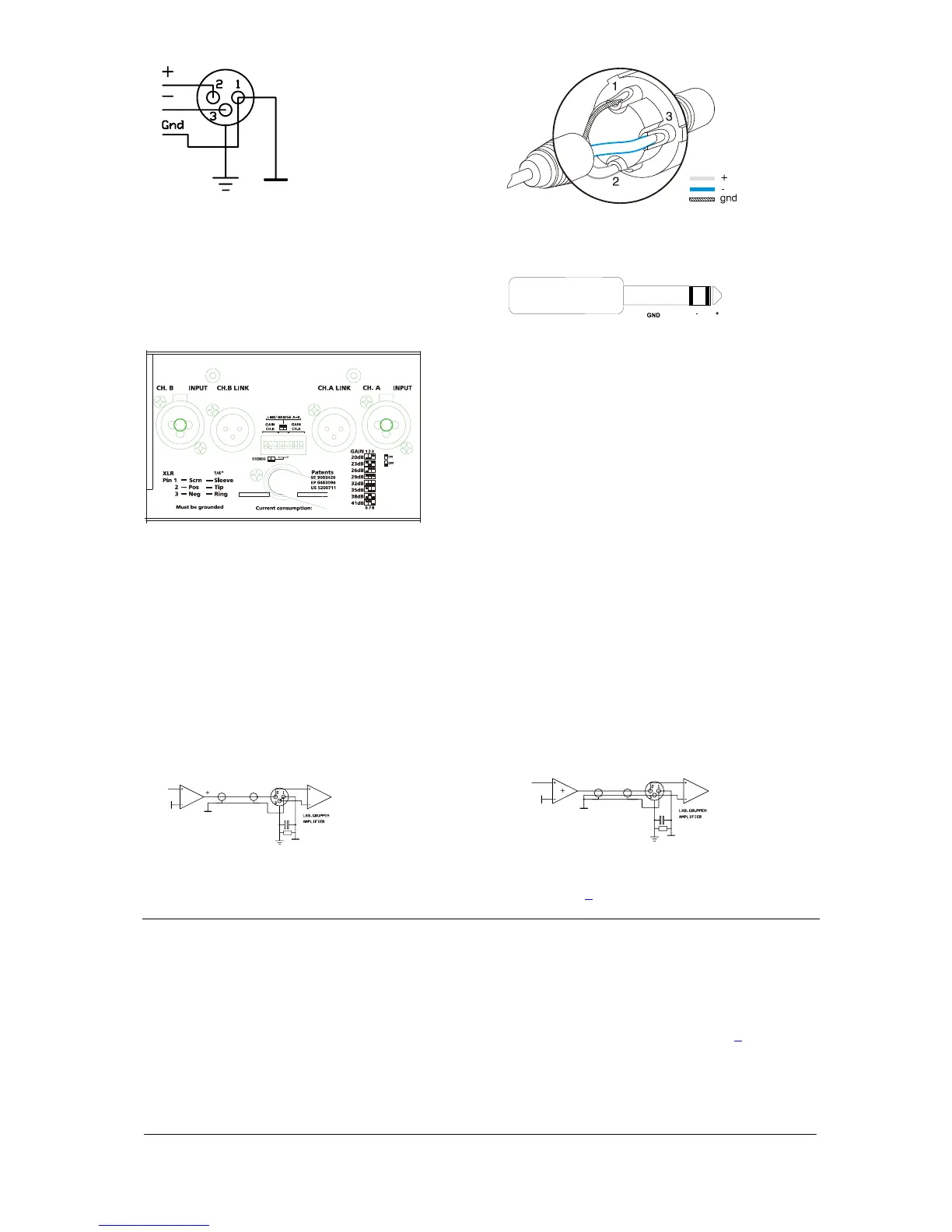

Figure 4: XLR input connector
Figure 5: XLR balanced
Within the Neutrik® Combojack there is a ¼”(6.3mm) phone jack wired in parallel with the XLR.
TIP HOT
RING COLD
SLEEVE GROUND/SHIELD
Figure 6: ¼” TRS plug
The input impedance is high enough (20 kohms balanced) to
allow ”daisy-chaining”, or multiple parallel input
connections. The headroom of the input circuits is also great
enough to accept the maximum output level from virtually
any low-level signal source. Balanced signals are less
sensitive to AC hum and radio interference. The source
impedance should be less than 1 kohms to avoid high
frequency loss in long cables.
To daisy-chain amplifiers, use the XLR-male connector provided on each channel, labeled “Link”. They
are connected in parallel with the Neutrik® Combojack on each input.
TKNKO= råÄ~ä~åÅÉÇ=áåéìíë=
To connect an unbalanced input source, connect pins 1 and 3 in the cable’s XLR plug (ring and sleeve in a
TRS plug). If you leave a pin disconnected, you will lose 6dB.
A better method for using unbalanced sources is shown in figure 8. This is similar to the connection for
balanced lines, but pin 3 is connected to the shield at the source end of the cable. The hum and noise
rejection for the cable is equivalent to that of a balanced line. To minimize hum in the audio signal, use
balanced inputs whenever possible.
Figure 7: Unbalanced line connection
Figure 8: Balanced line with unbalanced equipment
For 2-channel (stereo) operation, use both channels A and B. For tandem stereo or bridged mono
operation, use only one of the inputs. See “Operation Modes” (page 7
) for more details.
TKO= `çååÉÅíáåÖ=ëéÉ~âÉêë=
Speaker connections are made via the two Neutrik® NL4FC Speakon connectors. The Speakon
connector is designed for high power speaker connections. It assures the correct polarity, it locks in place
and prevents from shock hazard.
They are wired in the following manner: The right jack, Channel A, provides both channel A and B
outputs, so it is useful for bridge and bi-amp operation (see bridge mono operation on page 7
). The left
Speakon, Channel B, carries only the channel B output.
i~ÄKÖêìééÉå== = = = = ====================== ========================NN
rëÉê=j~åì~ä===Ñm=OOMM======sÉêëáçå=MKV========OMMPJNMJMT=

Lab.gruppen FP 2200 Specifications

Power Output

max output power at 8 Ω per channel (EIA)	350 W
max output power at 8 Ω per channel (FTC)	340 W
max output power at 4 Ω per channel (EIA)	650 W
max output power at 4 Ω per channel (FTC)	630 W
max output power at 2 Ω per channel (EIA)	1100 W, 1175 W
max output power at 2 Ω per channel (FTC)	950 W
max output power at 8 Ω bridged (EIA)	1400 W
max output power at 8 Ω bridged (FTC)	1300 W
max output power at 4 Ω bridged (EIA)	2200 W
max output power at 4 Ω bridged (FTC)	1900 W

Voltage Specifications

max output voltage at 8 ohms load, MLS @ 0 dB	53 Vrms
peak voltage, no load	77 V
slew rate	40 V/µs

Distortion and Noise

THD 20 Hz–20 kHz and 1 W to full power	0.03 %
THD @ 1 kHz and –1 dB under clip	0.006 %
DIM 30 at –3 dB under clip	0.008 %
hum and noise	<–110 dB
channel separation @10kHz	70 dB

Input Specifications

gain, selectable	20, 23, 26, 29, 32, 35, 38, 41 dB
impedance	20 kohm
common mode rejection	50 dB

Power Requirements

operation voltage (230 V version)	130 V–265 V AC
operation voltage (115 V version)	65 V–135 V AC
minimum start voltage (230 V version)	175 V
minimum start voltage (115 V version)	85 V AC
full output power at 4 ohms (230 V version)	180 V–265 V AC
full output power at 4 ohms (115 V version)	90 V–130 V AC
peak inrush current (soft start limited)	5 A

Current Draw

quiescent power (no load) (230 V version)	0.9 Arms
quiescent power (no load) (115 V version)	1.8 Arms
1/8 of full power (–9 dB) (230 V version)	5 Arms
1/8 of full power (–9 dB) (115 V version)	10 Arms
1/3 of full power (–5 dB) (230 V version)	8 Arms
1/3 of full power (–5 dB) (115 V version)	16 Arms
at full power (0 dB) @1 kHz 1% THD (230 V version)	14 Arms
at full power (0 dB) @1 kHz 1% THD (115 V version)	28 Arms

Weight and Dimensions

net dimensions (mm)	483 W ✕ 88 H ✕ 287 D
net dimensions (inch)	19˝ W ✕ 3.5˝ H ✕ 11.3˝ D
shipping dimensions (mm)	560 W ✕ 180 H ✕ 500 D
shipping dimensions (inch)	22˝ W ✕ 7.1˝ H ✕ 19.7˝ D
net weight	7.9 kg (17 lbs)
shipping weight	9.6 kg (21.2 lbs)
