Lab.gruppen FP 2200 User Manual

If the clip limiter is not engaged, it has an increased time constant, and it illuminates for a longer period.
(See page 13
)
6. Fan grill filters
Two grilles with foam filters are located on the front panel to prevent dust from entering the amplifier. For
easy cleaning of the filters the grilles are removable by simply pulling them off. The foam filters should
always be used.
7. Power switch
Turns mains power on or off. (See page 8
and 12)
QKP= oÉ~ê=m~åÉä=

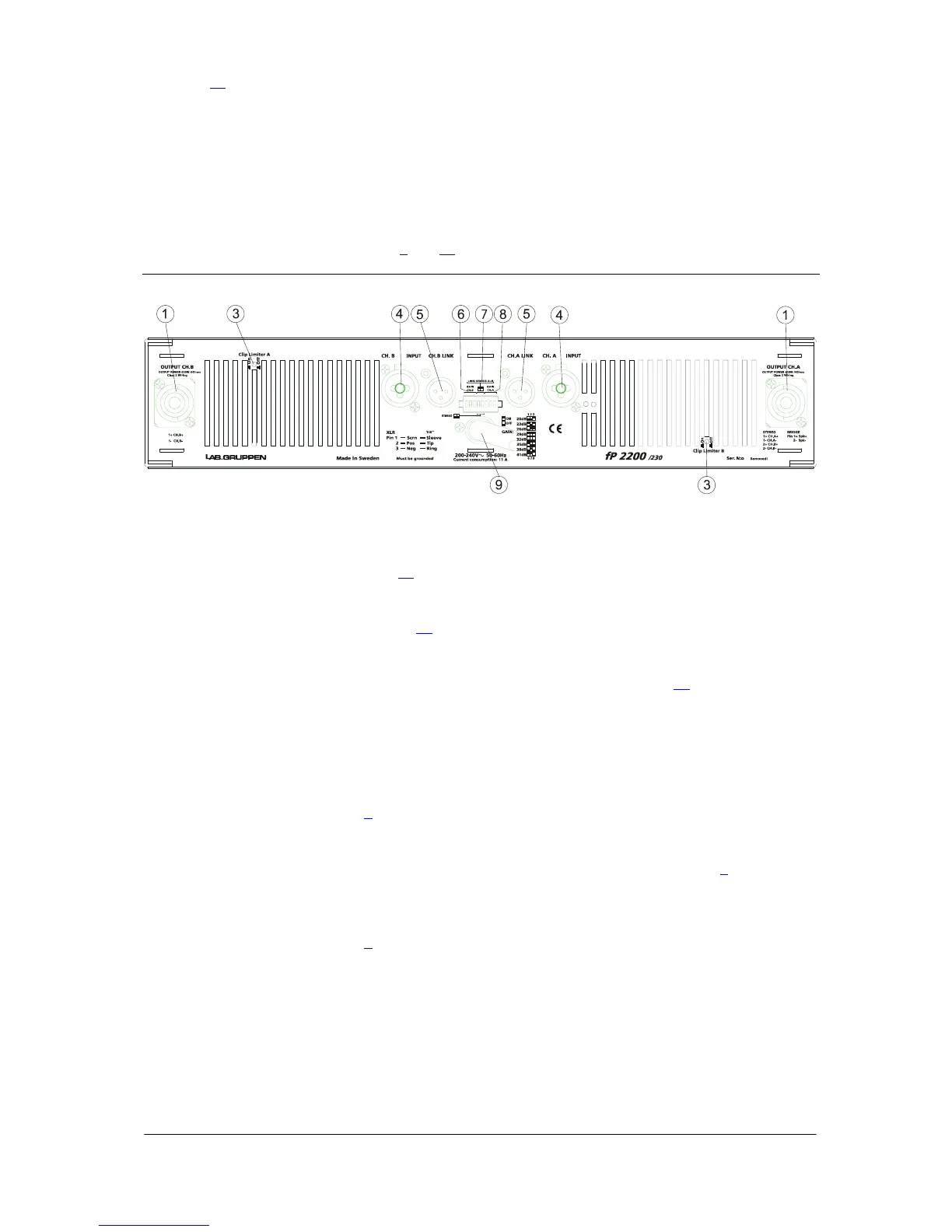

Figure 2: Rear panel
1. Output / Speaker connector
The Speakon connector from Neutrik® may be unfamiliar to some users. A full description can be found
in the “Connections” section. (See page 11
)
3. Clip limiter switch
Turns the clip limiter on or off. (See page 13
)
4. Input signal XLR.
Neutrik® Combojack features also ¼” TRS phone jacks. (Pin 2 is “hot”, see page 10
)
5. Link output
XLR male connector connected in parallel to the female for linking the channel to another input.
6. Gain switch channel B
Three of the switches in the DIP switch selects the maximum gain of the channel to be either 20, 23, 26,
29, 32, 35, 38 or 41dB. (See page 6
)
7. Link/Bridge switch
Two of the switches in the DIP switch are used for Link and Bridge operation. (See page 6
)
8. Gain switch channel A
Three of the switches in the DIP switch selects the maximum gain of the channel to be either 20, 23, 26,
29, 32, 35, 38 or 41dB. (See page 6
)
9. AC power cable
i~ÄKÖêìééÉå== = = = = ====================== ========================R
rëÉê=j~åì~ä===Ñm=OOMM======sÉêëáçå=MKV========OMMPJNMJMT=

Lab.gruppen FP 2200 Specifications

Power Output

max output power at 8 Ω per channel (EIA)	350 W
max output power at 8 Ω per channel (FTC)	340 W
max output power at 4 Ω per channel (EIA)	650 W
max output power at 4 Ω per channel (FTC)	630 W
max output power at 2 Ω per channel (EIA)	1100 W, 1175 W
max output power at 2 Ω per channel (FTC)	950 W
max output power at 8 Ω bridged (EIA)	1400 W
max output power at 8 Ω bridged (FTC)	1300 W
max output power at 4 Ω bridged (EIA)	2200 W
max output power at 4 Ω bridged (FTC)	1900 W

Voltage Specifications

max output voltage at 8 ohms load, MLS @ 0 dB	53 Vrms
peak voltage, no load	77 V
slew rate	40 V/µs

Distortion and Noise

THD 20 Hz–20 kHz and 1 W to full power	0.03 %
THD @ 1 kHz and –1 dB under clip	0.006 %
DIM 30 at –3 dB under clip	0.008 %
hum and noise	<–110 dB
channel separation @10kHz	70 dB

Input Specifications

gain, selectable	20, 23, 26, 29, 32, 35, 38, 41 dB
impedance	20 kohm
common mode rejection	50 dB

Power Requirements

operation voltage (230 V version)	130 V–265 V AC
operation voltage (115 V version)	65 V–135 V AC
minimum start voltage (230 V version)	175 V
minimum start voltage (115 V version)	85 V AC
full output power at 4 ohms (230 V version)	180 V–265 V AC
full output power at 4 ohms (115 V version)	90 V–130 V AC
peak inrush current (soft start limited)	5 A

Current Draw

quiescent power (no load) (230 V version)	0.9 Arms
quiescent power (no load) (115 V version)	1.8 Arms
1/8 of full power (–9 dB) (230 V version)	5 Arms
1/8 of full power (–9 dB) (115 V version)	10 Arms
1/3 of full power (–5 dB) (230 V version)	8 Arms
1/3 of full power (–5 dB) (115 V version)	16 Arms
at full power (0 dB) @1 kHz 1% THD (230 V version)	14 Arms
at full power (0 dB) @1 kHz 1% THD (115 V version)	28 Arms

Weight and Dimensions

net dimensions (mm)	483 W ✕ 88 H ✕ 287 D
net dimensions (inch)	19˝ W ✕ 3.5˝ H ✕ 11.3˝ D
shipping dimensions (mm)	560 W ✕ 180 H ✕ 500 D
shipping dimensions (inch)	22˝ W ✕ 7.1˝ H ✕ 19.7˝ D
net weight	7.9 kg (17 lbs)
shipping weight	9.6 kg (21.2 lbs)
