Note :- Access to the Calibration and Configuration menus is password protected and is factory

set. To access and or change the password contact the supplier for the Engineers Password and

enter the Passwords in the Main Menu or alternatively use a Laptop connected to the Com port

and the Upload/Download software provided

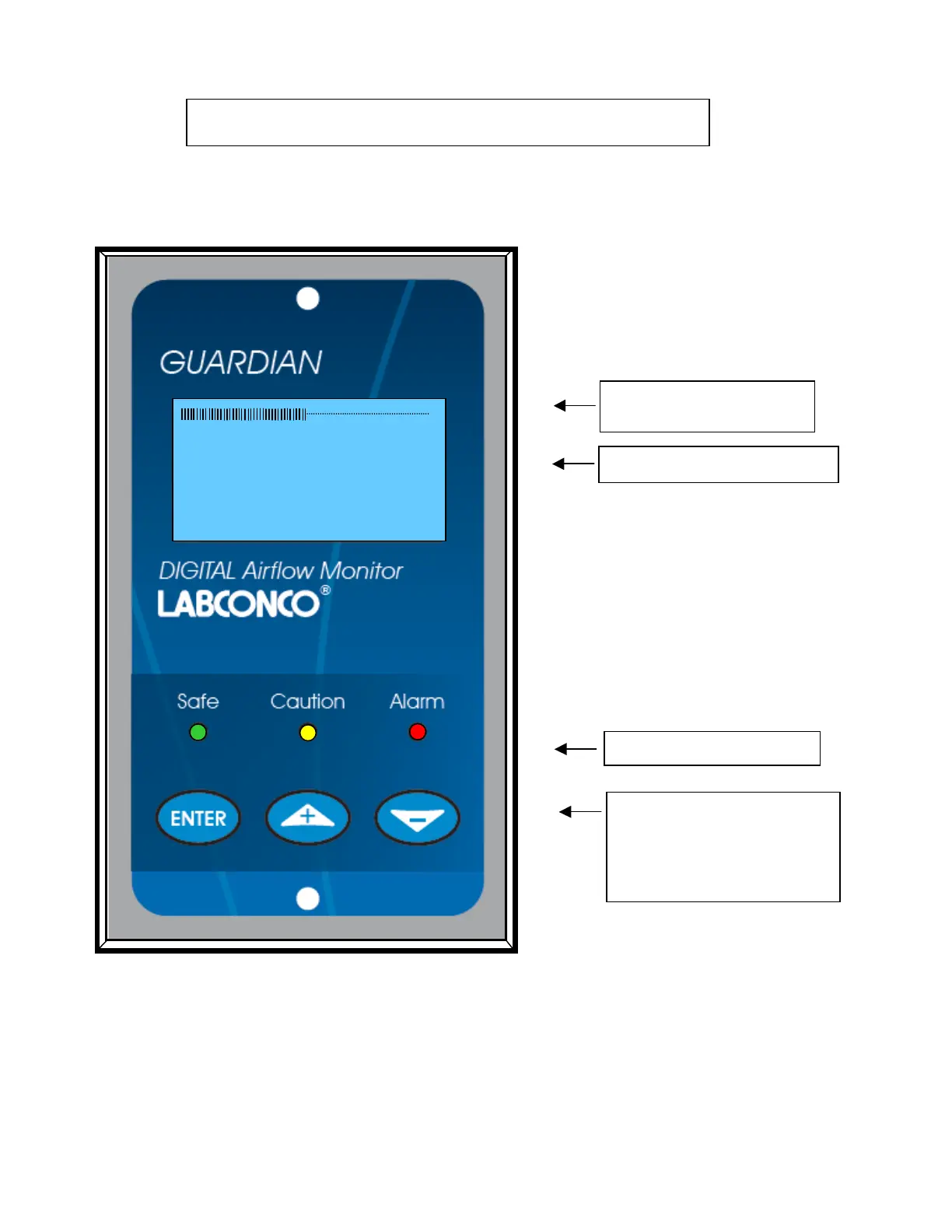

OPERATOR DISPLAY PANEL

100 fpm

0 200fpm

100 fpm

0 200fpm

Velocity display fpm or m/sec

LED indicators

Function and up/down buttons

for Menu Configuration and

Calibration.

ENTER – also used as

Mute button for audible alarm

Velocity Bar Graph or

Alarm Time Line
