REAR APPLICATOR

ProductDetector#1mustbepositionedfarenoughupstreamtoallowtheswingtamptimeto

reachthefullyextendedpositionastheproductarrivesattheapplyposition.SeeFigure4.

1. Pressthe[CUSTOM]buttontillthedisableappearsonthemenuscreen.

Positionproductdetector#1atanappropriatepositionrelativetothefullyextendedswing

tamps.



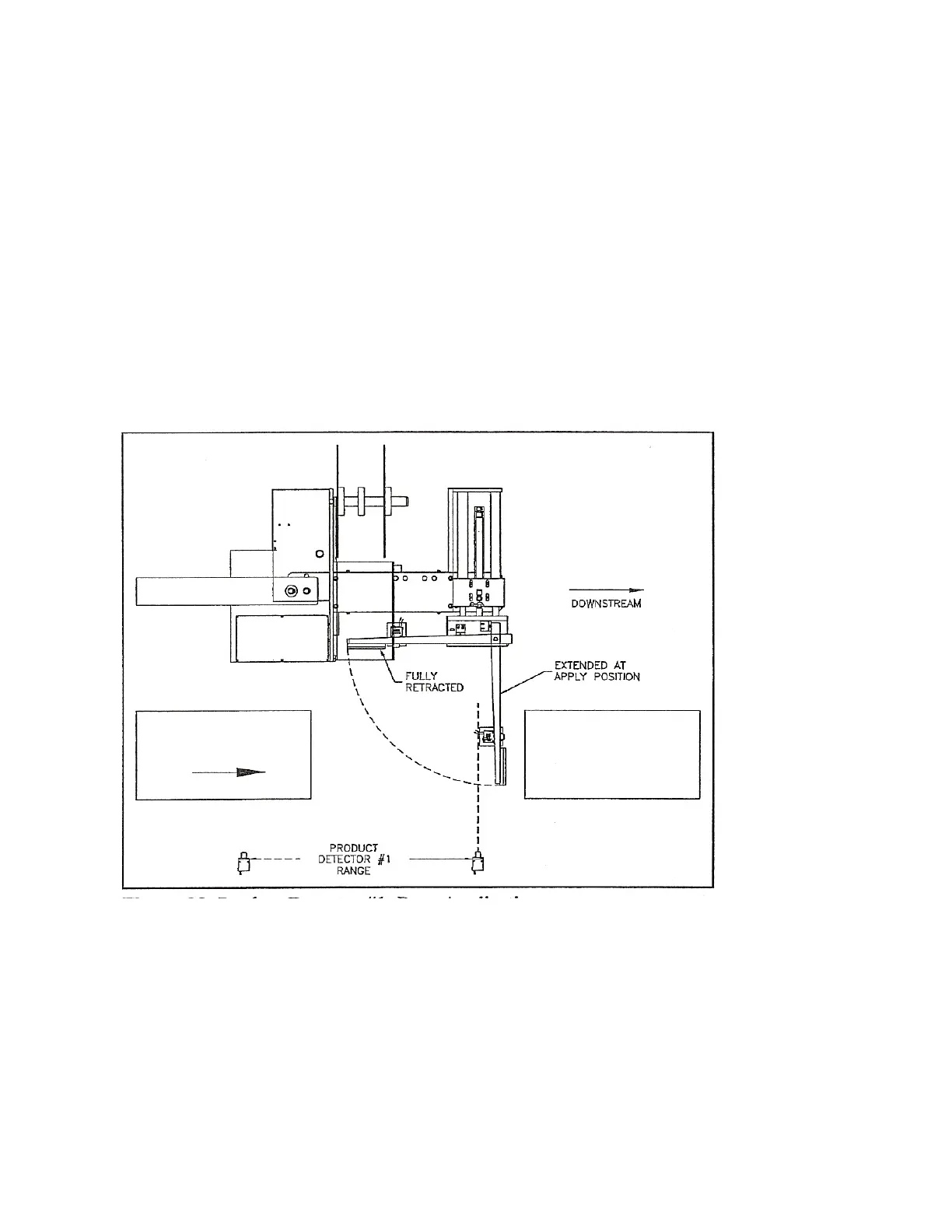

Figure4


