49



SET-UP



1.Disablethetamp.

2.Therearcoverwindowonthedetectormustbeopenedbeforeanyadjustmentscanbe

made.SeeFigure18.Presstheflexibleretainingclipagainstthecabletoopenthewindow.

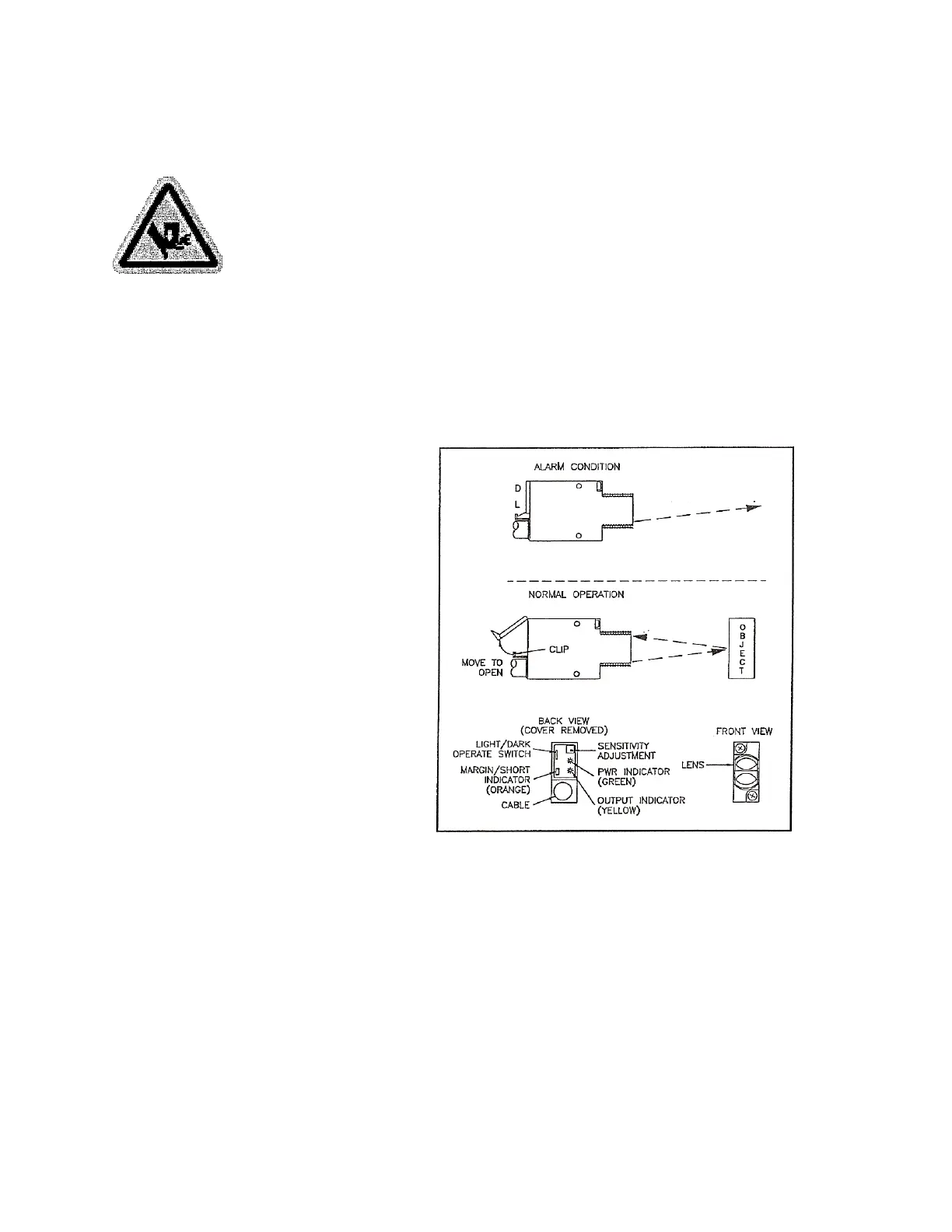

Figure18TampBackSensorDetail

3.GentlyslidetheUNOperateswitch

onthebackofthedetectortoL

(towardsfromtheretainingclip)for

LightOperation.

3.Pushthetamptothefullyretracted

position.Ifnecessary,usea1/16inch

flatbladescrewdrivertoturnthe

sensitivityadjustmentscrewclockwise

untiltheyellowlightontherearofthe

detectorlights.

4.Iftheorangeindicatorisalsolit,usea

1/16inchflatbladescrewdrivertoturn

thesensitivityadjustmentscrew

counterclockwiseuntiltheorange

indicatorgoesout.

5.Usethescrewdrivertoturnthesensitivityadjustmentscrewclockwiseuntiltheorange

indicatorjustgoeson.

7.Removetheproductfrominfrontofthetamppad.TheyellowLEDontherearofthe

detectormustgooutandthegreenLEDwilllight.Adjustthegainadjustmentifnecessaryand

repeatthisprocedure.

8.Snapthewindowcoverclosedonthedetector.
