48



TAMP BACK SENSOR

Whenthetampretracts,theTampBackSensorsignalstheprintertoprintanotherlabel.The

tampbacksensorismountedtotheflowcontrolplate.



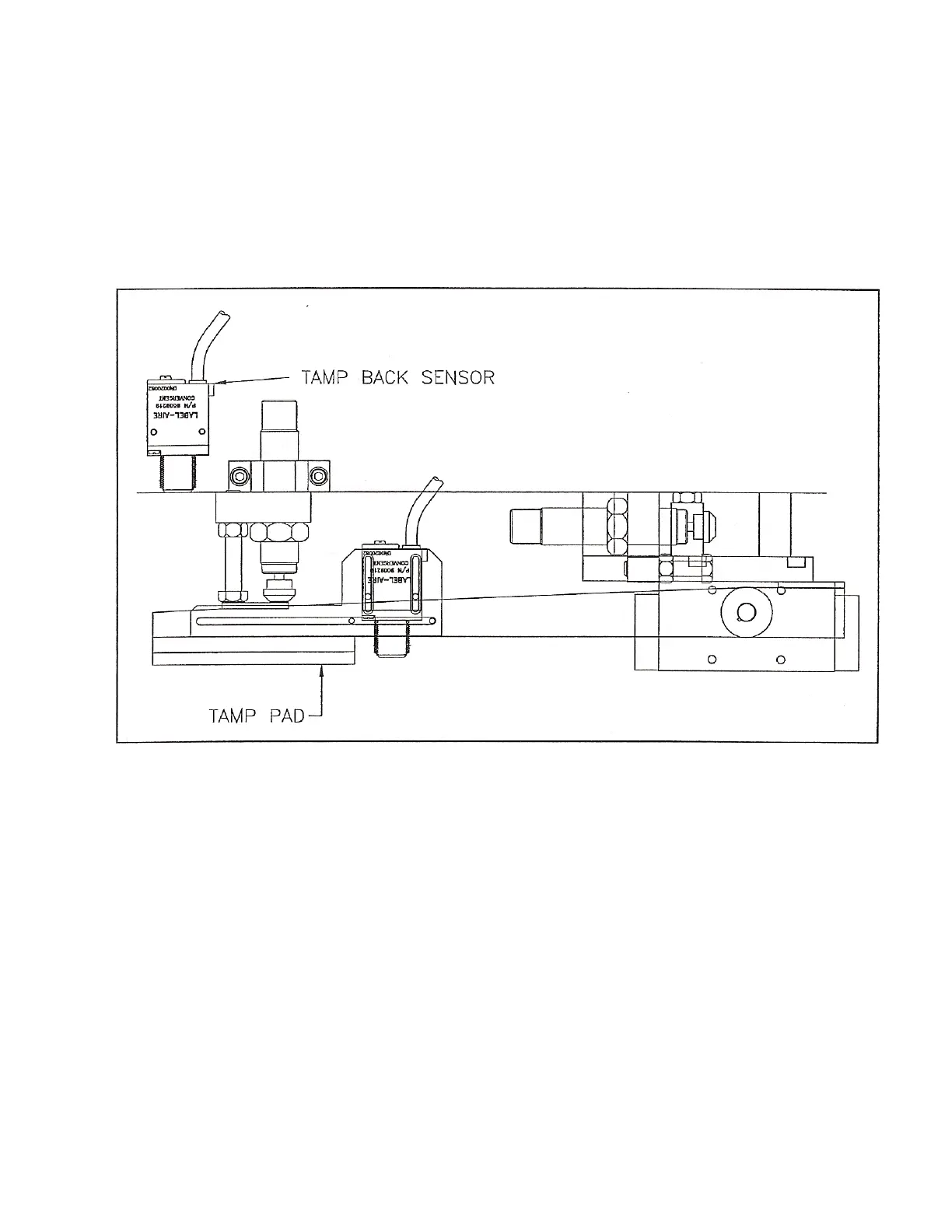

Figure17TampBackSensor



NOTE:AnincorrectlyadjustedTampBacksensorcanoverridethefunctionoftheTamp

Interruptsensor.


