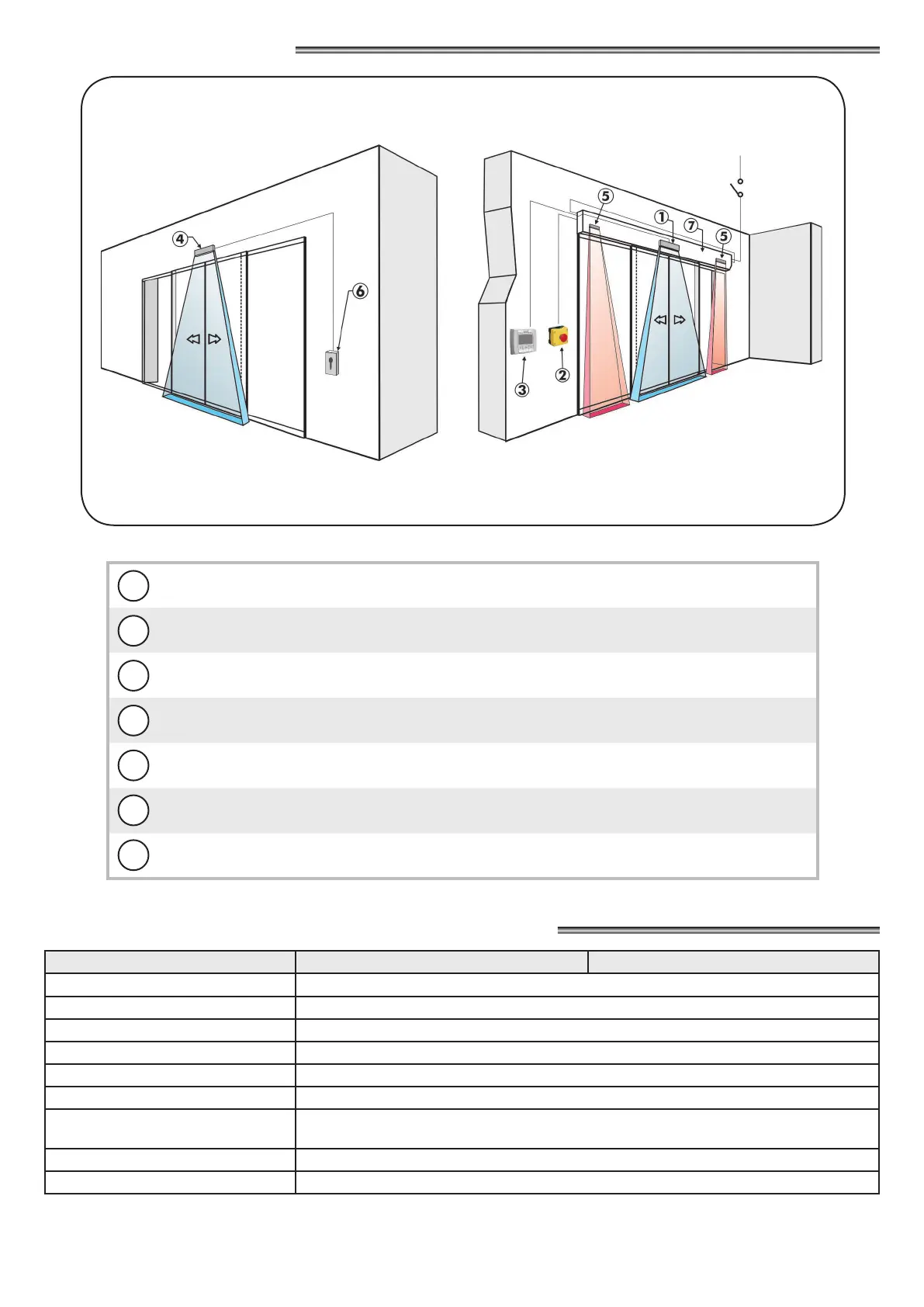

1) OVERVIEW OF THE SYSTEM
OUTER SIDE INNER SIDE
AUTOMATION POWER
SUPPLY
230V~
Internal movement and presence sensor for door opening and safety during closing
Emergency opening button
Digital programmer
External movement and presence sensor for door opening and safety during closing
Opening safety sensor
Key button
ETERNA automation
1
2
3
4
5
6
7
2) TECHNICAL SPECIFICATIONS OF THE AUTOMATION ETERNA
AUTOMATION MODEL ETERNA 90D-150D (2 leaves) ETERNA 90S-150S (1 leaf)
Power supply 230V~ 50Hz +/‑ 10%, 115V~ 60 Hz +/‑ 10%
Max. power 100 W
Frequency of use continuous
Pause time Max. 30 seconds
Operating temperature ‑15°C to +50°C
Protection class IP22
Power supply for external
accessories
24 Vdc
Dimensions of ETERNA 90 (H x D) 100 x 135 mm
Dimensions of ETERNA 150 (H x D) 120 x 150 mm
