Digital Satellite Signal Quality Finder
Set Up Instructions
SQ722
IS LAB SQ722 0520.PDF | P 3-5 |
8. COMPASS
Using a Compass and the RED angle lines on the map, point the
left to right, azimuth or side ways position of the Satellite Dish in the
direction indicated.
COARSE ALIGNMENT SETTINGS
SATELLITE DISH ALIGNMENT SETTINGS

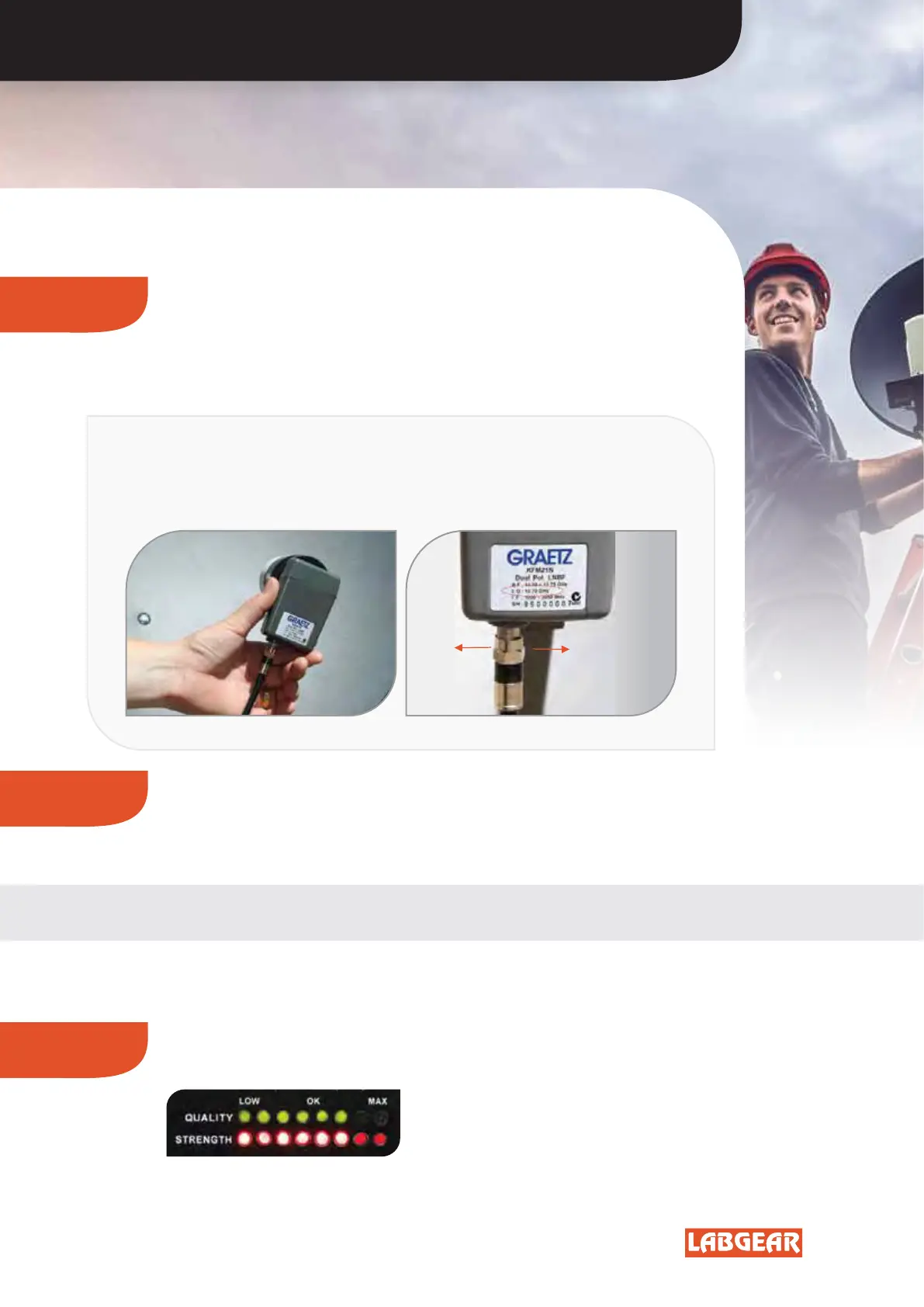

7. LNB
The next step is to set LNB Skew. Rotate the LNB following the
GREEN angle lines on the map.
For example: in Melbourne, the adjustment angle would be
+31 Degrees Rotation, clockwise.
NOTE:
Helpful markings are on the top of
many LNB’s.
+ -
+31 Degrees
Rotation
Rotation
Direction
0
9. SIGNAL
Looking at the instrument, there are 2 lines of LEDs.
Signal Quality shows clearly when you have the right Satellite!
GREEN lights represent Signal Quality.
RED lights represent Signal Level.
COARSE ALIGNMENT COMPLETE
To Next Page
