Instruction Manual – 3
Single- and Multi-channel Pipettors
A1
A2
N
B1
B2
C
D
R
A
F

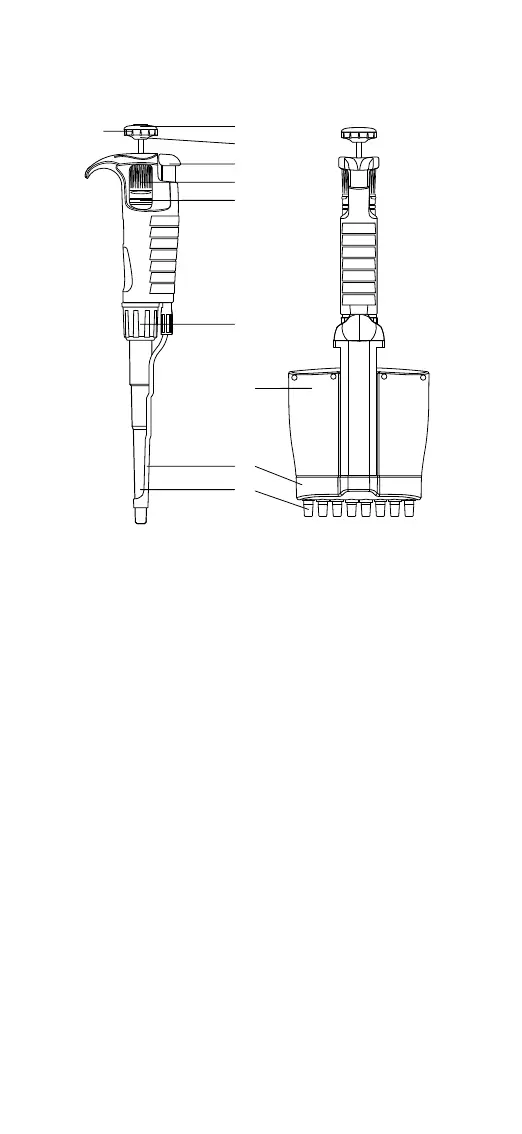

A. Pipetting pushbutton: Consists of 2 parts:
thepushbutton (A1) and the knob (A2).
B1. Volume adjustment knob: Used to set thevolume.
B2. Locking Ring: Allows the volume setting to be locked by
pushing the ring upwards.
C. Shaft: Manufactured using high quality plastic,
ensuring high chemical and mechanical strength.
D. Tip ejector: For multi-channel pipettors, the tips are
ejected sequentially, reducing the required force.
F. Shaft nut
N. Ejector pushbutton
R. Multi-channel manifold: Contains a set of plungers
andaset of exible-suspension shafts, which function
to reduce the force required to attach the tip.
