manual alignment. NOTE: The spacers bonded to the glass plates are
slightly longer than the plates and marked with an arrow to indicate the top.
3. The ENDURO VE10 Gel insert contains pressure bars which impart even
pressure onto the edge of the glass plate. Ensure that the pressure bars are
adequately open for the thickness of spacer used. The bar can be opened by
sliding open clamps. When using a triple glass plate sandwich, the pressure bars
will need to be in the completely open position.
4. Position the ENDURO VE10 Gel module on a flat surface. Do not insert the
ENDURO VE10 Gel module into the casting base at this point.

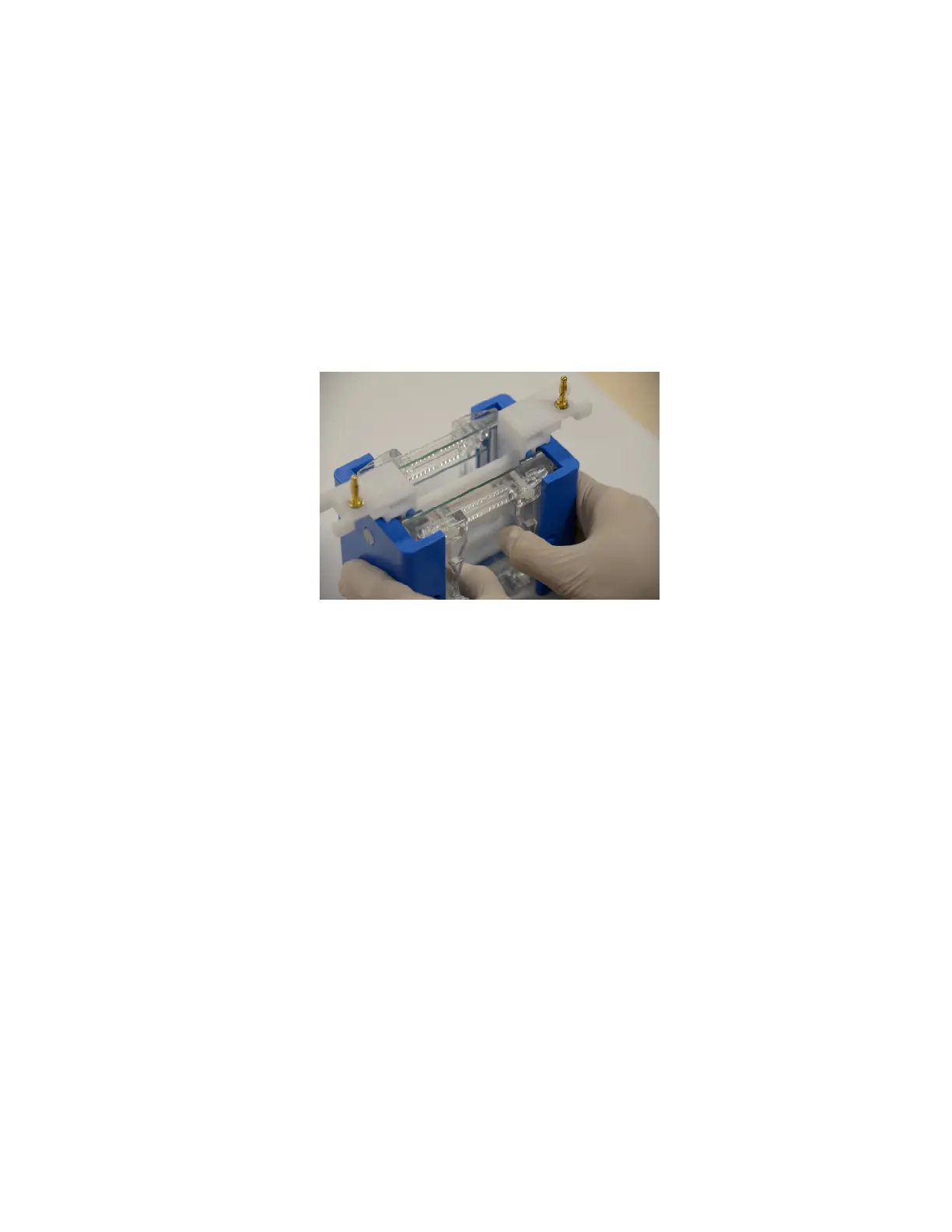

5. Place the glass plate/spacer assembly into the Vertical Gel Insert between the
pressure bar and the blue gasket. Check that the bottoms of the glass plates are
touching the bench and fully tighten the sliding clamps. When only one gel is
being run, the dummy plate must be used in the second position and fully
tightened. NOTE: Be sure that the glass plates and the bottom of the
spacers are evenly aligned.
