Setting up the ENDURO VE10 Gel Tanks:
Instructions for installing Electrical Leads.
1. Note the position of the lid on the unit. This shows the correct polarity and the
correct orientation of the cables, black is negative and red positive.
2. Remove the lid from the unit. Note if the lid is not removed, fitting the cables may
result in un-tightening of the gold plug and damage to the electrode.
3. Screw the cables into the tapped holes in the lid as fully as possible so that there
is no gap between the lid and the leading edge of the cable fitting.
4. Refit the lid.
The unit is now ready for use.
Vertical Gel Casting Using the ENDURO VE10 Gel Casting System:-

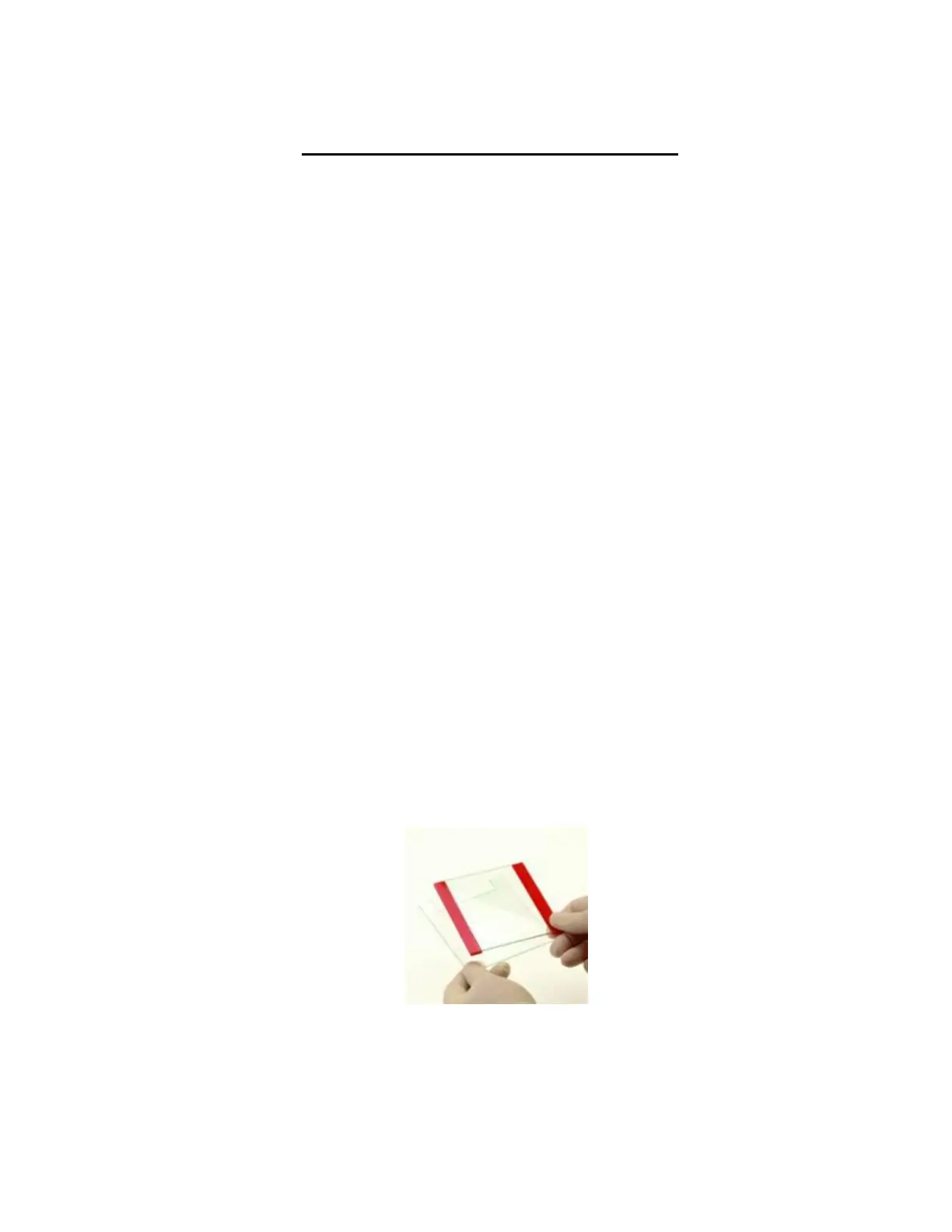

1. Clean a set of glass plates for each gel first with distilled water and then with
70% ethanol. One set of glass plates constitutes one notched glass plate and
one plain glass plate with bonded spacers. When using a triple glass plate
sandwich, two notched glass plates, one set of free spacers and a set of plain
glass plates with bonded spacer. The plain glass plate is positioned outermost,
then a notched glass plate, free spacers and second notched glass plate.
Alternatively, accessory notched glass plates with bonded spacers are available.
All glass plates, modules and casting base accessories must be completely
dry for setup. Wet components are more likely to misalign and cause leaks.
2. Assemble the glass plates so that the bottom of the glass plates and the spacers
are perfectly aligned. For triple plate sandwiches, the free spacers need to be
perfectly aligned which is best performed using a small spacer or comb to push
the spacers apart. Notched glass plates with bonded spacers do not need
