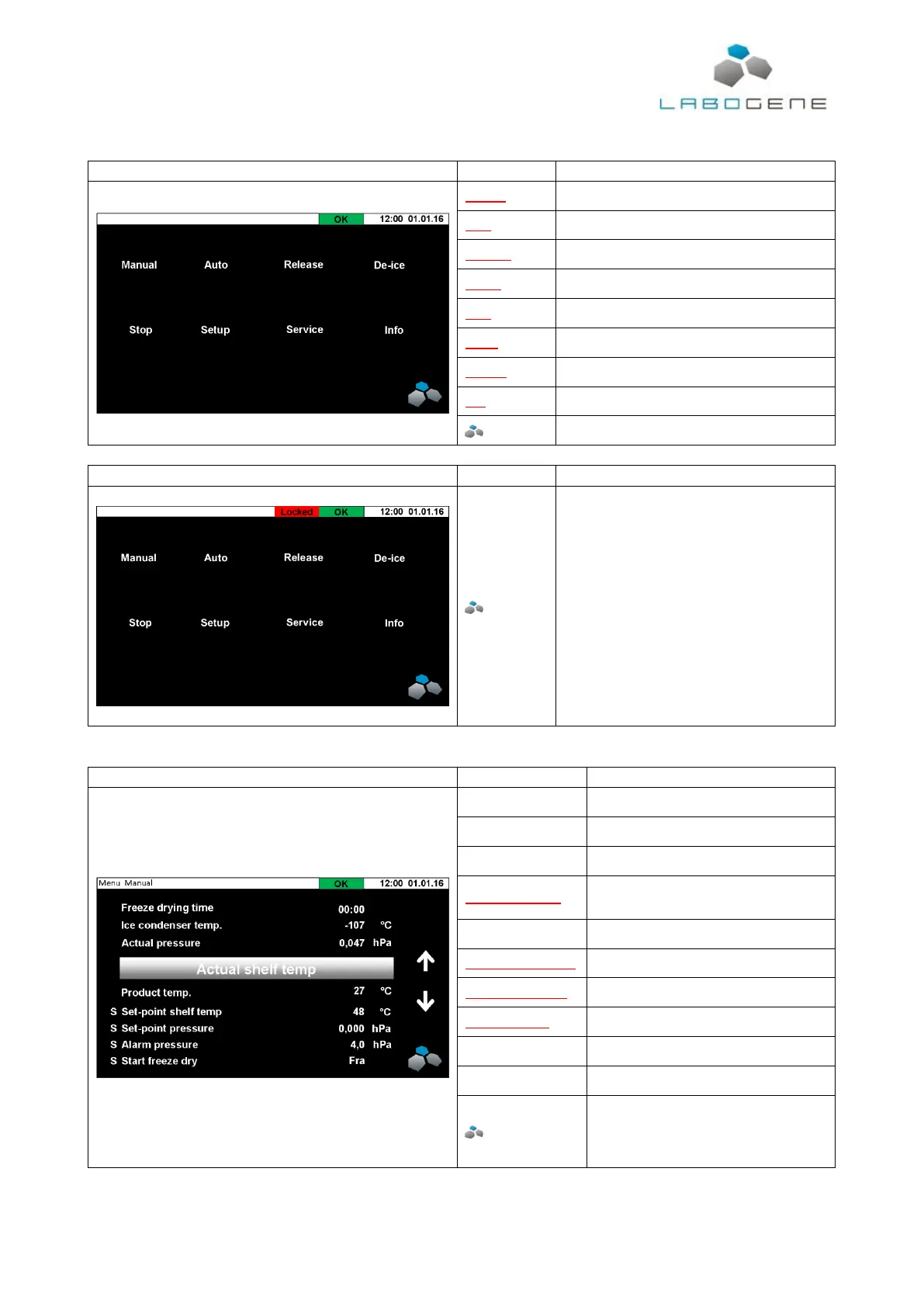

6.1 Main menu
Touch screen – as opened
Menu
Action
Manual
Opens the manual menu.
Auto
Opens the program selection menu or the
automatic operation menu.
Release
Opens the release menu.
De-ice
Opens the de-ice menu.
Stop
Stops the ongoing process.
Setup
Opens the setup menu.
Service
Opens the service menu.
Info
Opens the information screen.
Press the LaboGene logo for 2-3 seconds to
lock the display for input. Unlock press again.
Touch screen - locked
Menu
Action
Press the LaboGene logo for 2-3 seconds to
lock the display for input. Unlock press again.
It is possible to lock and unlock the touch
screen from any menu or screen.
6.2 Manual menu
Touch screen – as opened
Item
Action
When entering the manual menu the compressors start cooling
the ice condenser.
Scroll up and down, using the arrows to the right, to select the
menu item you want to see or change.
Freeze drying time
Time elapsed since start of freeze drying.
Ice condenser temp.
The current temperature in the ice
condenser.
Actual pressure
The current pressure in the freeze dryer.
Actual shelf temp
The current shelf temperature – press to
open a list of the temperature on each
shelf.
Product temp.
The current product temperature – one
product temperature sensor available.
Set-point shelf temp
Press to set shelf temperature.
Set-point pressure
Press to set system pressure.
Alarm pressure
Press to set the alarm pressure.
Start freeze dry
Press to start manual freeze drying
process.
Reset error
Scroll down to see this menu item.
Press the LaboGene logo to return to the
main menu.
Press the LaboGene log for 2-3 seconds
to lock the display for input. Unlock press
again.
