LaboGene Mars User Manual

Edition 3 April 2012 Mars/Mars Pro Service Manual
Page 25/59
The Mars cabinets are supplied as standard with 1 internal socket and extra sockets can be added as required. If a socket
is to be changed or needs attention, then it is a simple matter to remove it.
 Hold the outer flap casing and pull backwards away from the main socket
 Unscrew the 4 retaining screws securing the socket to the cabinet wall and carefully pull the socket away from
the wall.
 Disconnect the wiring from the rear of the socket.
 Replace with a new socket in the reverse procedure

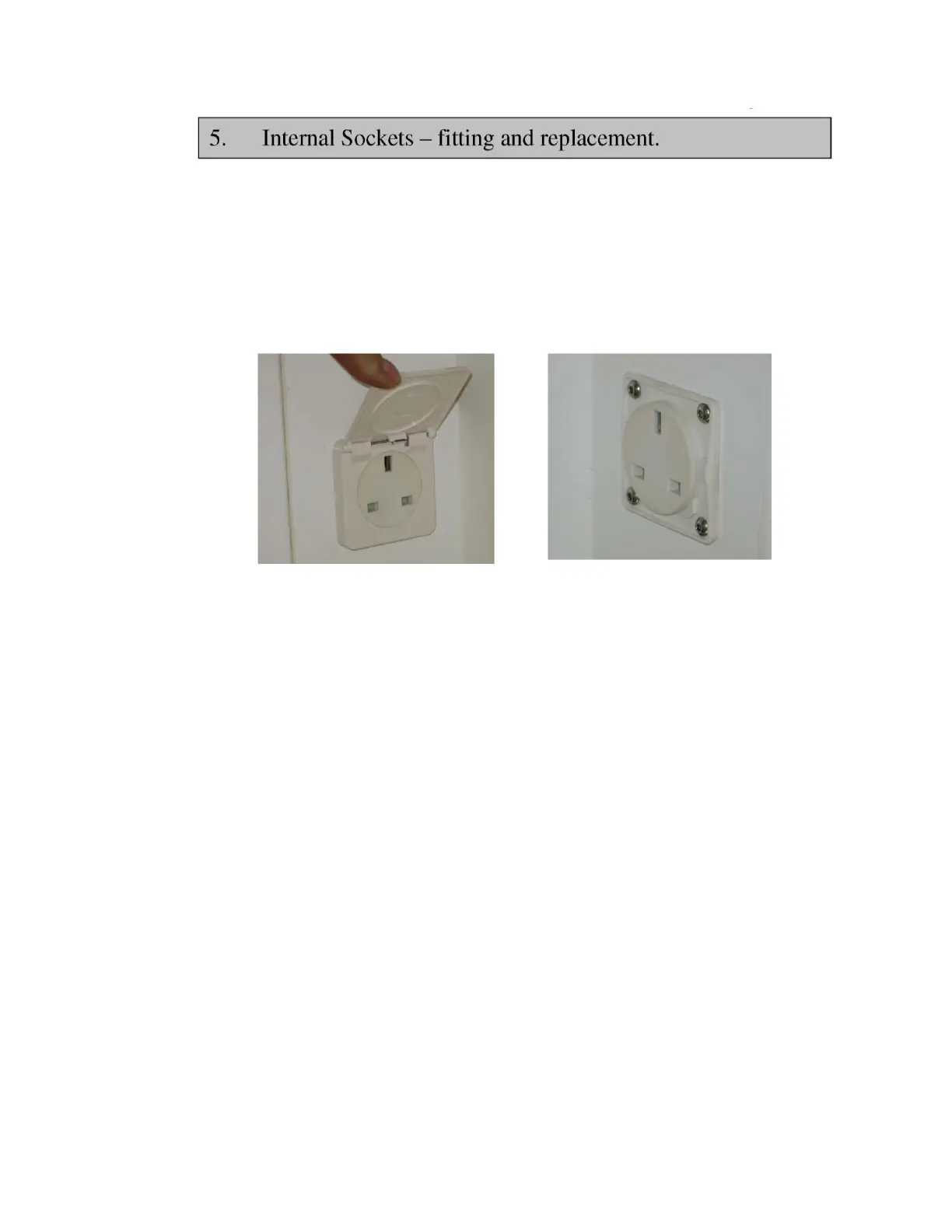

Fig 8 showing socket and flap Fig 9 showing retaining screws
Socket detail
Fitting
Specified at time of order. Socket fittings available for Denmark, Germany, UK,
France, Switzerland, and USA
Safety rating
IP 44 rated
Current
rating
5 amp rating (all sockets in total)
Voltage
220-240V except USA (110V)
Hertz
50 (60 for USA)

LaboGene Mars Specifications

General

Temperature Range	Ambient +5°C to 70°C
Material (Internal)	Stainless Steel
Controller	Microprocessor-based PID controller
Display	LED
Material (External)	Powder coated steel
Safety Features	Over-temperature protection
Timer	99h 59min
Power Supply	230V, 50/60Hz
