LaboGene Mars User Manual

Edition 3 April 2012 Mars/Mars Pro Service Manual
Page 42/59

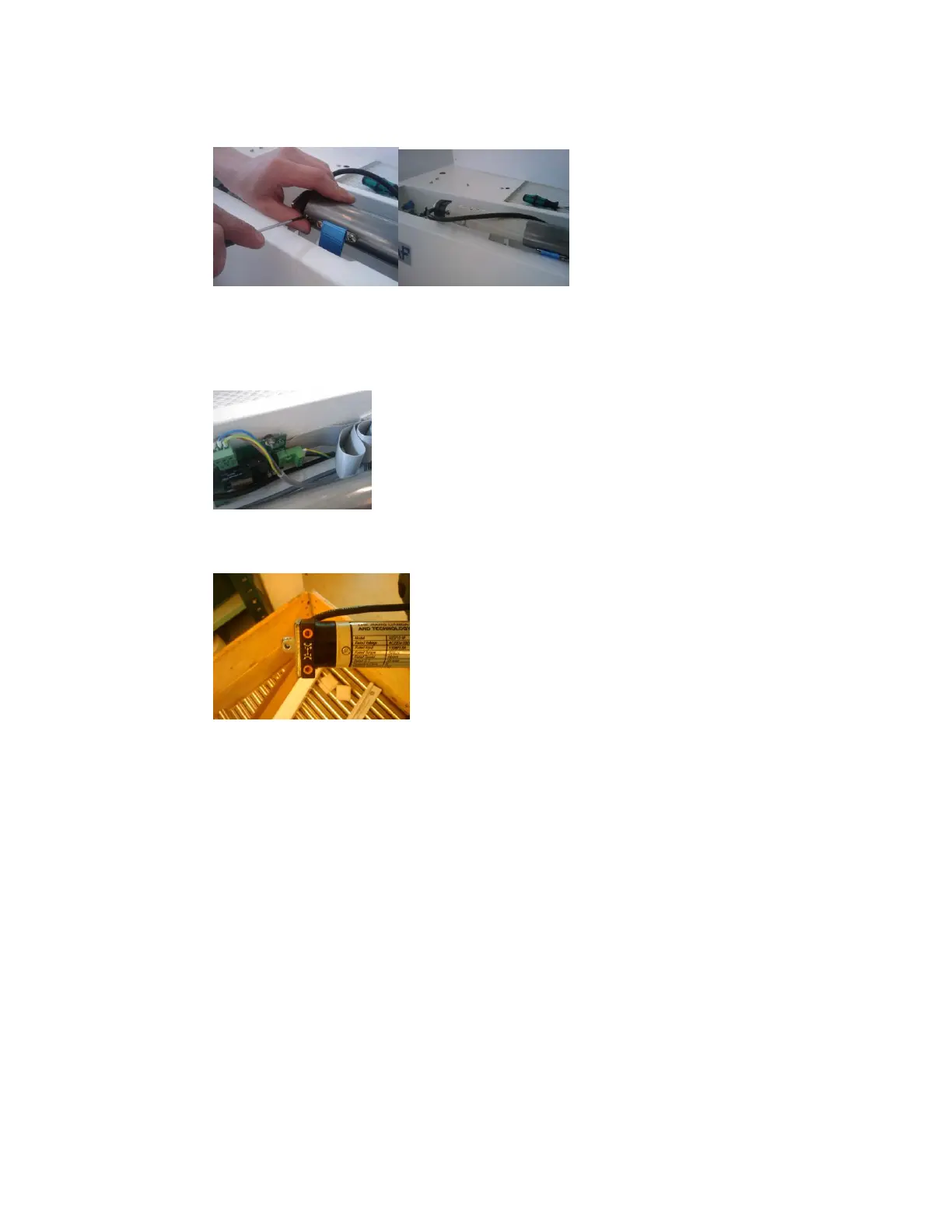

5: Undo small screw holding inner motor in place and slide out motor
6: Pull out plug connecting motor to window PCB, take new motor and reconnect wires as before, place new motor back
into casing and insert locating screw ( a new hole may have to be drilled for the screw, ensure that it is located opposite
where the wires enter the motor)
7: Reassemble and then reposition window using adjustment screws located at the end of the motor, the top one alters the
position of the window at its highest position and the bottom one alters the window at its lowest position
8: Replace top cover

LaboGene Mars Specifications

General

Temperature Range	Ambient +5°C to 70°C
Material (Internal)	Stainless Steel
Controller	Microprocessor-based PID controller
Display	LED
Material (External)	Powder coated steel
Safety Features	Over-temperature protection
Timer	99h 59min
Power Supply	230V, 50/60Hz
