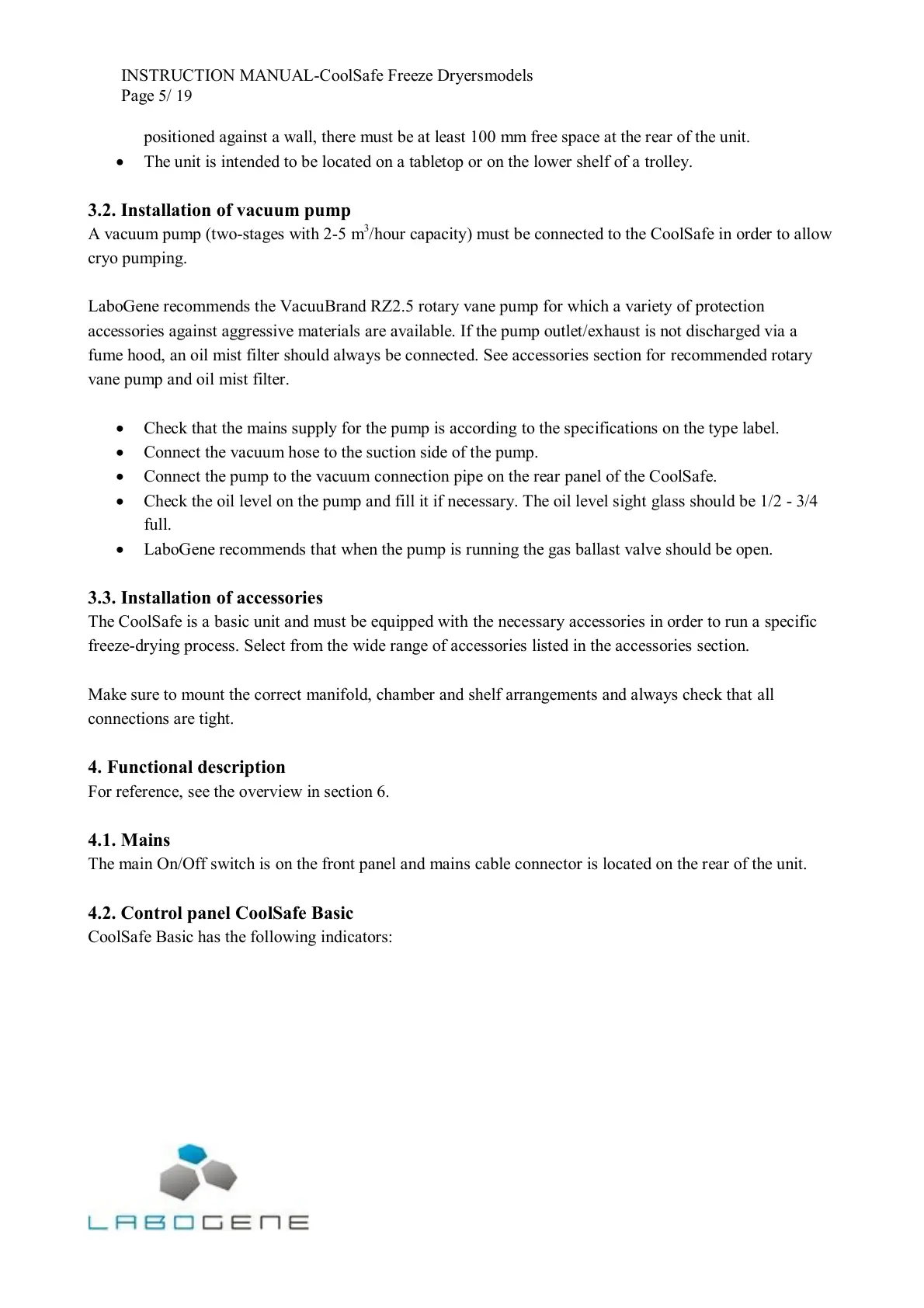

INSTRUCTION MANUAL-CoolSafe Freeze Dryersmodels
Page
5
/
19
positioned against a wall, there must be at least 100 mm free space at the rear of the unit.
The unit is intended to be located on a tabletop or on the lower shelf of a trolley.
3.2. Installation of vacuum pump
A vacuum pump (two-stages with 2-5 m
3
/hour capacity) must be connected to the CoolSafe in order to allow
cryo pumping.
LaboGene recommends the VacuuBrand RZ2.5 rotary vane pump for which a variety of protection
accessories against aggressive materials are available. If the pump outlet/exhaust is not discharged via a
fume hood, an oil mist filter should always be connected. See accessories section for recommended rotary
vane pump and oil mist filter.
Check that the mains supply for the pump is according to the specifications on the type label.
Connect the vacuum hose to the suction side of the pump.
Connect the pump to the vacuum connection pipe on the rear panel of the CoolSafe.
Check the oil level on the pump and fill it if necessary. The oil level sight glass should be 1/2 - 3/4
full.
LaboGene recommends that when the pump is running the gas ballast valve should be open.
3.3. Installation of accessories
The CoolSafe is a basic unit and must be equipped with the necessary accessories in order to run a specific
freeze-drying process. Select from the wide range of accessories listed in the accessories section.
Make sure to mount the correct manifold, chamber and shelf arrangements and always check that all
connections are tight.
4. Functional description
For reference, see the overview in section 6.
4.1. Mains
The main On/Off switch is on the front panel and mains cable connector is located on the rear of the unit.
4.2. Control panel CoolSafe Basic
CoolSafe Basic has the following indicators:
