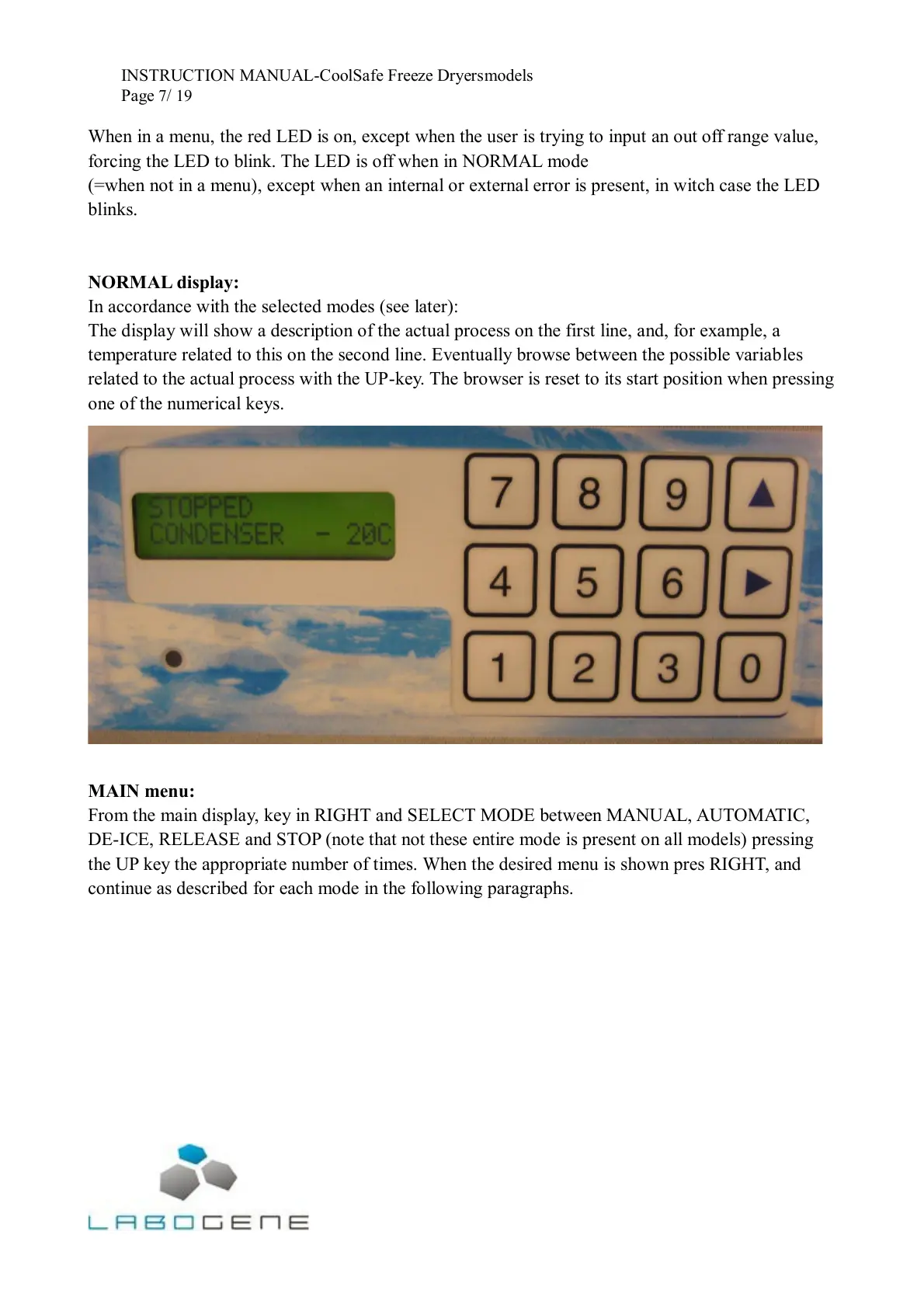

INSTRUCTION MANUAL-CoolSafe Freeze Dryersmodels
Page
7
/
19
When in a menu, the red LED is on, except when the user is trying to input an out off range value,
forcing the LED to blink. The LED is off when in NORMAL mode
(=when not in a menu), except when an internal or external error is present, in witch case the LED
blinks.
NORMAL display:
In accordance with the selected modes (see later):
The display will show a description of the actual process on the first line, and, for example, a
temperature related to this on the second line. Eventually browse between the possible variables
related to the actual process with the UP-key. The browser is reset to its start position when pressing
one of the numerical keys.
MAIN menu:
From the main display, key in RIGHT and SELECT MODE between MANUAL, AUTOMATIC,
DE-ICE, RELEASE and STOP (note that not these entire mode is present on all models) pressing
the UP key the appropriate number of times. When the desired menu is shown pres RIGHT, and
continue as described for each mode in the following paragraphs.
