Electronic
Speed Control
ADJUSTING THE ELECTRONIC SPEED CONTROL
1. Water-proof and dust-proof. The ESC can work under water for a short time.
(Please remove the cooling fan when running car in water, and after running, please
clean the ESC and then dry it to avoid the oxidation to copper connectors.)
2. Specially designed for RC car and truck, with excellent start-up, acceleration and
linearity features.
3. Drive sensorless brushless motors.
4. 2 running modes (“Forward with brake” mode, “Forward/Backward with brake” mode).
5. Proportional ABS brake function with 4 steps of maximum brake force adjustment and
8 steps of drag-brake force adjustment.
6. 4 start modes (“Punch”) from “Soft” to “Very aggressive” to be suitable for dierent
chassis, tires and tracks.
7. Multiple protection features: Low voltage cut-o protection for LiPo or NiMH battery /
Over-heat protection / Throttle signal loss protection / Motor blocked protection.
8. Easily programmed with the “SET” button on the ESC or with the LED Program Card.
Features
BEGIN TO USE THE NEW ESC

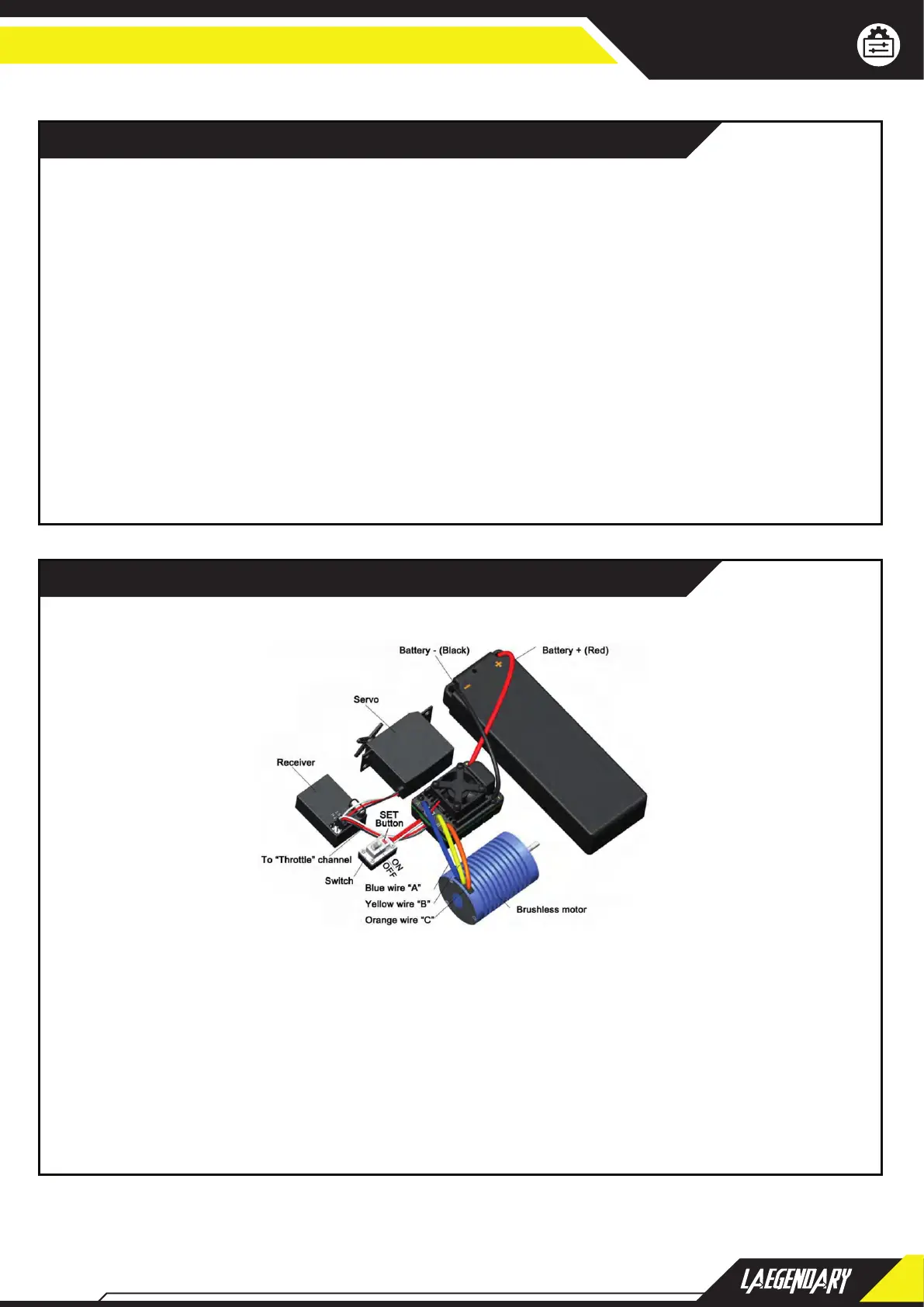

“+” and “-” wires of the ESC are connected with the battery pack, and #A, #B and #C are
connected with the motor wires. The “SET” button is used for programming the ESC.
The control cable of the ESC (trio wires with black, red and white color) is connected
with the throttle channel of the receiver (Usually CH2).
The #A, #B, #C wires of the ESC can be connected with the motor wires freely (without
any order). If the motor runs in the opposite direction, please swap any two wire
connections.
Note: You can use the transmitter to set the throttle channel to the “Reverse” direction,
and then the motor will run oppositely. Please calibrate the throttle range again after
changing the direction of throttle channel.
1. Connect the ESC, motor, receiver, battery and servo according to the following
diagram:
