3. Programmable Items
3.1. Running Mode: With “Forward with Brake” mode, the car can go forward and brake,
but cannot go backward, this mode is suitable for competition; “Forward/Reverse with
Brake” mode provides backward function, which is suitable for training.
Note: “Forward/Reverse with Brake” mode uses “Double-Click” method to make the car
go backward.
When you move the throttle stick from forward zone to backward zone for the first time,
the ESC begins to brake the motor, the motor speeds down but it is still running, not
completely stopped, so the backward action has NOT happened now. When the throttle
stick is moved to the backward zone again (The 2nd “click”), if the motor speed is
slowed down to zero (i.e. stopped), the backward action will be occurred.
The “Double-Click” method can prevent mistakenly reverse when the brake function is
frequently used in steering.
*Please refer to the Program the ESC page for instruction on how to change the Running
Mode.
3.2. How to Change the Running Mode:
1. Turn o the ESC (RC Car switch)
2. Turn on the transmitter
3. Press and hold the Set Key, then turn on the ESC. Check the ESC light indicator and
release the Set Key when you see the light flashes on your desired mode:
a. Red Light Flashes
b. Green Light Flashes 1-time
c. Red Light flashes (1 time) - Car is on Forward/Reverse with Brake Mode
d. Red Lights flashes (2 times) - Car is on Forward with Brake Mode
3.3. Drag Brake Force: Set the amount of drag brake applied at neutral throttle to
simulate the slight breaking eect of a neutral brushed motor while coasting.
3.4. Low Voltage Cut-O: The function is mainly used to prevent the Lipo battery from
over discharging. The ESC monitors the battery’s voltage at any time, if the voltage is
lower than the threshold, the output power will be reduced to 50% in 2 seconds. Please
drive to the side of racing track as soon as possible and then stop the car, the ESC will
completely cut o the output power in 10 seconds. The values listed in the table refer to
the cut-o threshold for each Lipo cell.

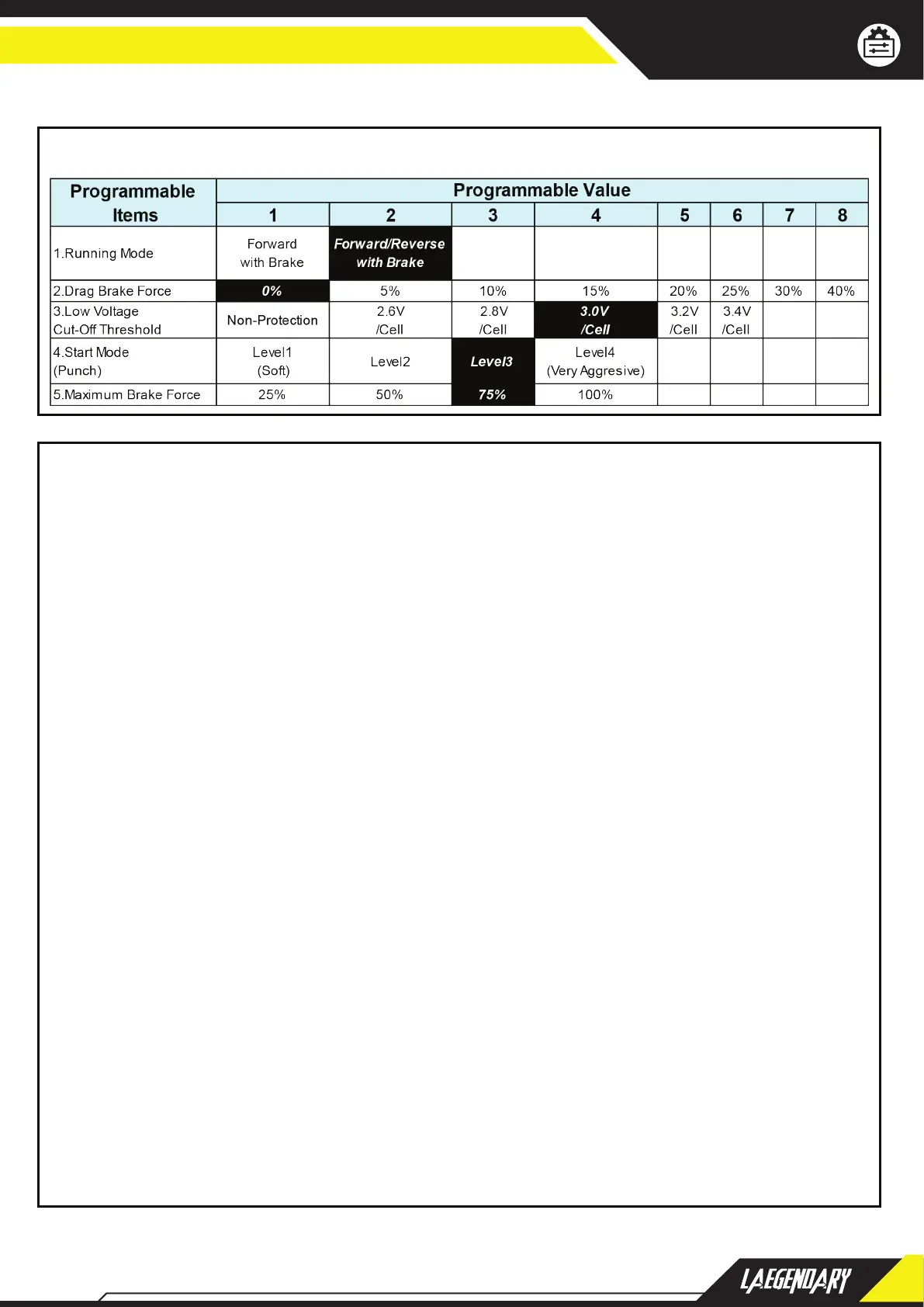

2. Programmable Items list
