Electronic
Speed Control
OPTIONAL ACCESSORIES
We provide the following optional accessories:

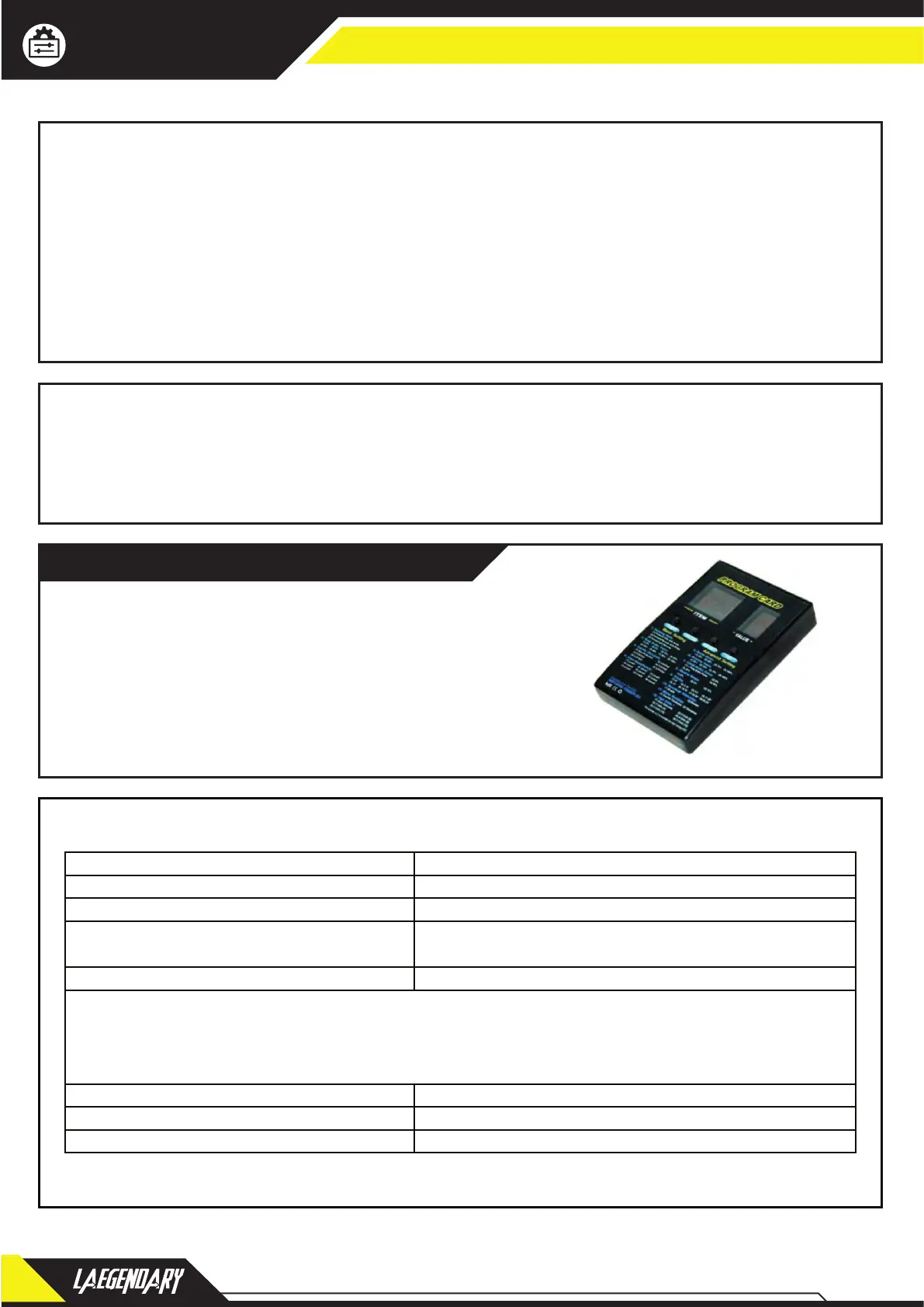

LED Program Card (Digital LED Display)
The LED Program Card is an optional accessory
which needs to be purchased separately.
It has a friendly user interface. The process of
programming the ESC becomes quite easy and
fast with this pocket sized device.
4. Reset All Items To Default Values
At any time when the throttle is located in neutral zone (except in the throttle calibration
or programming mode), hold the “SET” key for over 3 seconds, the red LED and green
LED will flash at the same time , which means each programmable item has been reset
to its default value. It needs to be restarted to complete the whole process.
3.5. Start Mode (Also called “Punch”): Select from “Level 1 (Soft)” to “Level 4 (Very
aggressive)” start mode as you like. Please note that if you choose “Level 4 (Very
aggressive)”, you should use good quality battery with powerful discharge ability,
otherwise you cannot get the bursting start eect as you want. If the motor cannot run
smoothly (that is: the motor is trembling), it may caused by the weak discharge ability
of the battery, please choose a better battery or increase the gear rate.
3.6. Maximum Brake Force: The ESC provides proportional brake function. The brake
force is related to the position of the throttle stick. Maximum brake force refers to the
force when the throttle stick is located at the top point of the backward zone. A very
large brake force can shorten the brake time, but it may damage the gears.
Cont./Burst:
Resistance:
Car Applicable:
Motor Limit: 2S LiPo 6 cells NiMH
3S LiPo 9 cells NiMH
Battery:
Rating Voltage of the Stock Cooling Fan (*Note 1) :
*The stock 5V cooling fan only works with 2S LiPo or 4-6 cells NiMH. When using 3S
LiPo or 7-9 cells NiMH, the stock 5V cooling fan MUST be replaced by 7.4V or 12V
cooling fan.
Built-in BEC:
Program Port:
Dimension/Weight:
50A/300A
0.0010 ohm
1/10 scale on-road and o-road
On-road: ≥8T O-road: ≥11T 3650 size motor
On-road: ≥11T O-road: ≥14T 3650 size motor
4-9 cells NiMH or 2-3S LiPo
7.4V
6V/2A
Multiplexed with cooling fan port
48.5*38*32 mm / 90g
Specifications
Note 1: Please remove the cooling fan when running the ESC in water.
