Microphone Plug

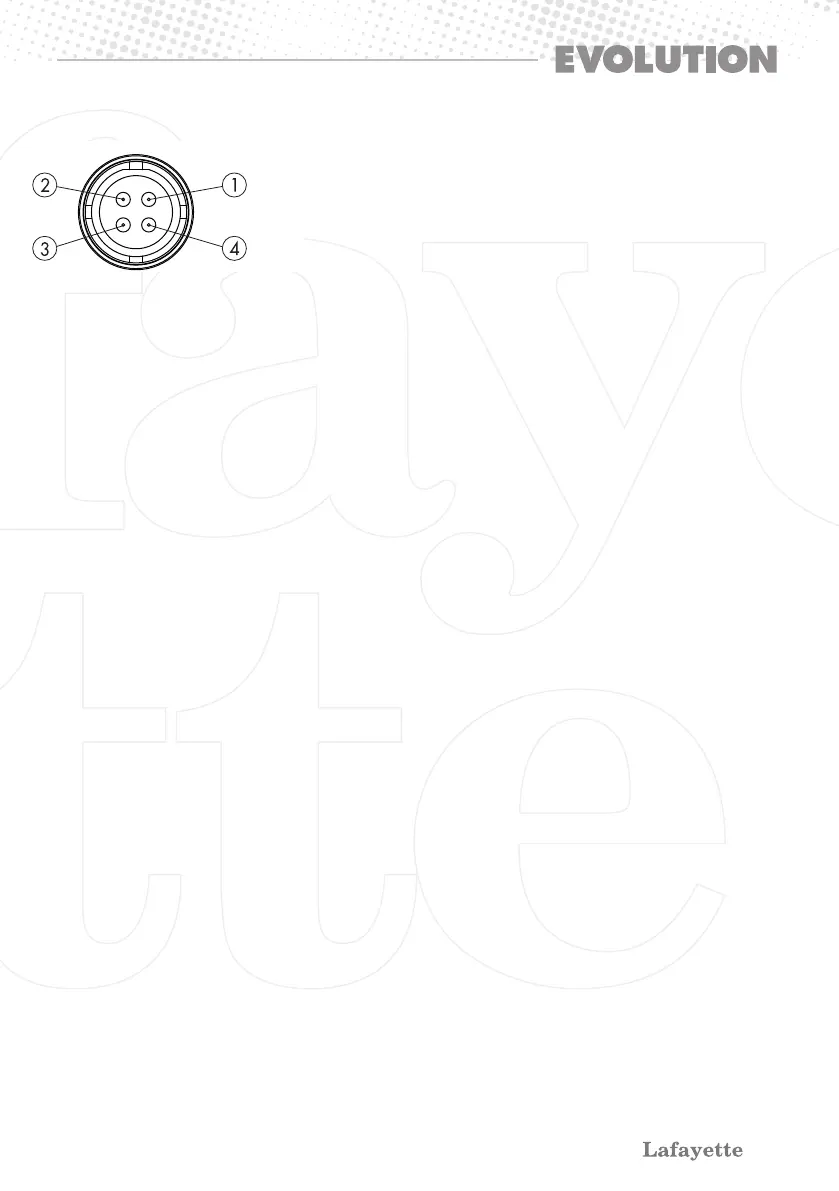

The 4-pin microphone connector (with locking ring), this con-
nects the handset to the microphone connector on the front
panel of the radio.
Pin 1: Modulation
Pin 2: Ground
Pin 3: Loud Speaker Ground
Pin 4: PTT (Push-to-talk)
